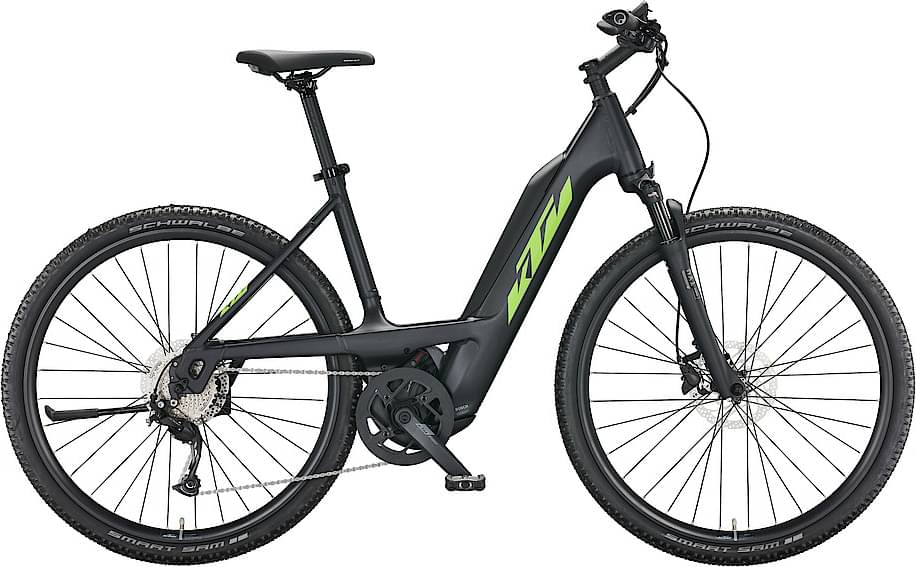

KTM MACINA CROSS 510 2022
2022 E-bike
Estimate price |
3,784$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Offroad Alloy6061; PT625Wh Bosch Gen.4 / T-0460
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Rear Derailleur
Shimano Alivio M3100-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival Sport 32H 622x25C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 160
Cockpit
Stem
KTM Comp 17°
Handlebar
KTM Comp low rizer 640mm
Headset
KTM Team Trekking 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.51 mm |
| Front Center | 631 mm | 644 mm | 656 mm | 674 mm |
| Rake | 37 mm | 36 mm | 36 mm | 37 mm |
| Trail | 88 mm | 89 mm | 89 mm | 88 mm |
| Stack | 574 mm | 591 mm | 607 mm | 625 mm |
| Reach | 389 mm | 397 mm | 403 mm | 414 mm |
| Top Tube Length | 567 mm | 580 mm | 591 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1069 mm | 1082 mm | 1094 mm | 1112 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 788 mm | 811 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA CROSS 510 is part of the Ktm E Macina Cross model. There are 21 e-bikes that carry this model name. You can easily view all of the Ktm E Macina Cross e-bikes models from 2022, here.
Model range prices
KTM MACINA CROSS A410 2022 is the most economical model, with a starting price of 2547$. KTM MACINA CROSS 710 2022 on the other hand costs 4671$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When KTM released this model in 2022, its price was 3503$. In conclusion, this e-bike price is 41.25% more expensive than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 22.5 kg (49.6 lbs), the MACINA CROSS 510 model is a bit lighter than average. To sum up, it’s 5.73% lighter than the average weight of Hybrid e-bikes.
MACINA CROSS 510 components
Fork
This e-bike has the Suntour fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on MACINA CROSS 510 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA CROSS 510 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
