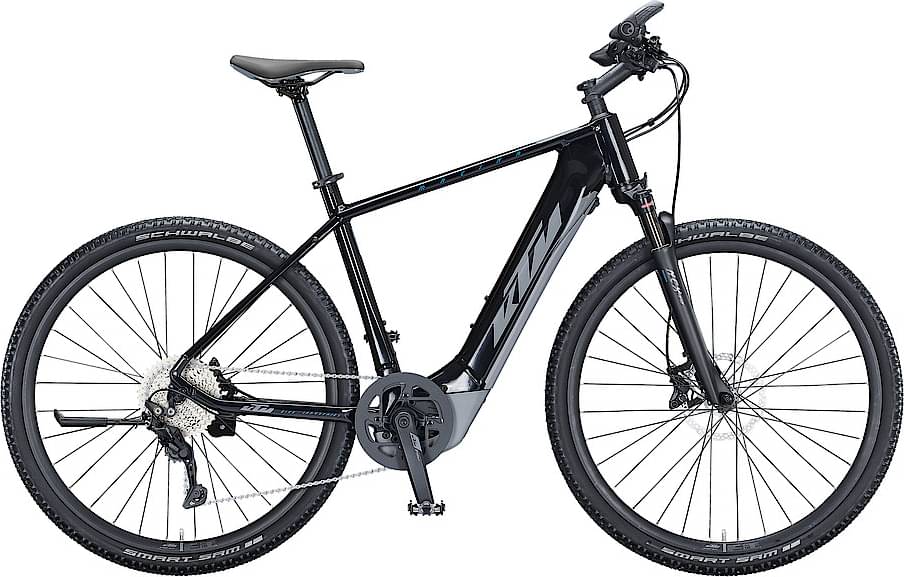

KTM MACINA CROSS 620 2021
2021 E-bike
Estimate price |
4,012$
Weight | 22.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Offroad Alloy6061; PT625Wh Bosch Gen.4 / T-0460
Suspension Fork
Suntour NCX-D coil LO 63mm
Drivetrain
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT54 CL 180 / 160
Cockpit
Stem
KTM Comp 17°
Handlebar
KTM Comp low rizer 640mm
Headset
KTM Team eTrekking 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Hybrid
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.51 mm |
| Front Center | 631 mm | 644 mm | 656 mm | 674 mm |
| Rake | 37 mm | 36 mm | 36 mm | 37 mm |
| Trail | 88 mm | 89 mm | 89 mm | 88 mm |
| Stack | 574 mm | 591 mm | 607 mm | 625 mm |
| Reach | 389 mm | 397 mm | 403 mm | 414 mm |
| Top Tube Length | 567 mm | 580 mm | 591 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1069 mm | 1082 mm | 1094 mm | 1112 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 788 mm | 811 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA CROSS 620 is a Ktm E Macina Cross model. KTM launched 21 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the KTM MACINA CROSS P510 Street 2021 has a starting price of 3025$. KTM MACINA CROSS 610 PTS 2021 on the other hand is the most expensive at 4299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, KTM MACINA CROSS 620 price was 3662$. Comparing this to the average Hybrid e-bike price, we see that the price is 47.66% more expensive.
Hybrid e-bikes average weight
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit lighter than average, MACINA CROSS 620 has a weight of 22.4 kg (49.38 lbs). In conclusion, the average Hybrid e-bike weighs 6.21% more than MACINA CROSS 620.
Overview of components
Fork
The fork installed on this bike is the SunTour NCX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the MACINA CROSS 620 e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA CROSS 620 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
KTM MACINA CROSS 620 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
