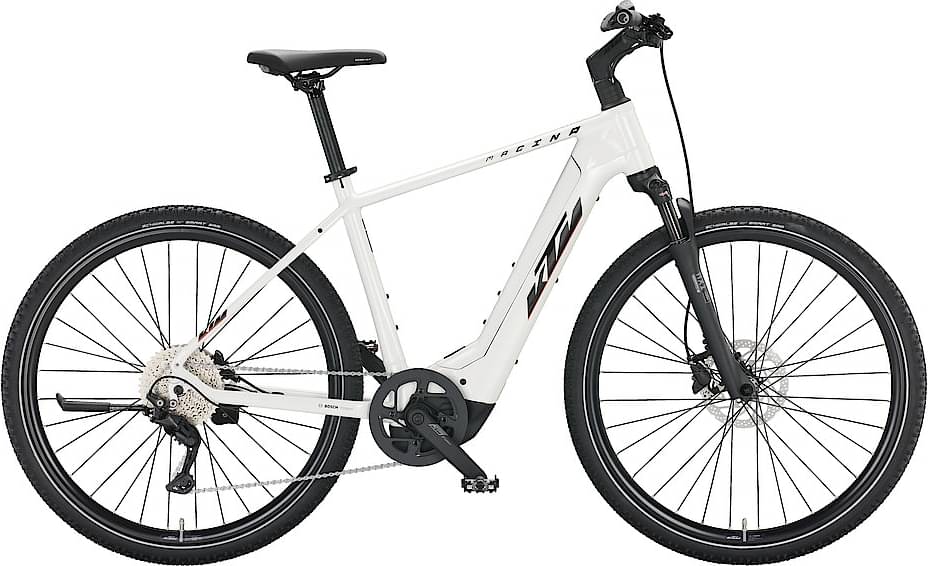

KTM MACINA CROSS 720 2022
2022 E-bike
Estimate price |
4,472$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Offroad Alloy6061; PT750Wh Bosch Gen.4 / T-2930
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Rear Derailleur
Shimano Deore M4120-10 SGS shadow
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival Sport 32H 622x25C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 160
Cockpit
Stem
KTM Line 20° internal
Handlebar
KTM Comp low rizer 640mm
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.55 mm | 1.56 mm |
| Front Center | 645 mm | 645 mm | 656 mm | 671 mm |
| Rake | 37 mm | 37 mm | 37 mm | 35 mm |
| Trail | 94 mm | 88 mm | 88 mm | 90 mm |
| Stack | 583 mm | 603 mm | 620 mm | 638 mm |
| Reach | 391 mm | 395 mm | 400 mm | 410 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1104 mm | 1104 mm | 1115 mm | 1130 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 774 mm | 808 mm | 840 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA CROSS 720 belongs to the Ktm E Macina Cross model. 21 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina Cross e-bikes models from 2022, here.
Model range prices
KTM MACINA CROSS A410 2022 is the most economical model, with a starting price of 2547$. KTM MACINA CROSS 710 2022 on the other hand costs 4671$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 4140$. Comparing the average cost of a Hybrid e-bike to this one, you will see that MACINA CROSS 720 price is 66.94% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
KTM MACINA CROSS 720 it’s weighing 23.4 kg (51.59 lbs). At this weight, is slightly lighter than average. To sum up, it’s 1.67% lighter than the average weight of Hybrid e-bikes.
MACINA CROSS 720 components
Fork
The fork installed on this bike is the Suntour model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, KTM MACINA CROSS 720 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA CROSS 720 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
