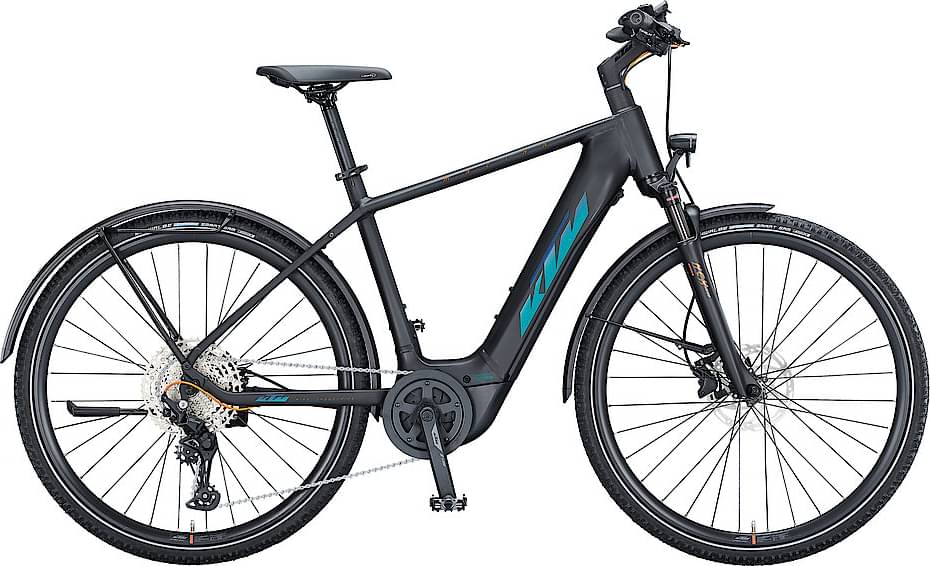

KTM MACINA CROSS LFC 2021
2021 E-bike
Estimate price |
4,012$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Offroad Alloy6061; PT625Wh Bosch Gen.3 / T-1160
Suspension Fork
Suntour NCX-D coil LO 63mm
Drivetrain
Shift Levers
Shimano Deore M5100-11 display
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-E390 2-Piston
Disk Rotors
Tektro TR-45 2.3mm CL 180 / 160
Cockpit
Stem
KTM Line 20° internal
Handlebar
KTM Comp low rizer 640mm
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle Royal Lookin Athletic
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.51 mm | 1.52 mm |
| Front Center | 636 mm | 647 mm | 657 mm | 672 mm |
| Rake | 37 mm | 36 mm | 36 mm | 36 mm |
| Trail | 88 mm | 89 mm | 89 mm | 89 mm |
| Stack | 576 mm | 592 mm | 609 mm | 627 mm |
| Reach | 393 mm | 399 mm | 403 mm | 413 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1096 mm | 1107 mm | 1117 mm | 1133 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 783 mm | 806 mm | 838 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA CROSS LFC completes the Ktm E Macina Cross model. There are 21 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
KTM MACINA CROSS P510 Street 2021 is the most affordable e-bike of this model and has a price of 3025$. On the other hand, KTM MACINA CROSS 610 PTS 2021, is the most expensive and costs 4299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When KTM released this model in 2021, its price was 3662$. Doing a quick comparison, we notice that MACINA CROSS LFC price is 47.66% more expensive than the average cost of a Hybrid e-bike.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 24.4 kg (53.79 lbs), the MACINA CROSS LFC model is slightly heavier than average. In short, the average Hybrid e-bike weight is 2.56% lower than this one.
MACINA CROSS LFC components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on MACINA CROSS LFC are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA CROSS LFC has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
