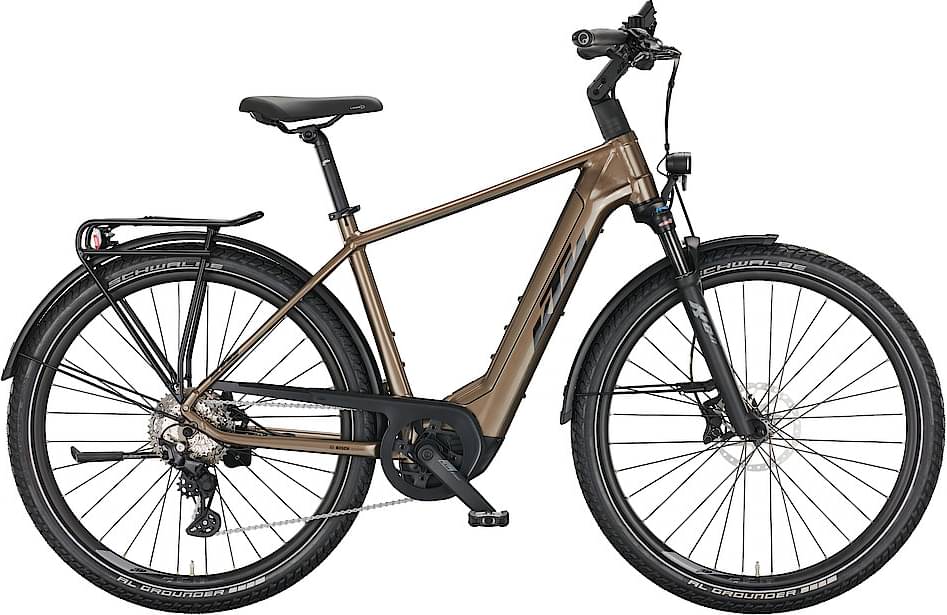

KTM MACINA GRAN 710 2022
2022 E-bike
Estimate price |
5,160$
Weight | 27.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 700c -
Travel Front 80mm -
Fork Suntour XCR 32
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Suspension Fork
Suntour XCR 32 ATB coil 29" LO 80mm
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Chain Guide
KTM type 7 for Bosch Gen.4
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival30 32L 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 180 / EM600 CL 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
Ergotec Lady Town GH16 630mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Line 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.59 mm | 1.6 mm |
| Front Center | 659 mm | 659 mm | 669 mm | 685 mm |
| Rake | 44 mm | 44 mm | 42 mm | 42 mm |
| Trail | 94 mm | 87 mm | 89 mm | 89 mm |
| Stack | 589 mm | 609 mm | 625 mm | 643 mm |
| Reach | 383 mm | 386 mm | 392 mm | 401 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1120 mm | 1120 mm | 1130 mm | 1146 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 768 mm | 804 mm | 848 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MACINA GRAN 710 completes the Ktm E Macina Gran model. KTM launched 12 e-bikes of this model so far. Take a sneak peek at all Ktm E Macina Gran e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the KTM MACINA GRAN P510 (US) 2022 has a starting price of 3503$. KTM MACINA GRAN 710 2022 on the other hand is the most expensive at 4777$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Urban e-bikes average price
If you want an acceptable General Urban e-bike you should know that the average price is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4777$. If we compare this with the average General Urban e-bike cost we notice that the price is 127.69% higher.
General Urban e-bikes average weight
If we make a quick analysis of the average weight of a General Urban e-bike, we get 24.08 kg (53.09 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, MACINA GRAN 710 has a weight of 27.7 kg (61.07 lbs). In conclusion, the average General Urban e-bike weighs 15.03% less than MACINA GRAN 710.
Overview of components
Fork
The MACINA GRAN 710 comes factory-installed with the Suntour XCR 32 fork. This has a travel range of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The MACINA GRAN 710 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA GRAN 710 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
MACINA GRAN 710 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
