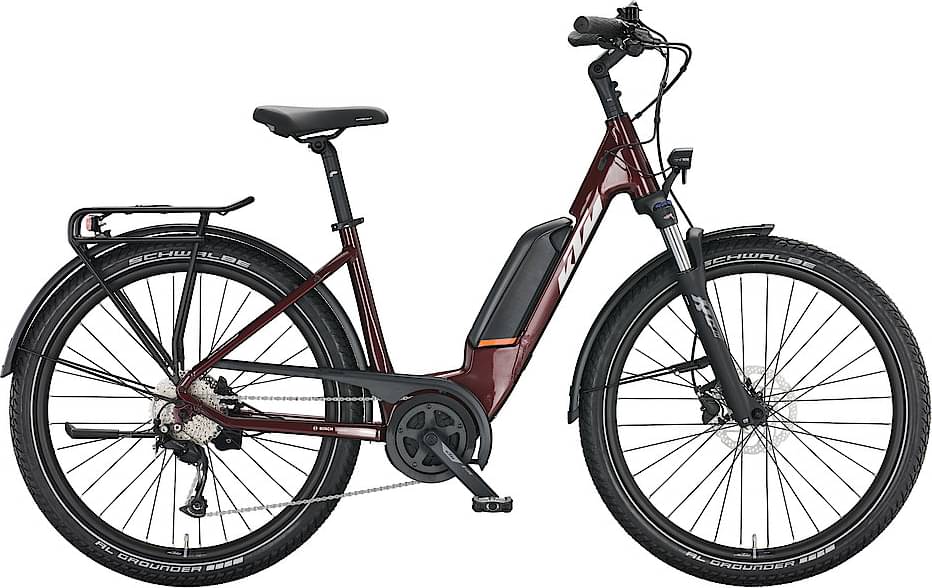

KTM MACINA GRAN P510 (US) 2022
2022 E-bike
Estimate price |
3,784$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Onroad 27.5" Alloy6061; Si-PP500Wh Bosch Gen.3 / T-1260
Suspension Fork
Suntour XCM 32 ATB coil 27.5" NLO 80mm taper
Drivetrain
Rear Derailleur
Shimano Alivio M3100-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Chain Guide
SKS Chainblade 42T
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 160
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
Ergotec Lady Town GH16 630mm
Headset
Ritchey Zero Logic Comp 1.1/8"-1.5"
Seat
Saddle
Selle Royal Essenza+
Seatpost
KTM Line 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerPACK 500Wh
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.67 mm | 1.68 mm | 1.66 mm |
| Front Center | 638 mm | 640 mm | 650 | 669 mm |
| Rake | 40 mm | 46 mm | 46 mm | 46 mm |
| Trail | 84 mm | 71 mm | 71 mm | 71 mm |
| Stack | 625 mm | 627 mm | 640 mm | 656 mm |
| Reach | 369 mm | 375 mm | 381 mm | 394 mm |
| Top Tube Length | 576 mm | 586 mm | 601 mm | 622 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1121 mm | 1123 mm | 1133 mm | 1152 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
MACINA GRAN P510 (US) is a Ktm E Macina Gran model. KTM launched 12 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the KTM MACINA GRAN P510 (US) 2022 has a starting price of 3503$. KTM MACINA GRAN 710 2022 on the other hand is the most expensive at 4777$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 3503$. Comparing the average cost of a General Urban e-bike to this one, you will see that MACINA GRAN P510 (US) price is 66.97% more expensive.
Average weight for General Urban e-bikes
General Urban e-bikes have an average weight of 24.08 kg (53.09 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 25.7 kg (56.66 lbs), KTM e-bike is a bit heavier than average. In short, the average General Urban e-bike weight is 6.73% lower than this one.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, KTM MACINA GRAN P510 (US) 2022, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA GRAN P510 (US) has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
KTM MACINA GRAN P510 (US) e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
