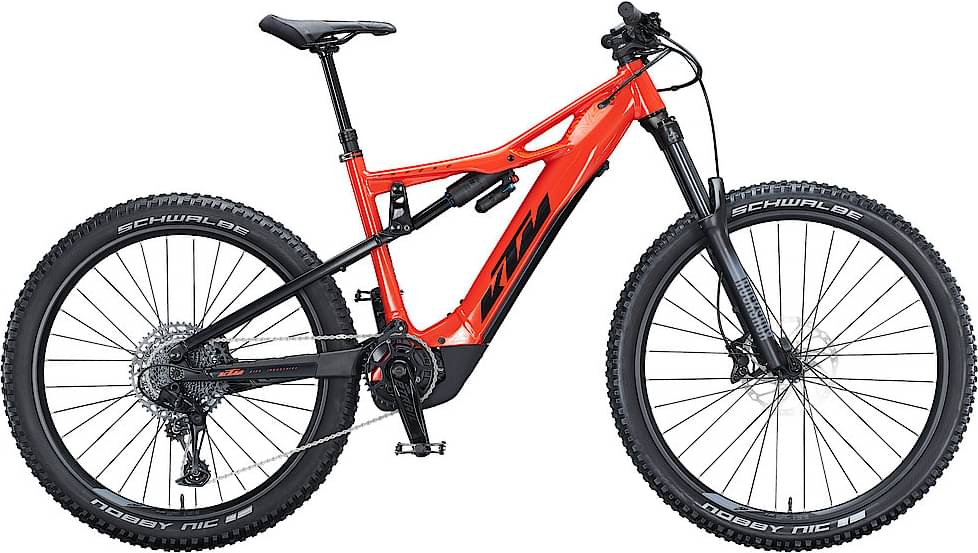

KTM MACINA KAPOHO 2973 2021
2021 E-bike
Estimate price |
5,059$
Weight | 25.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Alloy6061 SLL-LTE 160mm; PT625 Bosch Gen.4 / M-0166
Suspension Fork
RockShox 35 silver TK 29" 160mm 15x110
Rear Shock
Suntour Tri-Air 3CR 250x70
Drivetrain
Shift Levers
SRAM SX Eagle eClick 12
Cassette
SRAM SX Eagle PG-1210 / 11-50
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle 12s
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 203 / 180
Cockpit
Stem
KTM Team Trail35
Handlebar
KTM Comp Trail35 rizer15 780mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Italia X3 E-Bike flow
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 367 mm | 367 mm | 367 mm |
| Front Center | 764 mm | 786 mm | 819 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 603 mm | 612 mm | 626 mm |
| Reach | 440 mm | 458 mm | 485 mm |
| Top Tube Length | 586 mm | 606 mm | 636 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1202 mm | 1224 mm | 1257 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Standover Height | 800 mm | 803 mm | 808 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA KAPOHO 2973 completes the Ktm E Macina Kapoho model. There are 26 e-bikes that carry this model name. You can easily view all of the Ktm E Macina Kapoho e-bikes models from 2021, here.
Model range prices
KTM MACINA KAPOHO 2973 2021 is the most economical model, with a starting price of 4618$. KTM MACINA KAPOHO PRESTIGE 2021 on the other hand costs 8334$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2021 and its price was 4618$. In conclusion, this e-bike price is 3.62% smaller than the price of the average Enduro e-bike.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, MACINA KAPOHO 2973 has a weight of 25.8 kg (56.88 lbs). In other words, this model is 10.16% heavier than the average Enduro e-bike.
MACINA KAPOHO 2973 components
Fork
KTM MACINA KAPOHO 2973 2021 e-bike is equipped with the RockShox 35 Silver fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The MACINA KAPOHO 2973 has a rear shock with a travel of 160mm. The model Suntour Tri-Air 3CR 250×70 is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on MACINA KAPOHO 2973 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA KAPOHO 2973 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
MACINA KAPOHO 2973 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
KTM MACINA KAPOHO 2973 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
