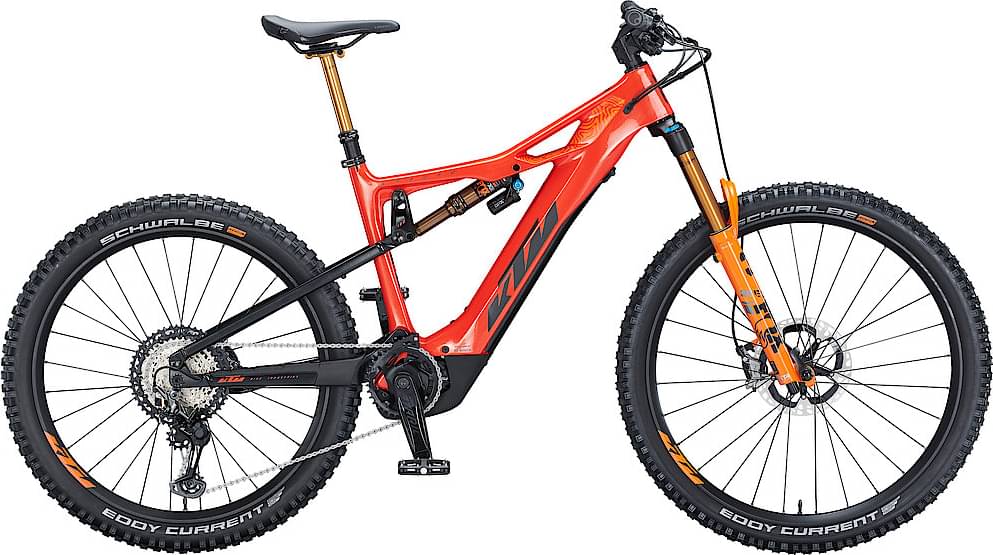

KTM MACINA KAPOHO PRESTIGE 2021
2021 E-bike
Estimate price |
9,131$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Performance Carbon SLL-LTE 160mm; PT625 Bosch Gen.4 / M-0146
Suspension Fork
FOX 36 Float 29" Factory e-bike 160mm (kashima) FIT4
Rear Shock
FOX Float DPX2 Factory 3Position 250x70
Drivetrain
Shift Levers
Shimano XTR M9100-12
Cassette
Shimano Deore XT M8100-12 / 10-51
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano Deore XT M8100-12
Wheels
Rims
KTM E-Prime Trail 29 CL 110-15TA / 622x30TC TLR made by DT Swiss
Brakes
Brakes
Shimano XTR M9100 / M9120 4-Piston
Disk Rotors
Shimano MT900 CL 203 / 180 Freeza
Cockpit
Stem
KTM Team Trail35 Kiox
Handlebar
KTM Prime Trail35 Carbon rizer20 800mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
Ergon SM10 E-Mountain
Seatpost
FOX Transfer Factory internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch KIOX TFT Display with Remote
Charger
Bosch FAST Charger 6A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm |
| Front Center | 774 mm | 796 mm | 829 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 125 mm | 126 mm | 126 mm |
| Stack | 601 mm | 610 mm | 623 mm |
| Reach | 443 mm | 461 mm | 488 mm |
| Top Tube Length | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1212 mm | 1234 mm | 1267 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm |
| Standover Height | 792 mm | 794 mm | 801 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA KAPOHO PRESTIGE belongs to the Ktm E Macina Kapoho model. 26 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the KTM MACINA KAPOHO 2973 2021 has a starting price of 4618$. KTM MACINA KAPOHO PRESTIGE 2021 on the other hand is the most expensive at 8334$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When KTM released this model in 2021, its price was 8334$. If we compare this with the average Enduro e-bike cost we notice that the price is 74.17% more expensive.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
MACINA KAPOHO PRESTIGE weighs 24.3 kg (53.57 lbs) and is slightly heavier than the average. In conclusion, the average Enduro e-bike weighs 3.76% less than MACINA KAPOHO PRESTIGE.
MACINA KAPOHO PRESTIGE components
Fork
KTM MACINA KAPOHO PRESTIGE 2021 e-bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The MACINA KAPOHO PRESTIGE has a rear shock with a travel of 160mm. The model FOX Float DPX2 Factory 3Position 250×70 is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, KTM MACINA KAPOHO PRESTIGE 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA KAPOHO PRESTIGE comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
KTM MACINA KAPOHO PRESTIGE includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
