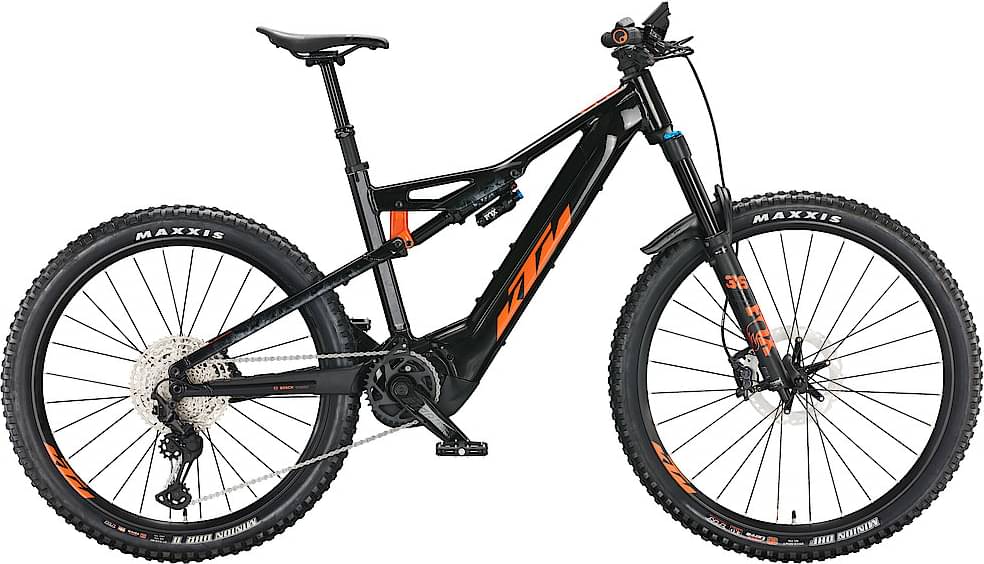

KTM MACINA KAPOHO 7971 2022
2022 E-bike
Estimate price |
7,683$
Weight | 27.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Alloy6061 SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2266
Suspension Fork
FOX 36 Float 29" Performance e-bike 160mm
Rear Shock
FOX Float X Performance 250x70
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Chain Guide
Upper slider
Pedals
VP-539 nylon flat
Wheels
Front Hub
KTM E-Comp Trail wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rear Hub
KTM E-Comp Trail wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rims
KTM E-Comp Trail 29 CL 110/15TA / 622x30TC made by DT Swiss
Spokes
KTM E-Comp Trail wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 27.5" x 2.8"
Brakes
Brakes
Shimano Deore XT M8100 / M8120 4-Piston
Brake Levers
Shimano Deore XT M8100
Disk Rotors
Shimano MT800 CL 203 / EM810 CL 180 freeza
Cockpit
Stem
KTM Team Trail35
Handlebar
KTM Team Trail35 rizer25 800mm
Grips
Ergon GE10 Evo ergonomic
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle San Marco GND Supercomfort
Seatpost
FOX Transfer Performance internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 367 mm | 367 mm | 367 mm |
| Front Center | 764 mm | 786 mm | 809 mm |
| Rake | 49 mm | 48 mm | 46 mm |
| Trail | 113 mm | 114 mm | 116 mm |
| Stack | 603 mm | 612 mm | 626 mm |
| Reach | 439 mm | 458 mm | 477 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1202 mm | 1224 mm | 1247 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Standover Height | 799 mm | 801 mm | 803 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA KAPOHO 7971 is part of the Ktm E Macina Kapoho model. KTM launched 26 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the KTM MACINA KAPOHO 6971 LTD 2022 has a starting price of 5308$. KTM MACINA KAPOHO PRESTIGE 2022 on the other hand is the most expensive at 8812$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, KTM MACINA KAPOHO 7971 price was 7113$. In conclusion, this e-bike price is 48.65% more expensive than the price of the average Enduro e-bike.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
MACINA KAPOHO 7971 weighs 27.4 kg (60.41 lbs) and is much heavier than the average. To sum up, it’s 16.99% heavier than the average weight of Enduro e-bikes.
MACINA KAPOHO 7971 components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX Float X Performance 250×70 rear shock model, which has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the MACINA KAPOHO 7971 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
KTM MACINA KAPOHO 7971 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
