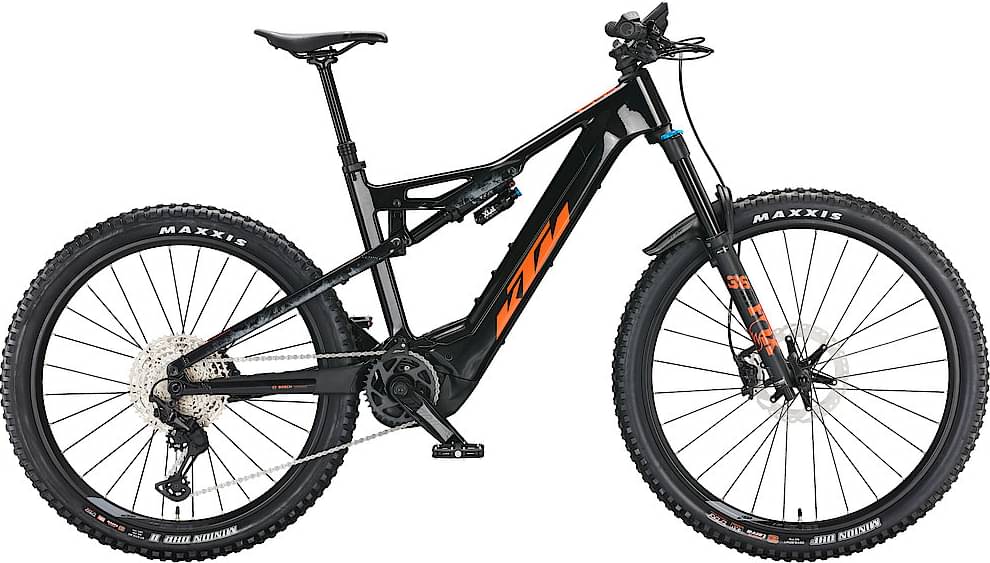

KTM MACINA KAPOHO MASTER 2022
2022 E-bike
Estimate price |
7,913$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Perf. Carbon SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2246
Suspension Fork
FOX 36 Float 29" Performance e-bike 160mm
Rear Shock
FOX Float X Performance 250x70
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Chain Guide
Upper slider
Pedals
VP-539 nylon flat
Wheels
Front Hub
KTM Line wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rear Hub
KTM Line wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rims
KTM Line
Spokes
KTM Line wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 27.5" x 2.8"
Brakes
Brakes
Shimano Deore XT M8100 / M8120 4-Piston
Brake Levers
Shimano Deore XT M8100
Disk Rotors
Shimano MT800 CL 203 / EM810 CL 180 freeza
Cockpit
Stem
KTM Team Trail35
Handlebar
KTM Team Trail35 rizer25 800mm
Grips
Ergon GE10 Evo ergonomic
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle San Marco GND Supercomfort
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.31 mm |
| Front Center | 772 mm | 794 mm | 817 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 125 mm | 126 mm | 126 mm |
| Stack | 599 mm | 608 mm | 622 mm |
| Reach | 441 mm | 459 mm | 476 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1210 mm | 1232 mm | 1255 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Standover Height | 792 mm | 795 mm | 797 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA KAPOHO MASTER belongs to the Ktm E Macina Kapoho model. There are 26 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA KAPOHO 6971 LTD 2022 is the cheapest e-bike model and costs 5308$. KTM MACINA KAPOHO PRESTIGE 2022 is the most expensive one and costs 8812$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7325$. If we compare this with the average Enduro e-bike cost we notice that the price is 53.08% higher.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
KTM MACINA KAPOHO MASTER it’s weighing 25.3 kg (55.78 lbs). At this weight, is a bit heavier than average. In conclusion, the average Enduro e-bike weighs 8.03% less than MACINA KAPOHO MASTER.
MACINA KAPOHO MASTER components
Fork
KTM MACINA KAPOHO MASTER 2022 e-bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float X Performance 250×70 rear shock model, which has a travel of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The MACINA KAPOHO MASTER 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA KAPOHO MASTER has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
KTM MACINA KAPOHO MASTER comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
