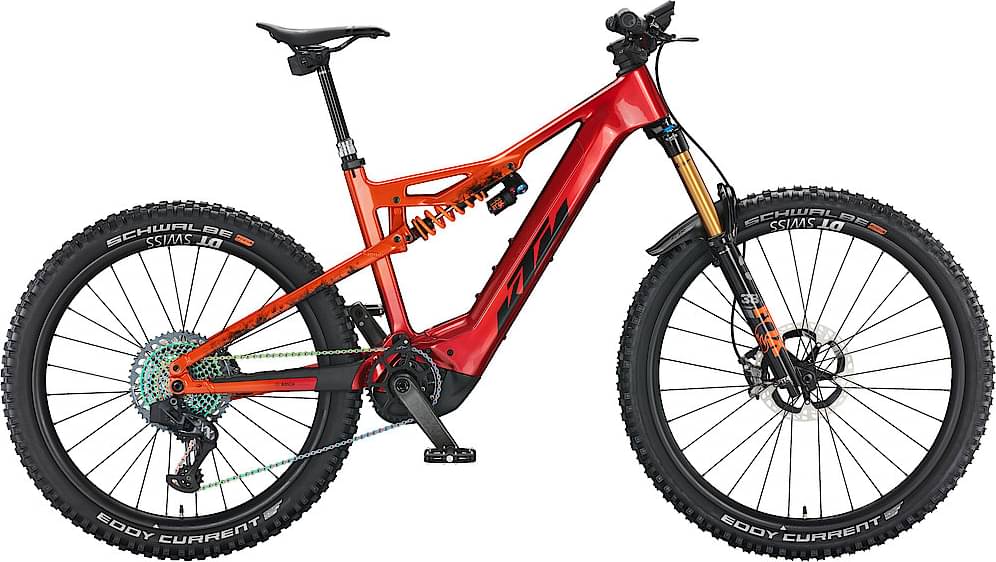

KTM MACINA PROWLER EXONIC 2022
2022 E-bike
Estimate price |
12,271$
Weight | 25.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle AXS, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236
Suspension Fork
FOX 38 Float 29" Factory e-bike 180mm FIT4
Rear Shock
FOX DHX2 Factory 2Position 250x75
Drivetrain
Rear Derailleur
SRAM XX Eagle SL AXS 12speed
Shift Levers
SRAM Eagle AXS Rocker Paddle
Cassette
SRAM XX1 Eagle XG-1299 / 10-52 rainbow
Crank
FSA CK-702/IS Carbon 160mm
Bottom Bracket
Bosch, press-fit
Chain
SRAM XX1 Eagle 12s
Wheels
Rims
DT Swiss HXC 1501 SPLINE 29 CL 110/15TA / 622x30TSS
Brakes
Brakes
Shimano XTR M9100 / M9120 4-Piston
Disk Rotors
Shimano MT900 CL 203 / 180 Freeza
Cockpit
Stem
KTM Team Trail35
Handlebar
KTM Prime Trail35 Carbon rizer20 800mm
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle San Marco GND Open Fit Supercomfort Manganese Rails
Seatpost
RockShox Reverb AXS wireless
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 377 mm | 377 mm | 377 mm |
| Front Center | 784 mm | 806 mm | 829 mm |
| Rake | 47 mm | 46 mm | 45 mm |
| Trail | 130 mm | 131 mm | 133 mm |
| Stack | 608 mm | 618 mm | 632 mm |
| Reach | 428 mm | 446 mm | 463 mm |
| Top Tube Length | 589 mm | 609 mm | 629 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1222 mm | 1244 mm | 1267 mm |
| Bottom Bracket Drop | -3 mm | -3 mm | -3 mm |
| Standover Height | 812 mm | 814 mm | 816 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA PROWLER EXONIC completes the Ktm E Macina Prowler model. 14 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the KTM MACINA PROWLER PRO 2022 has a starting price of 6476$. KTM MACINA PROWLER EXONIC 2022 on the other hand is the most expensive at 11360$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, KTM MACINA PROWLER EXONIC price was 11360$. Doing a quick comparison, we notice that MACINA PROWLER EXONIC price is 137.41% more expensive than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 25.2 kg (55.56 lbs), KTM e-bike is a bit heavier than average. In conclusion, the average Enduro e-bike weighs 7.6% less than MACINA PROWLER EXONIC.
Overview of components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX DHX2 Factory 2Position 250×75 model, with a travel of 170mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, KTM MACINA PROWLER EXONIC 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
KTM MACINA PROWLER EXONIC e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
