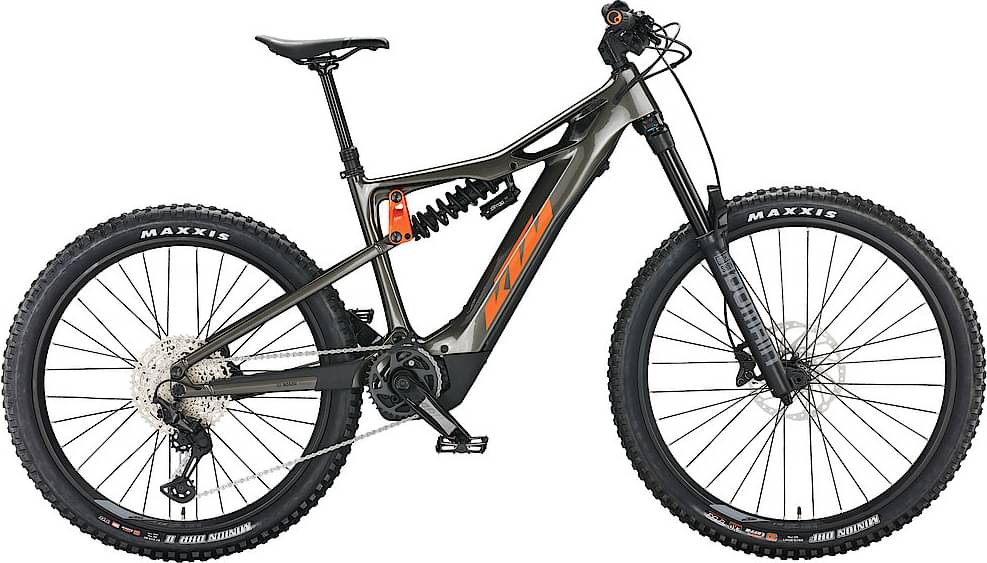

KTM MACINA PROWLER PRO 2022
2022 E-bike
Estimate price |
6,995$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm; PT625 Bosch Gen.4 / M-0136
Suspension Fork
RockShox Domain RC 29" 180mm
Rear Shock
RockShox SuperDeluxe coil Select+ 250x75
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 203 / EM600 CL 180
Cockpit
Stem
KTM Team Trail35 Kiox
Handlebar
KTM Team Trail35 rizer25 800mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco GND Supercomfort
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch KIOX TFT Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 378 mm | 378 mm | 378 mm |
| Front Center | 778 mm | 800 mm | 833 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 125 mm | 126 mm | 126 mm |
| Stack | 603 mm | 612 mm | 626 mm |
| Reach | 440 mm | 458 mm | 485 mm |
| Top Tube Length | 586 mm | 606 mm | 636 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1216 mm | 1238 mm | 1271 mm |
| Bottom Bracket Drop | -4 mm | -4 mm | -4 mm |
| Standover Height | 797 mm | 800 mm | 804 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA PROWLER PRO is a Ktm E Macina Prowler model. There are 14 e-bikes that carry this model name. Take a sneak peek at all Ktm E Macina Prowler e-bikes models from 2022, by clicking here.
Model range prices
KTM MACINA PROWLER PRO 2022 is the cheapest e-bike model and costs 6476$. KTM MACINA PROWLER EXONIC 2022 is the most expensive one and costs 11360$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, KTM MACINA PROWLER PRO price was 6476$. Comparing the average cost of an Enduro e-bike to this one, you will see that MACINA PROWLER PRO price is 35.34% more expensive.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
MACINA PROWLER PRO weighs 25.4 kg (56 lbs) and is a bit heavier than the average. In conclusion, the average Enduro e-bike weighs 8.45% less than MACINA PROWLER PRO.
MACINA PROWLER PRO components
Fork
The RockShox Domain is included from the factory. It has a travel distance of 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox SuperDeluxe coil Select+ 250×75, with a travel distance of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The MACINA PROWLER PRO 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA PROWLER PRO comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
KTM MACINA PROWLER PRO comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
