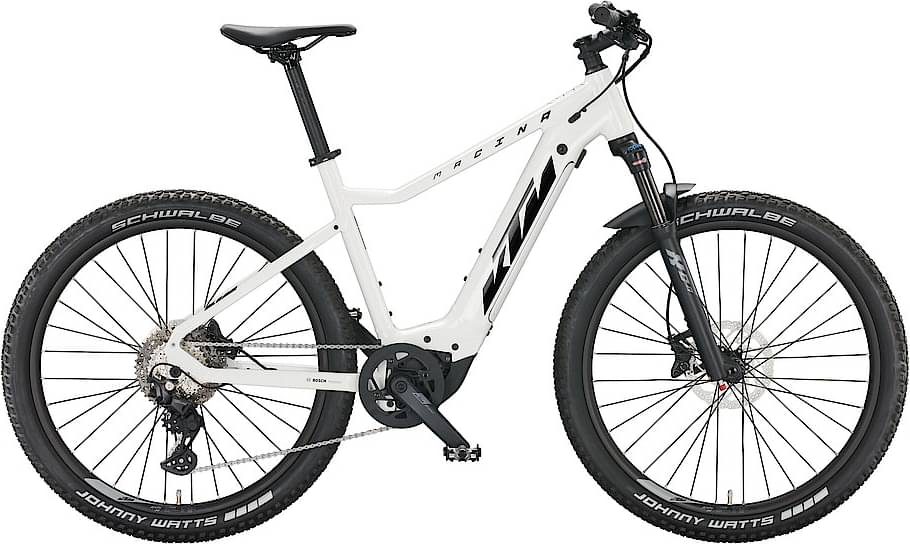

KTM MACINA RACE 571 2022
2022 E-bike
Estimate price |
4,128$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 27.5" Alloy6061; PT500Wh Bosch Gen.4 / M-1776
Suspension Fork
Suntour XCR 34 Air 27.5" LOR 100mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT401 / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 700mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.508 mm | 1.514 mm | 1.48 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm |
| Front Center | 637 mm | 637 mm | 657 mm |
| Rake | 35 mm | 40 mm | 39 mm |
| Trail | 99 mm | 87 mm | 88 mm |
| Stack | 588 mm | 595 mm | 607 mm |
| Reach | 390 mm | 393 mm | 410 mm |
| Top Tube Length | 570 mm | 575 mm | 595 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1078 mm | 1078 mm | 1098 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 732 mm | 736 mm | 752 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
MACINA RACE 571 completes the Ktm E Macina Race model. 12 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina Race e-bikes models from 2022, here.
Model range prices
KTM MACINA RACE 592 2022 is the most affordable e-bike of this model and has a price of 3397$. On the other hand, KTM MACINA RACE 571 2022, is the most expensive and costs 3821$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 3821$. In conclusion, this e-bike price is 55.77% higher than the price of the average Crosscountry e-bike.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
KTM MACINA RACE 571 it’s weighing 22.5 kg (49.6 lbs). At this weight, is slightly lighter than average. To sum up, it’s 3.16% lighter than the average weight of Crosscountry e-bikes.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR 34 model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the MACINA RACE 571 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA RACE 571 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
