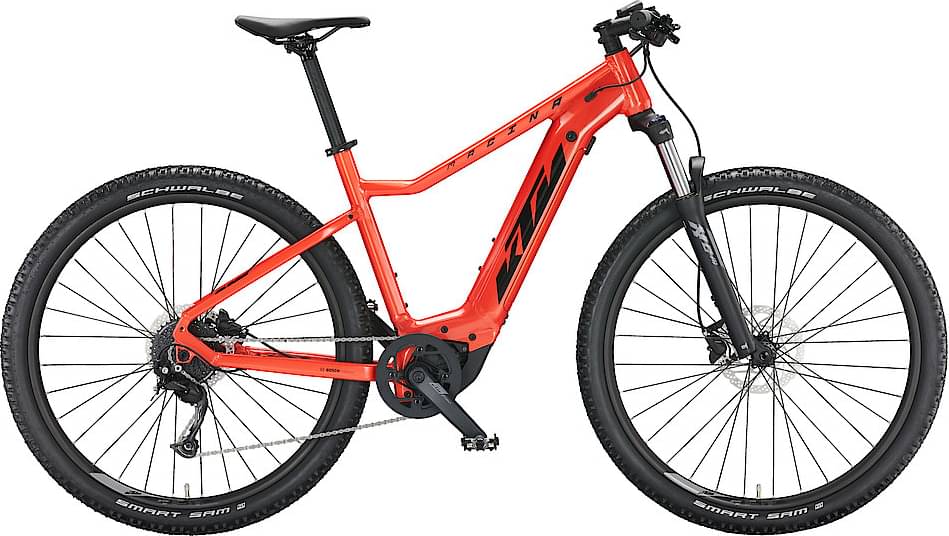

KTM MACINA RACE 592 2022
2022 E-bike
Estimate price |
3,669$
Weight | 22.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT500Wh Bosch Gen.4 / M-1766
Suspension Fork
Suntour XCM 34 coil 29" NLO 100mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Alivio M3100-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp flat 2X 720mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.48 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 638 mm | 653 mm | 673 mm |
| Rake | 35 mm | 40 mm | 39 mm |
| Trail | 99 mm | 87 mm | 88 mm |
| Stack | 614 mm | 621 mm | 632 mm |
| Reach | 392 mm | 410 mm | 427 mm |
| Top Tube Length | 581 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1092 mm | 1107 mm | 1127 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 741 mm | 757 mm | 788 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA RACE 592 is a Ktm E Macina Race model. KTM released 12 e-bikes variations of this model so far. Take a sneak peek at all Ktm E Macina Race e-bikes models from 2022, by clicking here.
Model range prices
KTM MACINA RACE 592 2022 is the most affordable e-bike of this model and has a price of 3397$. On the other hand, KTM MACINA RACE 571 2022, is the most expensive and costs 3821$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When KTM released this model in 2022, its price was 3397$. In conclusion, this e-bike price is 38.48% higher than the price of the average Crosscountry e-bike.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 22.8 kg (50.27 lbs), KTM e-bike is slightly lighter than average. In conclusion, the average Crosscountry e-bike weighs 1.8% more than MACINA RACE 592.
MACINA RACE 592 components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on MACINA RACE 592 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
KTM MACINA RACE 592 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
