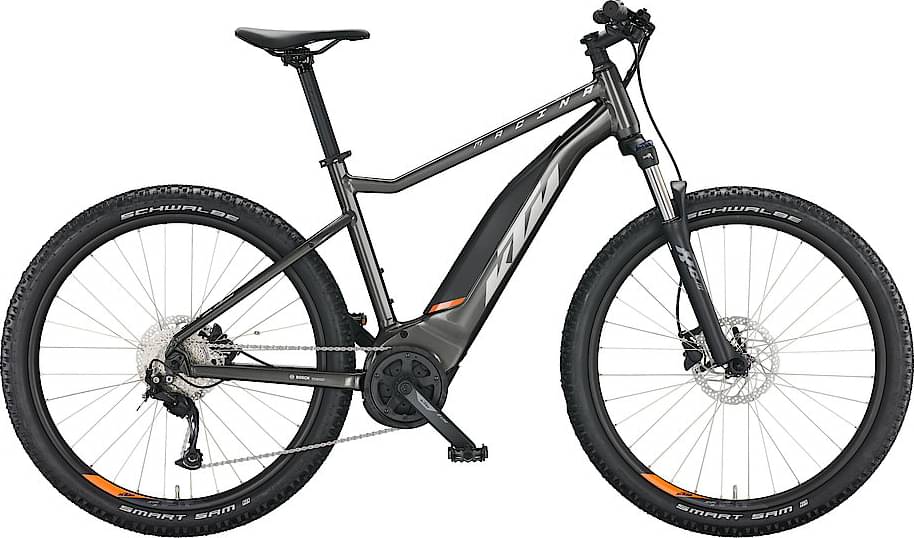

KTM MACINA RIDE 571 2022
2022 E-bike
Estimate price |
3,325$
Weight | 22.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM HLO
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 27.5" Alloy6061; UC-PP500Wh Bosch Gen.3 / M-9690
Suspension Fork
Suntour XCM coil 27.5" HLO 100mm
Drivetrain
Rear Derailleur
Shimano Alivio M3100-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Wheels
Rims
KTM Line - Shimano Acera M3050 CL 32H 100-5QR / Ryde Rival23 32H 584x23C / DT Champion 2.0 silver
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / RT30 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 680mm
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch ACTIVE PLUS Gen.3 - 25km/h / 50Nm
Battery
Bosch PowerPACK 500Wh
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.595 mm | 1.567 mm | 1.528 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm |
| Front Center | 636 mm | 638 mm | 659 mm |
| Rake | 37 mm | 42 mm | 42 mm |
| Trail | 97 mm | 85 mm | 85 mm |
| Stack | 606 mm | 608 mm | 619 mm |
| Reach | 380 mm | 388 mm | 405 mm |
| Top Tube Length | 566 mm | 574 mm | 594 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 125 mm | 137 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1092 mm | 1094 mm | 1115 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 763 mm | 770 mm | 792 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
MACINA RIDE 571 completes the Ktm E Macina Ride model. 9 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA RIDE 491 2022 is the cheapest e-bike model and costs 2653$. KTM MACINA RIDE 591 LTD 2022 is the most expensive one and costs 3078$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 3078$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that MACINA RIDE 571 price is 25.48% higher.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 22.2 kg (48.94 lbs), the MACINA RIDE 571 model is slightly lighter than average. In conclusion, the average Crosscountry e-bike weighs 4.55% more than MACINA RIDE 571.
MACINA RIDE 571 components
Fork
The Suntour XCM HLO is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The MACINA RIDE 571 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
MACINA RIDE 571 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
