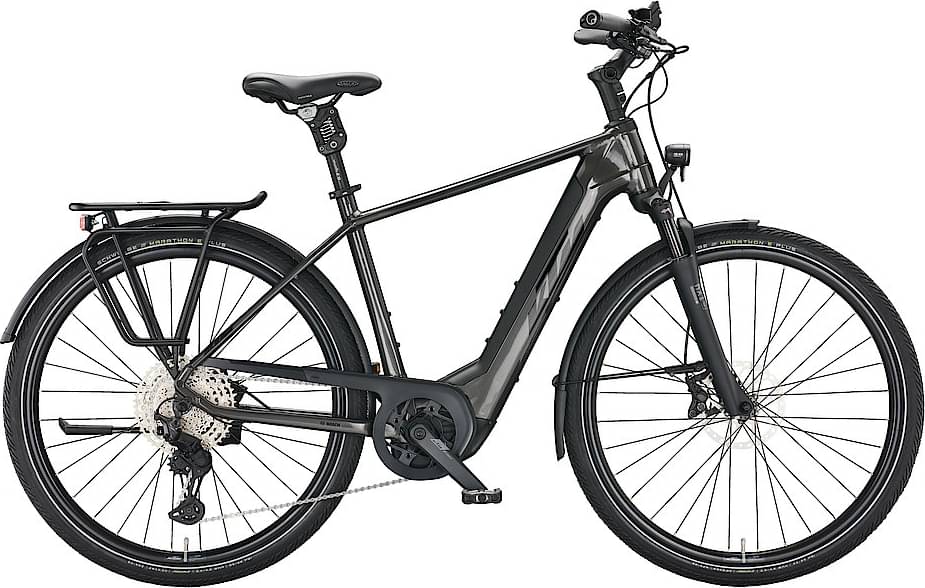

KTM MACINA STYLE XL 2022
2022 E-bike
Estimate price |
5,504$
Weight | 28.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Suspension Fork
Suntour NX1 coil LO 63mm (HD)
Drivetrain
Rear Derailleur
Shimano Deore XT M8130-11 LG shadow+
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG600-11 / 11-50
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Chain Guide
KTM type 7 for Bosch Gen.4
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 36H 100-5QR / Ryde Andra29 36H 622x29C / DT Alpine II 2.34 black
Brakes
Brakes
Tektro TKD-139 / HD-E730 4-Piston
Disk Rotors
Tektro TR-45 2.3mm CL 180 / 180
Cockpit
Stem
Ergotec Swell RE70 adjust.
Handlebar
Ergotec Lady Town GH16 630mm
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle Royal Viaggio HRC
Seatpost
bySchulz G.2 ST suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.54 mm |
| Front Center | 645 mm | 645 mm | 656 mm | 671 mm | 692 mm |
| Rake | 37 mm | 37 mm | 37 mm | 35 mm | 36 mm |
| Trail | 94 mm | 88 mm | 88 mm | 90 mm | 89 mm |
| Stack | 583 mm | 603 mm | 620 mm | 638 mm | 653 mm |
| Reach | 391 mm | 395 mm | 400 mm | 410 mm | 425 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm | 630 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm | 190 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1104 mm | 1104 mm | 1115 mm | 1130 mm | 1151 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 774 mm | 808 mm | 840 mm | 867 mm | 889 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
MACINA STYLE XL completes the Ktm E Macina Style model. KTM launched 14 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA STYLE 730 2022 is the most economical model, with a starting price of 4565$. KTM MACINA STYLE 710 2022 on the other hand costs 5414$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 5096$. Doing a quick comparison, we notice that MACINA STYLE XL price is 105.48% more expensive than the average cost of a Hybrid e-bike.
Hybrid e-bikes average weight
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 28.7 kg (63.27 lbs), the MACINA STYLE XL model is much heavier than average. In conclusion, the average Hybrid e-bike weighs 20.64% less than MACINA STYLE XL.
MACINA STYLE XL components
Fork
The Suntour is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the MACINA STYLE XL model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA STYLE XL has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
