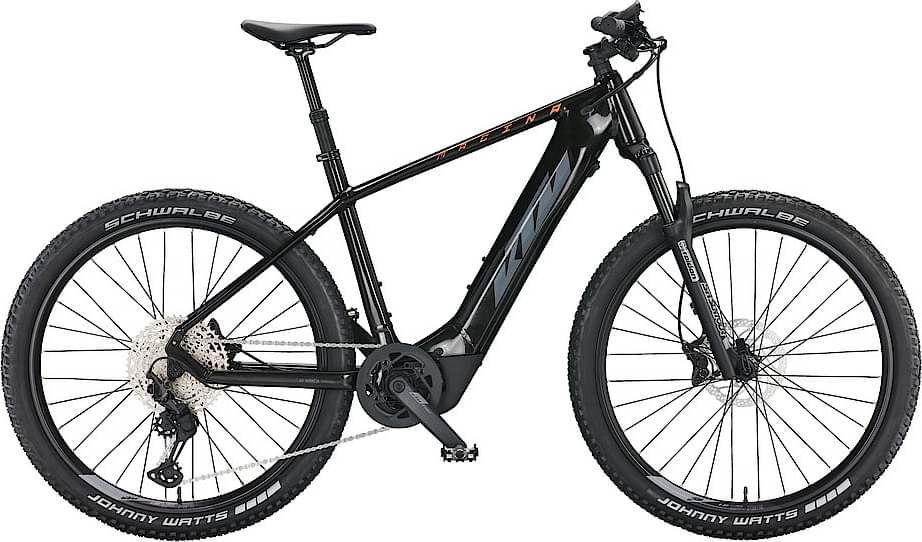

KTM MACINA TEAM 672 2022
2022 E-bike
Estimate price |
4,779$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour RAIDON 34
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 27.5" Alloy6061; PT625Wh Bosch Gen.4 / M-1676
Suspension Fork
Suntour Raidon 34 Air 27.5" LOR 100mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12 display
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 700mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.42 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm |
| Front Center | 662 mm | 673 mm | 684 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 580 mm | 585 mm | 596 mm |
| Reach | 405 mm | 414 mm | 420 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1100 mm | 1111 mm | 1122 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 752 mm | 763 mm | 791 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
MACINA TEAM 672 belongs to the Ktm E Macina Team model. 39 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina Team e-bikes models from 2022, here.
Model range prices
The most economical model, the KTM MACINA TEAM 693 2022 has a starting price of 3928$. KTM MACINA TEAM 791 2022 on the other hand is the most expensive at 5414$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 4458$. Comparing this to the average Crosscountry e-bike price, we see that the price is 81.74% more expensive.
Average weight for Crosscountry e-bikes
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
MACINA TEAM 672 weighs 24.2 kg (53.35 lbs) and is slightly heavier than the average. In short, the average Crosscountry e-bike weight is 4.27% lower than this one.
Overview of components
Fork
The MACINA TEAM 672 comes factory-installed with the Suntour RAIDON 34 fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, KTM MACINA TEAM 672 2022, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA TEAM 672 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
KTM MACINA TEAM 672 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the MACINA TEAM 672. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
