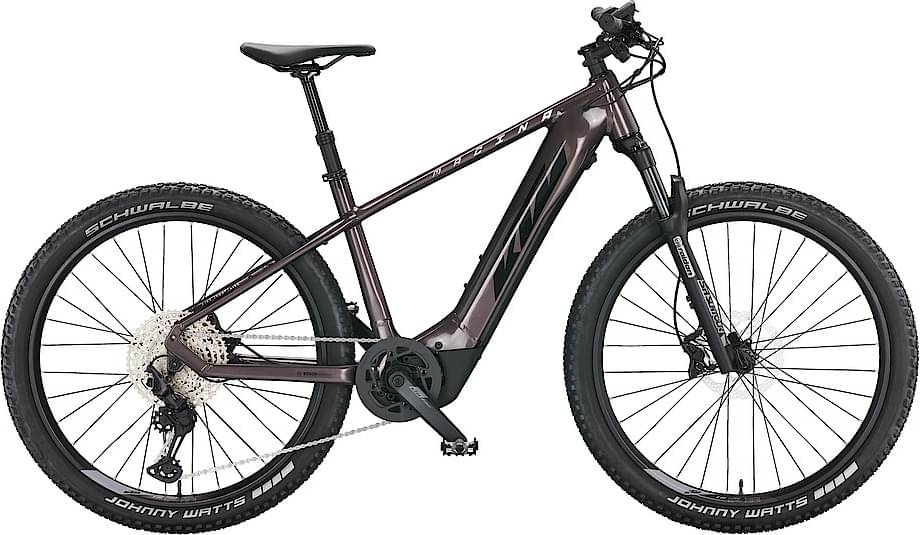

KTM MACINA TEAM 672 GLORIOUS 2022
2022 E-bike
Estimate price |
4,816$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour RAIDON 34
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 27.5" Alloy6061; PT625Wh Bosch Gen.4 / M-1676
Suspension Fork
Suntour Raidon 34 Air 27.5" LOR 100mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12 display
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 700mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.42 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm |
| Front Center | 662 mm | 673 mm | 684 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 580 mm | 585 mm | 596 mm |
| Reach | 405 mm | 414 mm | 420 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1100 mm | 1111 mm | 1122 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 752 mm | 763 mm | 791 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
MACINA TEAM 672 GLORIOUS is a Ktm E Macina Team model. There are 39 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the KTM MACINA TEAM 693 2022 has a starting price of 3928$. KTM MACINA TEAM 791 2022 on the other hand is the most expensive at 5414$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4458$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 81.74% higher.
Crosscountry e-bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
KTM MACINA TEAM 672 GLORIOUS it’s weighing 24.2 kg (53.35 lbs). At this weight, is slightly heavier than average. In short, the average Crosscountry e-bike weight is 4.27% lower than this one.
MACINA TEAM 672 GLORIOUS components
Fork
The Suntour RAIDON 34 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, KTM MACINA TEAM 672 GLORIOUS 2022, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
KTM MACINA TEAM 672 GLORIOUS includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
