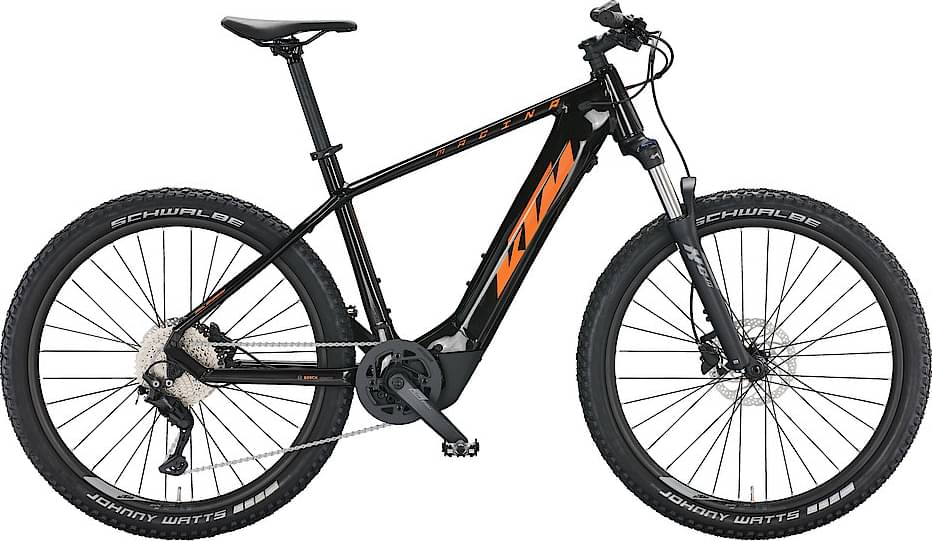

KTM MACINA TEAM 673 2022
2022 E-bike
Estimate price |
4,210$
Weight | 24.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 27.5" Alloy6061; PT625Wh Bosch Gen.4 / M-1676
Suspension Fork
Suntour XCM 34 coil 27.5" NLO 100mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore M4120-10 SGS shadow
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 700mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.42 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm |
| Front Center | 662 mm | 673 mm | 684 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 580 mm | 585 mm | 596 mm |
| Reach | 405 mm | 414 mm | 420 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1100 mm | 1111 mm | 1122 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 752 mm | 763 mm | 791 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
MACINA TEAM 673 is a Ktm E Macina Team model. 39 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
KTM MACINA TEAM 693 2022 is the cheapest e-bike model and costs 3928$. KTM MACINA TEAM 791 2022 is the most expensive one and costs 5414$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3928$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 60.13% higher.
Crosscountry e-bikes average weight
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KTM MACINA TEAM 673 it’s weighing 24.7 kg (54.45 lbs). At this weight, is a bit heavier than average. To sum up, it’s 6.42% heavier than the average weight of Crosscountry e-bikes.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on MACINA TEAM 673 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA TEAM 673 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
