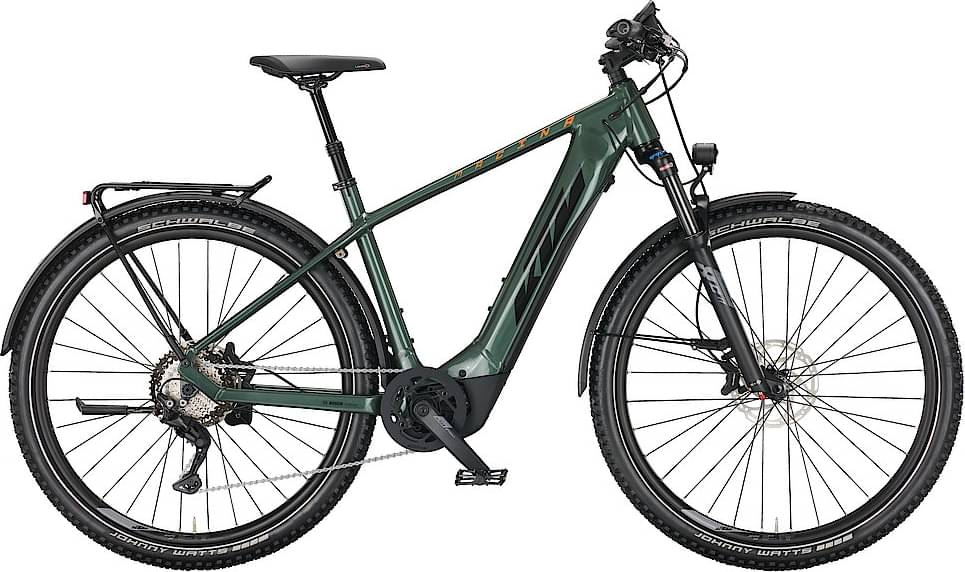

KTM MACINA TEAM 691 LFC 2022
2022 E-bike
Estimate price |
4,931$
Weight | 26.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT625Wh Bosch Gen.4 / M-0666
Suspension Fork
Suntour XCR 34 Air 29" LOR 120mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-M535 4-Piston
Disk Rotors
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM Comp rizer15 700mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin Athletic
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.48 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 678 mm | 689 mm | 708 mm |
| Rake | 46 mm | 51 mm | 51 mm |
| Trail | 102 mm | 89 mm | 89 mm |
| Stack | 614 mm | 621 mm | 632 mm |
| Reach | 396 mm | 410 mm | 426 mm |
| Top Tube Length | 585 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1132 mm | 1143 mm | 1163 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 792 mm | 811 mm | 838 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA TEAM 691 LFC is a Ktm E Macina Team model. KTM released 39 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA TEAM 693 2022 is the most affordable e-bike of this model and has a price of 3928$. On the other hand, KTM MACINA TEAM 791 2022, is the most expensive and costs 5414$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When KTM released this model in 2022, its price was 4565$. Comparing the average cost of a Trail e-bike to this one, you will see that MACINA TEAM 691 LFC price is 35.66% higher.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 26.9 kg (59.3 lbs), the MACINA TEAM 691 LFC model is considerably heavier than average. In short, the average Trail e-bike weight is 13.5% lower than this one.
Overview of components
Fork
KTM MACINA TEAM 691 LFC 2022 e-bike is equipped with the Suntour XCR 34 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on MACINA TEAM 691 LFC are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
KTM MACINA TEAM 691 LFC includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
