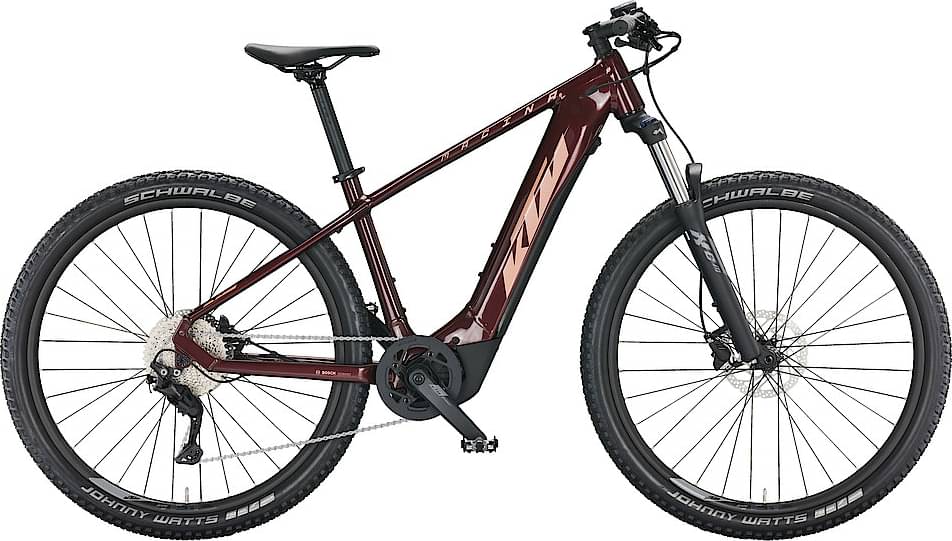

KTM MACINA TEAM 693 GLORIOUS 2022
2022 E-bike
Estimate price |
4,243$
Weight | 24.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT625Wh Bosch Gen.4 / M-0666
Suspension Fork
Suntour XCM 34 coil 29" NLO 120mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore M4120-10 SGS shadow
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp flat 2X 720mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.48 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 678 mm | 689 mm | 708 mm |
| Rake | 46 mm | 51 mm | 51 mm |
| Trail | 102 mm | 89 mm | 89 mm |
| Stack | 614 mm | 621 mm | 632 mm |
| Reach | 396 mm | 410 mm | 426 mm |
| Top Tube Length | 585 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1132 mm | 1143 mm | 1163 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 792 mm | 811 mm | 838 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA TEAM 693 GLORIOUS completes the Ktm E Macina Team model. KTM released 39 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA TEAM 693 2022 is the most economical model, with a starting price of 3928$. KTM MACINA TEAM 791 2022 on the other hand costs 5414$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 3928$. Comparing the average cost of a Trail e-bike to this one, you will see that MACINA TEAM 693 GLORIOUS price is 16.73% higher.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.9 kg (54.9 lbs), KTM e-bike is a bit heavier than average. In short, the average Trail e-bike weight is 5.06% lower than this one.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the MACINA TEAM 693 GLORIOUS model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA TEAM 693 GLORIOUS comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
