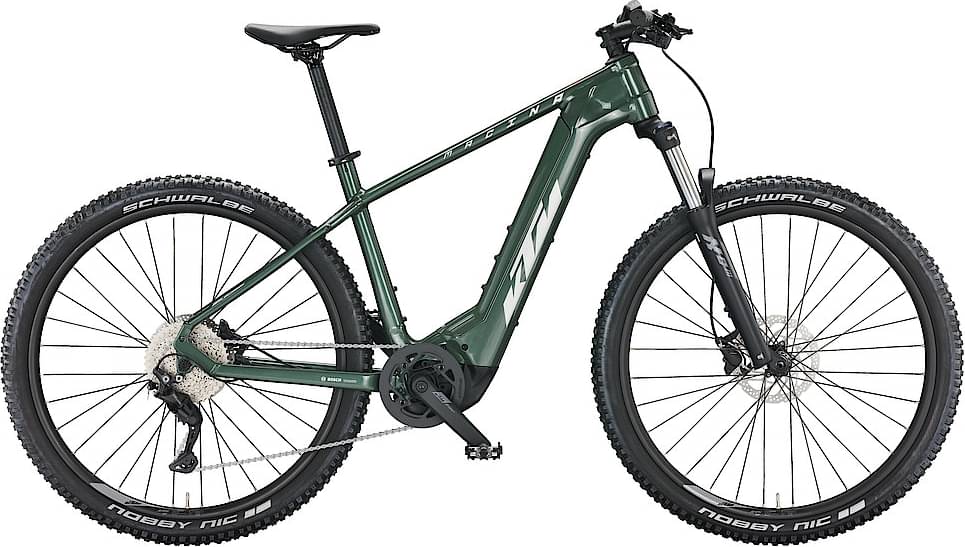

KTM MACINA TEAM 793 2022
2022 E-bike
Estimate price |
4,472$
Weight | 25.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT750Wh Bosch Gen.4 / M-2706
Suspension Fork
Suntour XCM 34 coil 29" NLO 120mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore M4120-10 SGS shadow
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp flat 2X 720mm
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.48 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 677 mm | 688 mm | 709 mm |
| Rake | 46 mm | 51 mm | 52 mm |
| Trail | 102 mm | 89 mm | 88 mm |
| Stack | 614 mm | 621 mm | 632 mm |
| Reach | 396 mm | 410 mm | 426 mm |
| Top Tube Length | 585 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1141 mm | 1152 mm | 1173 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 802 mm | 803 mm | 830 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA TEAM 793 is a Ktm E Macina Team model. 39 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA TEAM 693 2022 is the most affordable e-bike of this model and has a price of 3928$. On the other hand, KTM MACINA TEAM 791 2022, is the most expensive and costs 5414$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When KTM released this model in 2022, its price was 4140$. In conclusion, this e-bike price is 23.03% more expensive than the price of the average Trail e-bike.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit heavier than average, MACINA TEAM 793 has a weight of 25.2 kg (55.56 lbs). In other words, this model is 6.33% heavier than the average Trail e-bike.
MACINA TEAM 793 components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, KTM MACINA TEAM 793 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA TEAM 793 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
KTM MACINA TEAM 793 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
