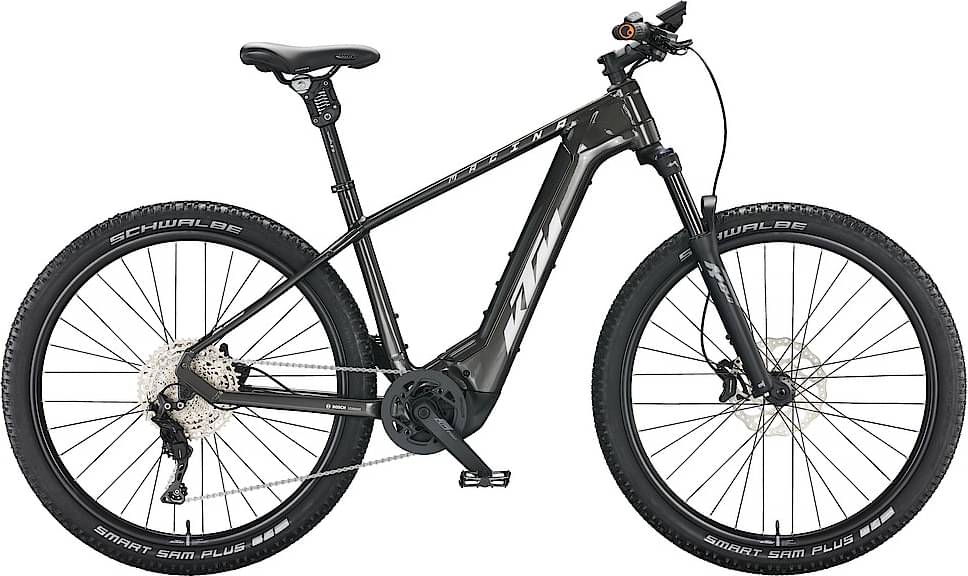

KTM MACINA TEAM XL 2022
2022 E-bike
Estimate price |
5,504$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR 34
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT750Wh Bosch Gen.4 / M-2706
Suspension Fork
Suntour XCR 34 Air 29" LOR 120mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore XT M8130-11 LG shadow+
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG600-11 / 11-50
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Wheels
Rims
KTM Line - DT Swiss 370 6b 32L 110/15 / Ryde Andra29 32H 622x29C / DT Alpine II 2.34 black
Brakes
Brakes
Tektro HD-M535 4-Piston
Disk Rotors
Tektro TR-17 2.3mm 6bolt 203 / TR-17 2.3mm 6bolt 180
Cockpit
Stem
Ergotec Piranha2 6°
Handlebar
Ergotec low rizer GH15 Savety 740mm
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle Royal Viaggio HRC
Seatpost
bySchulz G.2 ST suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 294 mm |
| Front Center | 677 mm | 688 mm | 709 mm | 734 mm |
| Rake | 46 mm | 51 mm | 52 mm | 60 mm |
| Trail | 102 mm | 89 mm | 88 mm | 79 mm |
| Stack | 614 mm | 621 mm | 632 mm | 645 mm |
| Reach | 396 mm | 410 mm | 426 mm | 443 mm |
| Top Tube Length | 585 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm | 150 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1141 mm | 1152 mm | 1173 mm | 1193 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 80 mm |
| Standover Height | 802 mm | 803 mm | 830 mm | 856 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
MACINA TEAM XL completes the Ktm E Macina Team model. There are 39 e-bikes that carry this model name. You can easily view all of the Ktm E Macina Team e-bikes models from 2022, here.
Model range prices
KTM MACINA TEAM 693 2022 is the cheapest e-bike model and costs 3928$. KTM MACINA TEAM 791 2022 is the most expensive one and costs 5414$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 5096$. Doing a quick comparison, we notice that MACINA TEAM XL price is 51.44% higher than the average cost of a Trail e-bike.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
MACINA TEAM XL weighs 27.6 kg (60.85 lbs) and is much heavier than the average. To sum up, it’s 16.46% heavier than the average weight of Trail e-bikes.
MACINA TEAM XL components
Fork
This e-bike has the Suntour XCR 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, KTM MACINA TEAM XL 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA TEAM XL is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
