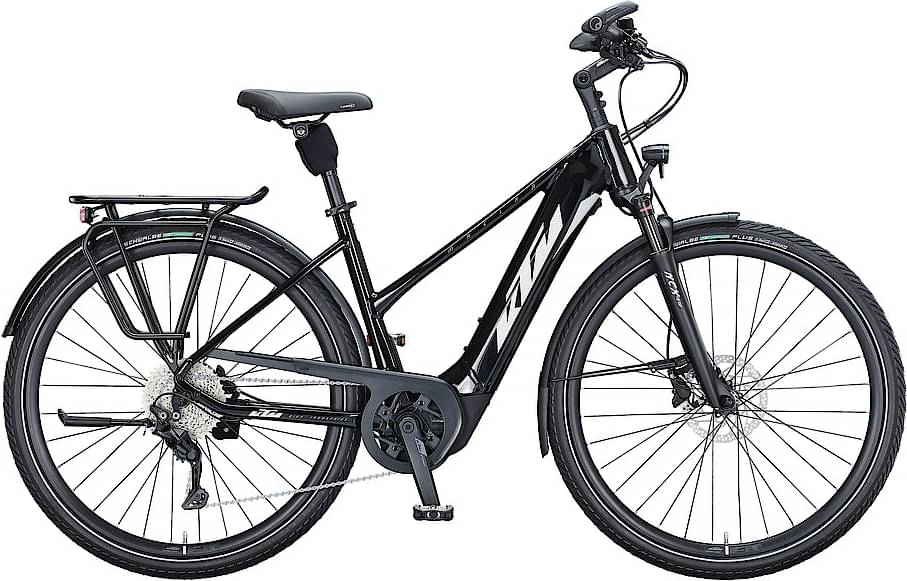

KTM MACINA TOUR CX 610 2021

2021 E-bike
Estimate price | 4,129$
Weight | 26.2 kg
E-bike
Open compare Use advisor
Ktm Macina Tour Cx 610 2021

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 700c
  • Travel Front 63mm
  • Fork SunTour NCX
  • Groupset Deore
  • Suspension Hardtail
  • Motor Bosch 250W 85Nm mid-drive
  • Battery Bosch PowerTUBE 625Wh hor.
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450

Suspension Fork

Suntour NCX-D coil LO 63mm

Drivetrain

Shift Levers

Shimano Deore M4100-10 display

Cassette

Shimano Deore M4100-10 / 11-42

Crank

KTM COMP ISIS 170mm Q16

Bottom Bracket

Bosch, press-fit

Chain

KMC e10 EPT e-bike

Wheels

Rims

KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black

Brakes

Brakes

Shimano MT200 / MT200 2-Piston

Disk Rotors

Shimano RT30 CL 180 / 160

Cockpit

Stem

KTM Line UP3 adjust. 0-90°

Handlebar

KTM Line rizer20 640mm

Headset

KTM Team eTrekking 1.1/8"-1.5" angle limit

Seat

Saddle

Selle Royal Lookin+

Seatpost

Suntour SP17-NCX suspension 30.9/350

Motor & Battery

Motor

Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm

Battery

Bosch PowerTUBE 625Wh hor.

Remote

Bosch INTUVIA LCD Display with Remote

Charger

Bosch STANDARD Charger 4A

Model Overview

MACINA TOUR CX 610 is part of the Ktm E Macina Tour model. KTM released 11 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.

Model range prices

KTM MACINA TOUR P510 2021 is the most economical model, with a starting price of 3344$. KTM MACINA TOUR CX 610 2021 on the other hand costs 3768$, and is the most expensive model.

Safety

When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.

Hybrid e-bikes average price

According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.

Furthermore, this bike was made available in 2021 for 3768$. In conclusion, this e-bike price is 51.94% more expensive than the price of the average Hybrid e-bike.

Average weight for Hybrid e-bikes

If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.

With a weight of 26.2 kg (57.76 lbs), KTM e-bike is considerably heavier than average. In conclusion, the average Hybrid e-bike weighs 10.13% less than MACINA TOUR CX 610.

MACINA TOUR CX 610 components

Fork

The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.

Wheels

When it comes to wheels, the MACINA TOUR CX 610 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA TOUR CX 610 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.

Sizes

This e-bike has one size only, so it might not fit you. In conclusion, double-check its size to make sure it’s a good fit for you.
