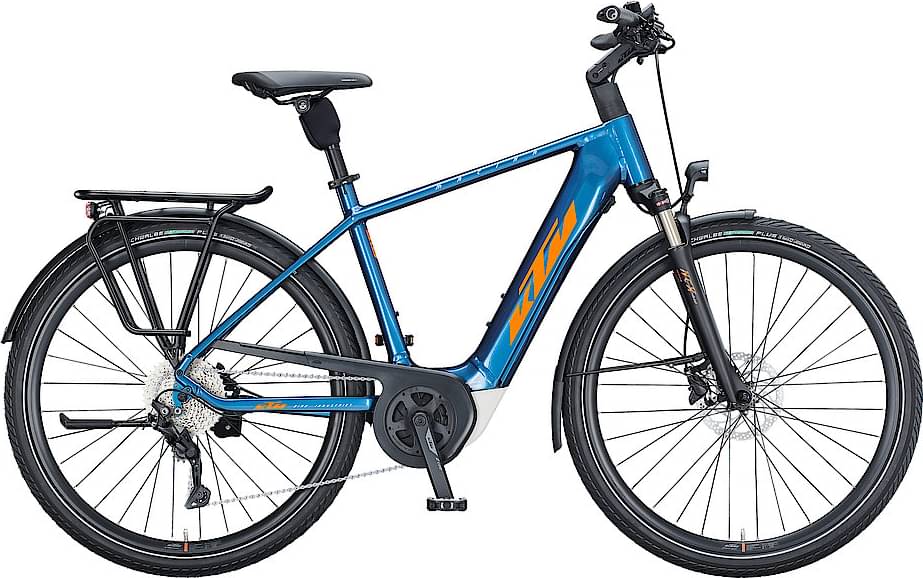

KTM MACINA TOUR P510 2021
2021 E-bike
Estimate price |
3,663$
Weight | 26.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.3 / T-1150
Suspension Fork
Suntour NCX-D coil LO 63mm
Drivetrain
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Line rizer20 640mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.51 mm | 1.52 mm |
| Front Center | 636 mm | 647 mm | 657 mm | 672 mm |
| Rake | 37 mm | 36 mm | 36 mm | 36 mm |
| Trail | 88 mm | 89 mm | 89 mm | 89 mm |
| Stack | 576 mm | 592 mm | 609 mm | 627 mm |
| Reach | 393 mm | 399 mm | 403 mm | 413 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1096 mm | 1107 mm | 1117 mm | 1133 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 783 mm | 806 mm | 838 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA TOUR P510 is a Ktm E Macina Tour model. KTM launched 11 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the KTM MACINA TOUR P510 2021 has a starting price of 3344$. KTM MACINA TOUR CX 610 2021 on the other hand is the most expensive at 3768$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 3344$. Comparing this to the average Hybrid e-bike price, we see that the price is 34.84% more expensive.
Hybrid e-bikes average weight
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, MACINA TOUR P510 has a weight of 26.3 kg (57.98 lbs). In other words, this model is 10.55% heavier than the average Hybrid e-bike.
Overview of components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the MACINA TOUR P510 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA TOUR P510 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
MACINA TOUR P510 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
