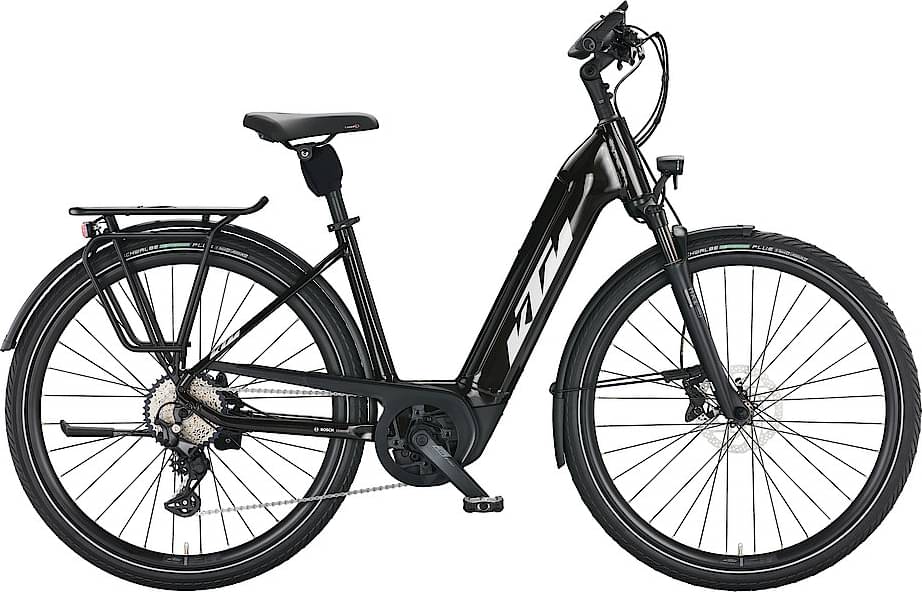

KTM MACINA TOUR CX 610 NYON 2022
2022 E-bike
Estimate price |
4,816$
Weight | 27.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM COMP ISIS 170mm Q16
Chain
Shimano LG500
Chain Guide
KTM type 1 for Bosch Gen.4
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 160
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM Line rizer20 640mm
Headset
KTM Team Trekking 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch NYON TFT Touch Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.51 mm |
| Front Center | 631 mm | 644 mm | 656 mm | 674 mm |
| Rake | 37 mm | 36 mm | 36 mm | 37 mm |
| Trail | 88 mm | 89 mm | 89 mm | 88 mm |
| Stack | 574 mm | 591 mm | 607 mm | 625 mm |
| Reach | 389 mm | 397 mm | 403 mm | 414 mm |
| Top Tube Length | 567 mm | 580 mm | 591 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1069 mm | 1082 mm | 1094 mm | 1112 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 788 mm | 811 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA TOUR CX 610 NYON is part of the Ktm E Macina Tour model. There are 11 e-bikes that carry this model name. Take a sneak peek at all Ktm E Macina Tour e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the KTM MACINA TOUR P510 2022 has a starting price of 3556$. KTM MACINA TOUR CX 610 NYON 2022 on the other hand is the most expensive at 4458$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, KTM MACINA TOUR CX 610 NYON price was 4458$. If we compare this with the average Hybrid e-bike cost we notice that the price is 79.76% more expensive.
Hybrid e-bikes average weight
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, MACINA TOUR CX 610 NYON has a weight of 27.4 kg (60.41 lbs). In other words, this model is 15.17% heavier than the average Hybrid e-bike.
MACINA TOUR CX 610 NYON components
Fork
The fork installed on this bike is the Suntour model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on MACINA TOUR CX 610 NYON are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA TOUR CX 610 NYON has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
