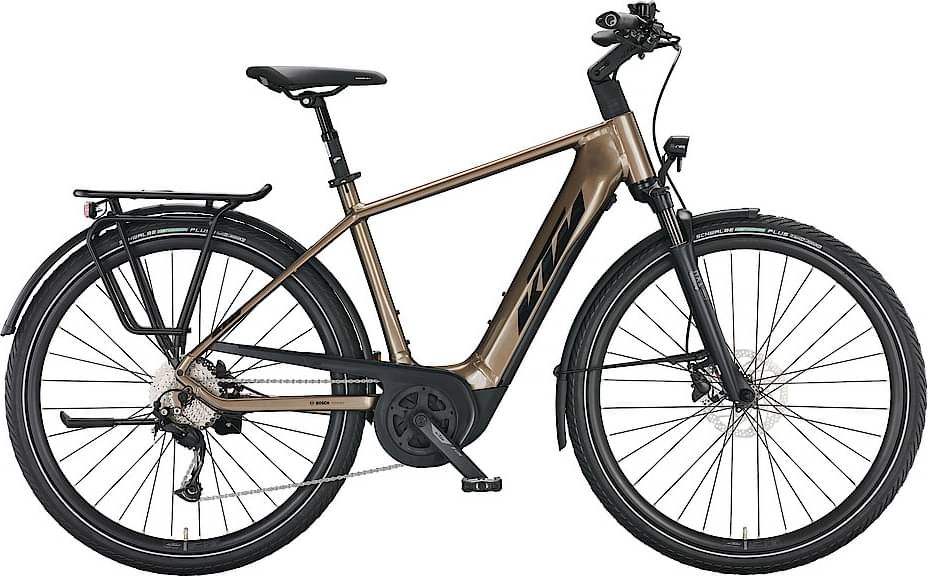

KTM MACINA TOUR P510 2022
2022 E-bike
Estimate price |
3,841$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.3 / T-1150
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Rear Derailleur
Shimano Alivio M3100-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Chain Guide
KTM type 6 for Bosch Gen.4
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Line rizer20 640mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza+
Seatpost
KTM Line Elegance suspension 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.51 mm | 1.52 mm |
| Front Center | 636 mm | 647 mm | 657 mm | 672 mm |
| Rake | 37 mm | 36 mm | 36 mm | 36 mm |
| Trail | 88 mm | 89 mm | 89 mm | 89 mm |
| Stack | 576 mm | 592 mm | 609 mm | 627 mm |
| Reach | 393 mm | 399 mm | 403 mm | 413 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1096 mm | 1107 mm | 1117 mm | 1133 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 783 mm | 806 mm | 838 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA TOUR P510 is a Ktm E Macina Tour model. There are 11 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
KTM MACINA TOUR P510 2022 is the most affordable e-bike of this model and has a price of 3556$. On the other hand, KTM MACINA TOUR CX 610 NYON 2022, is the most expensive and costs 4458$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3556$. If we compare this with the average Hybrid e-bike cost we notice that the price is 43.39% more expensive.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 26.1 kg (57.54 lbs), KTM e-bike is a bit heavier than average. In other words, this model is 9.71% heavier than the average Hybrid e-bike.
MACINA TOUR P510 components
Fork
The Suntour is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on MACINA TOUR P510 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA TOUR P510 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
