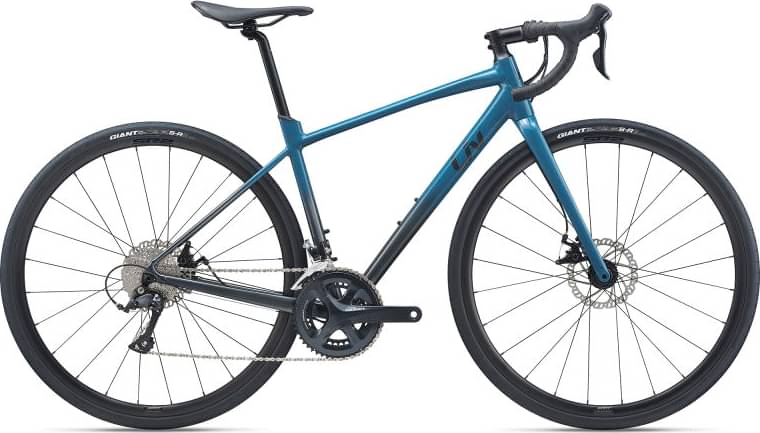

Liv Avail AR 3 2021
2021 Road
Estimate price |
1,300$
Weight | 10 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
145cm - 156cm
XS
153cm - 162cm
SM
158cm - 169cm
MD
165cm - 174cm
LG
171cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, disc
Suspension Fork
Advanced-Grade Composite, OverDrive, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora
Cassette
Shimano CS-HG400, 11x34
Crank
Shimano Sora, 34/50
Bottom Bracket
cartridge
Chain
KMC X9
Pedals
N/A
Wheels
Front Hub
Giant S-R2 Disc wheelset, 12mm thru-axle
Rear Hub
Giant S-R2 Disc wheelset, 12mm thru-axle
Rims
Giant S-R2 Disc wheelset
Spokes
Stainless
Tires
Giant S-R3 AC, 700x32c, puncture protect
Brakes
Brakes
Tektro MD-C550 mechanical, 160mm
Brake Levers
Shimano Sora
Cockpit
Stem
Giant Sport
Handlebar
Giant Connect
Seat
Saddle
Liv Approach, UniClip accessory mount
Seatpost
Giant D-Fuse, alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.48 mm | 1.53 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 585 mm | 590 mm | 592 mm | 597 mm | 613 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 72.8 mm | 69.5 mm | 62.9 mm | 59.6 mm | 59.6 mm |
| Stack | 514 mm | 530 mm | 553 mm | 574 mm | 593 mm |
| Reach | 354 mm | 358 mm | 361 mm | 365 mm | 375 mm |
| Top Tube Length | 494 mm | 507 mm | 517 mm | 532 mm | 547 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 410 mm | 445 mm | 480 mm | 515 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 103 mm | 118 mm | 138 mm | 158 mm | 178 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 986 mm | 991 mm | 993 mm | 998 mm | 1014 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 645 mm | 673 mm | 701 mm | 728 mm | 758 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 153 cm | 158 cm | 165 cm | 171 cm |
| Rider Max Height | 156 cm | 162 cm | 169 cm | 174 cm | 182 cm |
Model Overview
Avail AR 3 is a Liv Avail Ar model. There are 13 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Liv Avail AR 4 2021 is the cheapest bike model and costs 1000$. Liv Avail AR 1 2021 is the most expensive one and costs 1800$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Liv released this model in 2021, its price was 1300$. Doing a quick comparison, we notice that Avail AR 3 price is 80.46% smaller than the average cost of an Endurance bike.
Average weight for Endurance bikes
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Liv Avail AR 3 it’s weighing 10 kg (22.05 lbs). At this weight, is much heavier than average. To sum up, it’s 21.95% heavier than the average weight of Endurance bikes.
Avail AR 3 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Avail AR 3 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Liv Avail AR 3 bike has 5 sizes, in the range of 145 cm – 182 cm (4.76 ft – 5.97 ft). In conclusion, it won’t take much to find one that’s right for you.
