Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminum, 120mm FlexPoint suspension
Suspension Fork
Fox 34 Rhythm, Grip Damper, 15mm QR, Boost, OverDrive, 130mm travel
Rear Shock
Fox Float Performance
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
N/A
Shift Levers
SRAM NX
Cassette
SRAM PG-1130 11x42, 11-speed
Crank
SRAM NX, 30T
Bottom Bracket
SRAM GXP, Press fit
Chain
KMC X11
Pedals
N/A
Wheels
Front Hub
[F] Giant Performance Tracker Disc, 28h, Boost 110x15mm, [R] Giant Sport Tracker Disc, 28h, QR
Rear Hub
[F] Giant Performance Tracker Disc, 28h, Boost 110x15mm, [R] Giant Sport Tracker Disc, 28h, QR
Rims
Giant XC-1
Spokes
Stainless Steel, 14g
Tires
Maxxis Ardent, [F] 27.5x2.4, Folding [R] 27.5x2.25, Folding
Brakes
Brakes
Shimano M395, hydraulic disc, [F] 180mm [R] 160mm
Brake Levers
Shimano M425
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect Trail, 31.8mm
Seat
Saddle
Liv Contact Upright
Seatpost
Tranz X YSP-11 Dropper Post w/ under bar remote, 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.36 mm | 1.36 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 655 mm | 675 mm | 691 mm | 702 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 562 mm | 567 mm | 576 mm | 585 mm |
| Reach | 394 mm | 412 mm | 424 mm | 431 mm |
| Top Tube Length | 554 mm | 574 mm | 594 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 390 mm | 440 mm | 490 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1093 mm | 1113 mm | 1129 mm | 1140 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 696 mm | 697 mm | 725 mm | 761 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

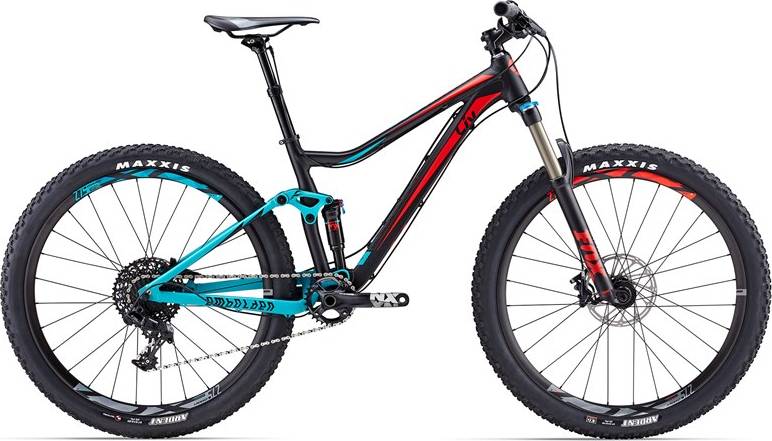

Model Overview
Embolden 1 belongs to the Liv Embolden model. Liv released 14 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Liv Embolden 2 2017 is the cheapest bike model and costs 1365$. Liv Embolden 1 2017 is the most expensive one and costs 2100$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2100$. If we compare this with the average Trail bike cost we notice that the price is 31.52% lower.
Embolden 1 components
Fork
The Embolden 1 comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float Performance rear shock model, which has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Embolden 1 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Liv Embolden 1 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
