Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Giant Crest 34
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

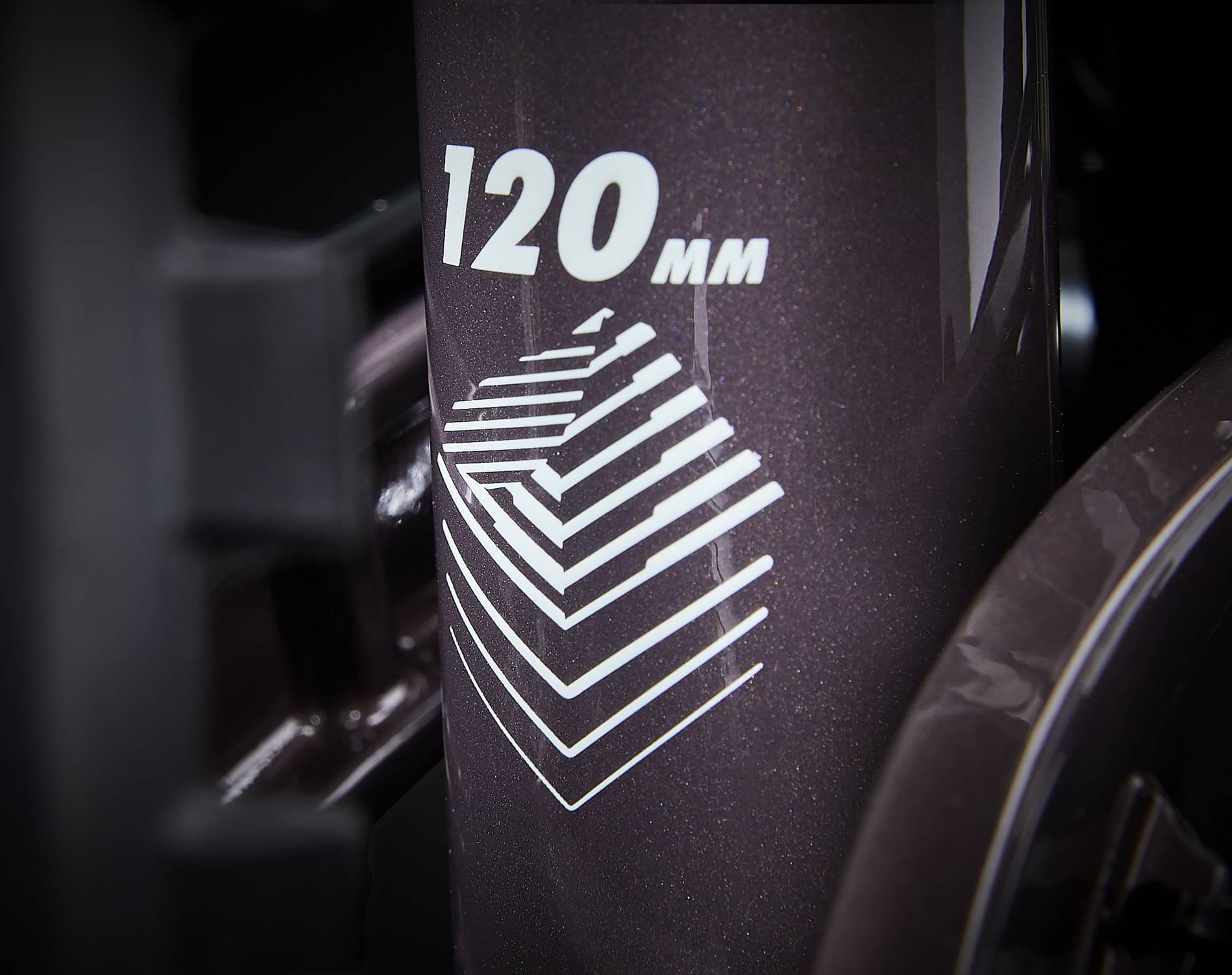

ALUXX-grade aluminum, 120mm FlexPoint Suspension
Suspension Fork
Giant Crest 34 SL RCL, 140mm, Boost 15x110, 44mm offset

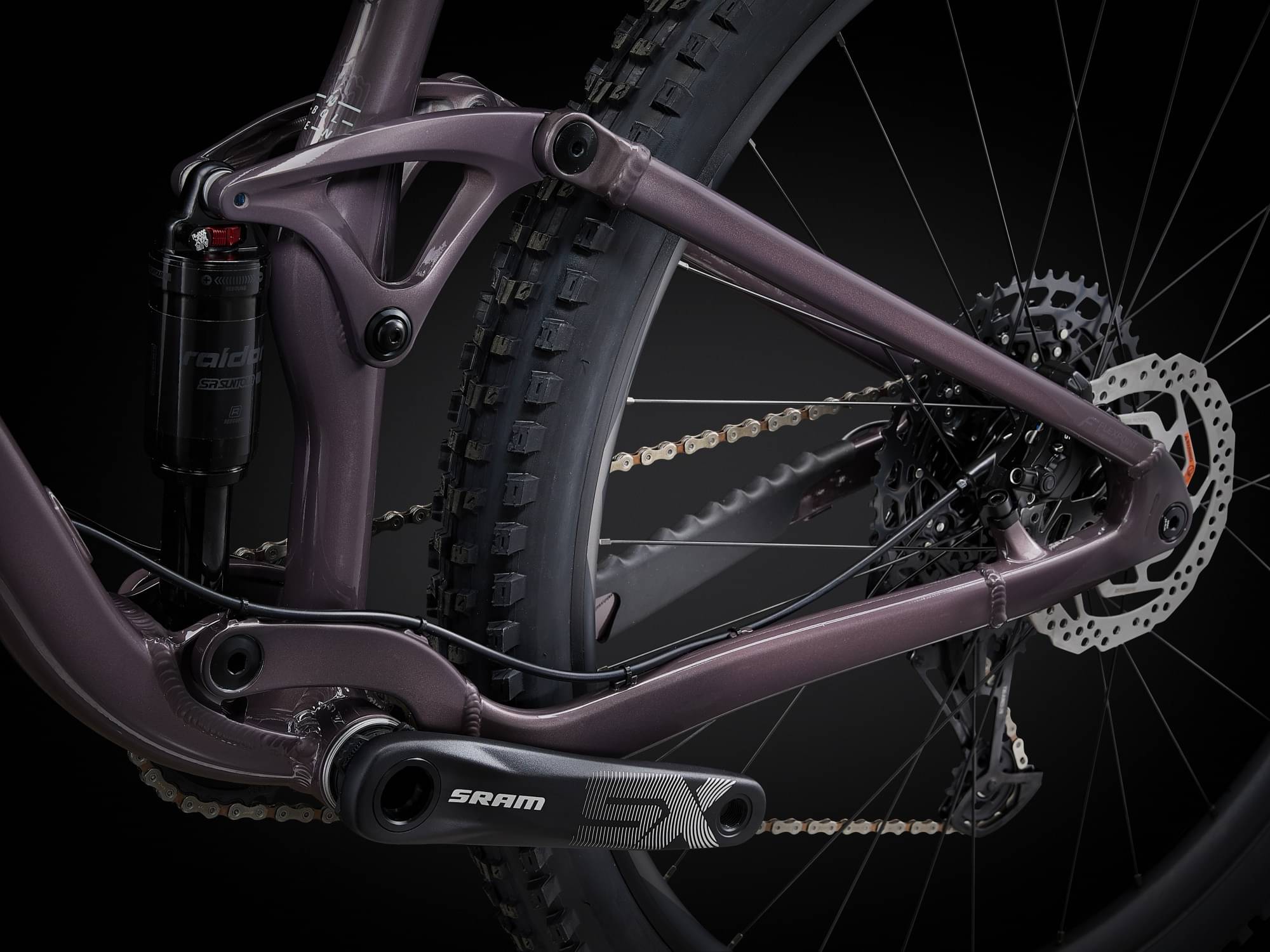

Rear Shock
Suntour Raidon R, 184x44, custom tuned for Liv

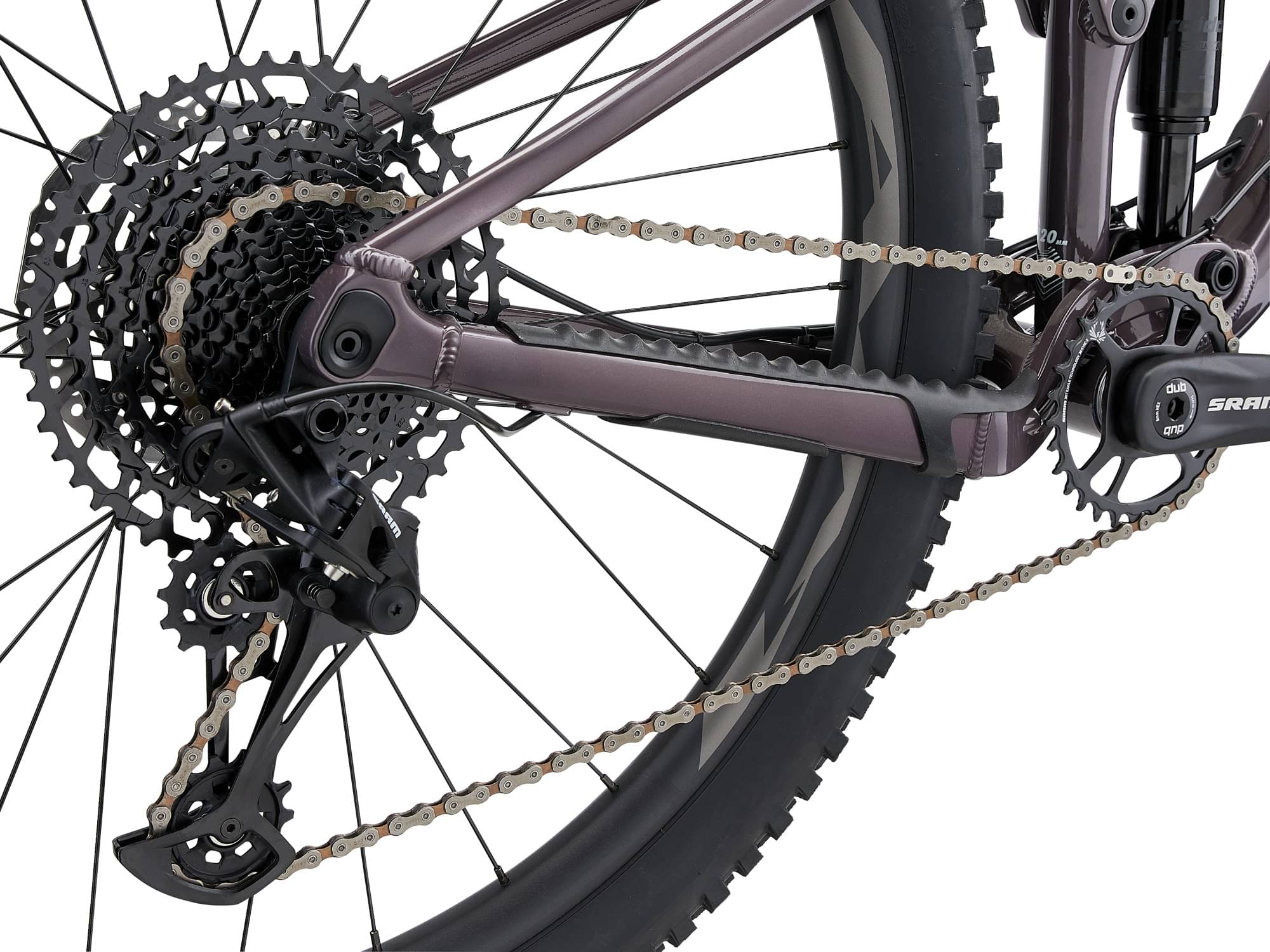

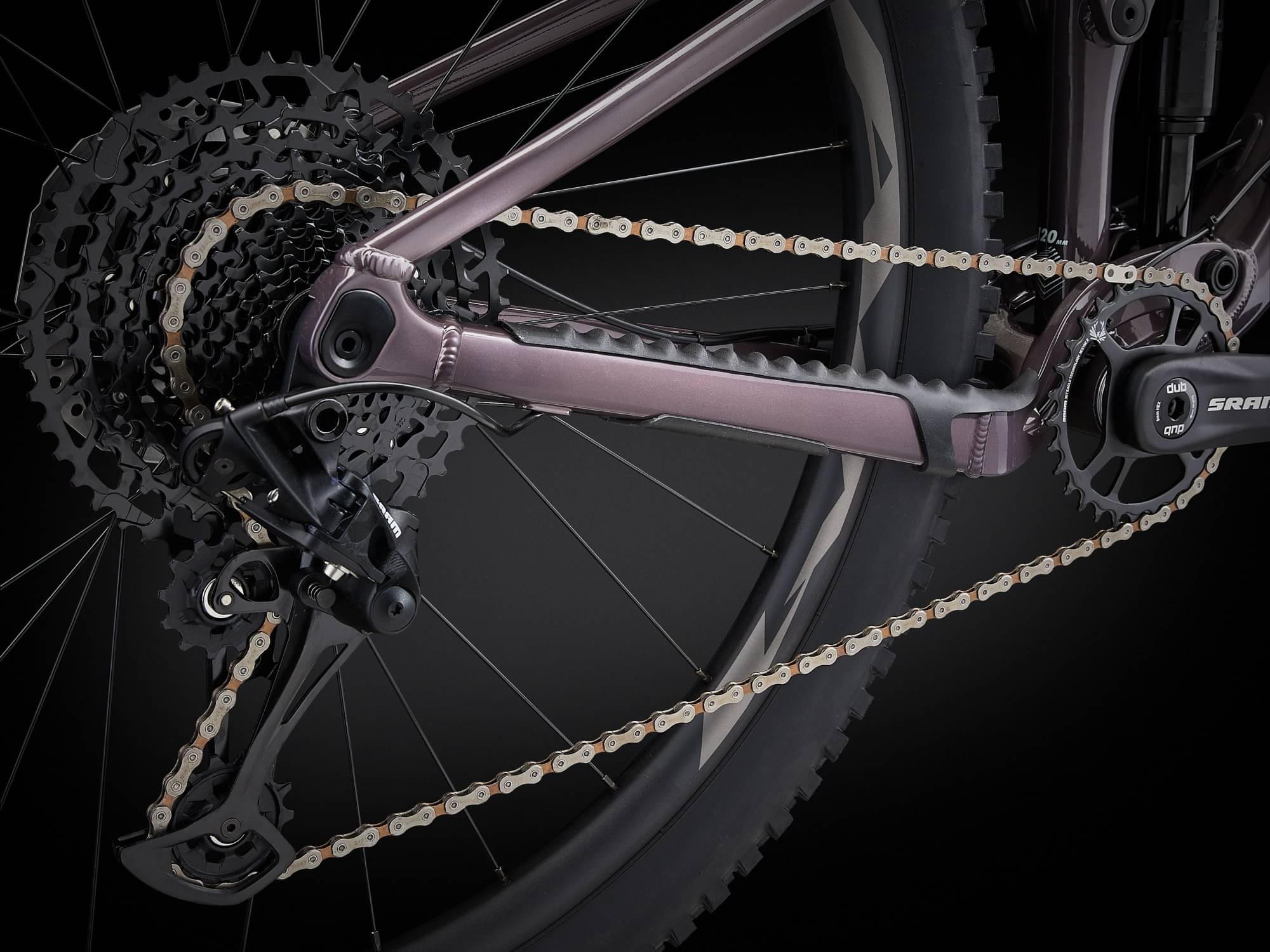

Drivetrain
Rear Derailleur
SRAM SX Eagle
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle, 1x12
Cassette
SRAM SX Eagle, 11x50
Crank
SRAM SX Eagle DUB, 30t 27.5": XS: 165mm, S: 170mm, M: 170mm 29": S: 170mm, M: 170mm, L: 170mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM SX Eagle
Pedals
platform
Wheels
Front Hub
alloy
Rear Hub
alloy
Rims
27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width
Spokes
Sapim
Tires
27.5": [F] Maxxis Minion DHF 27.5x2.6, EXO, TR, tubeless [R] Maxxis Dissector 27.5x2.6, EXO, TR, tubeless 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4 WT, EXO, TR, tubeless
Brakes
Brakes
Shimano MT-420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
Brake Levers
Shimano BL-MT401
Cockpit
Stem
Giant Contact, 35mm 27.5": XS: 40mm, S: 50mm, M: 50mm 29": S: 50mm, M: 50mm, L: 60mm
Handlebar
Giant Contact TR35, 20mm rise, alloy 27.5": XS: 730mm, S: 750mm, M: 750mm 29": S: 750mm, M: 750mm, L: 780mm
Grips
Giant Sole-O
Seat
Saddle
Liv Sylvia
Seatpost
Giant Contact Switch dropper, remote 27.5": XS: 75mm travel / 30.9 x 295mm S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm 29": S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 345mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.386 mm | 1.49 mm | 1.352 mm | 1.449 mm | 1.414 mm |
| Front Center | 675 mm | 712 mm | 691 mm | 734 mm | 755 mm |
| Rake | 43 mm | 51 mm | 43 mm | 51 mm | 51 mm |
| Trail | 103.6 mm | 105.3 mm | 103.6 mm | 105.3 mm | 105.3 mm |
| Stack | 560 mm | 614 mm | 565 mm | 623 mm | 632 mm |
| Reach | 404 mm | 412 mm | 418 mm | 430 mm | 447 mm |
| Top Tube Length | 565 mm | 565 mm | 580 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 76 ° | 74 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 405 mm | 406 mm | 420 mm | 440 mm |
| Head Tube Angle | 67.5 ° | 67 ° | 67.5 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 438 mm | 435 mm | 438 mm | 438 mm |
| Wheelbase | 1109 mm | 1147 mm | 1125 mm | 1169 mm | 1190 mm |
| Bottom Bracket Drop | 20 mm | 40 mm | 20 mm | 40 mm | 40 mm |
| Standover Height | 690 mm | 712 mm | 705 mm | 734 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 170 cm | 177 cm | 184 cm |
About this model
Embolden 1 completes the Liv Embolden model. Liv launched 15 bikes of this model so far. Take a sneak peek at all Liv Embolden bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Liv Embolden 2 2024 has a starting price of 1662$. Liv Embolden 1 2024 on the other hand is the most expensive at 2096$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Liv released this model in 2024, its price was 2096$. If we compare this with the average Trail bike cost we notice that the price is 31.77% smaller.
Overview of components

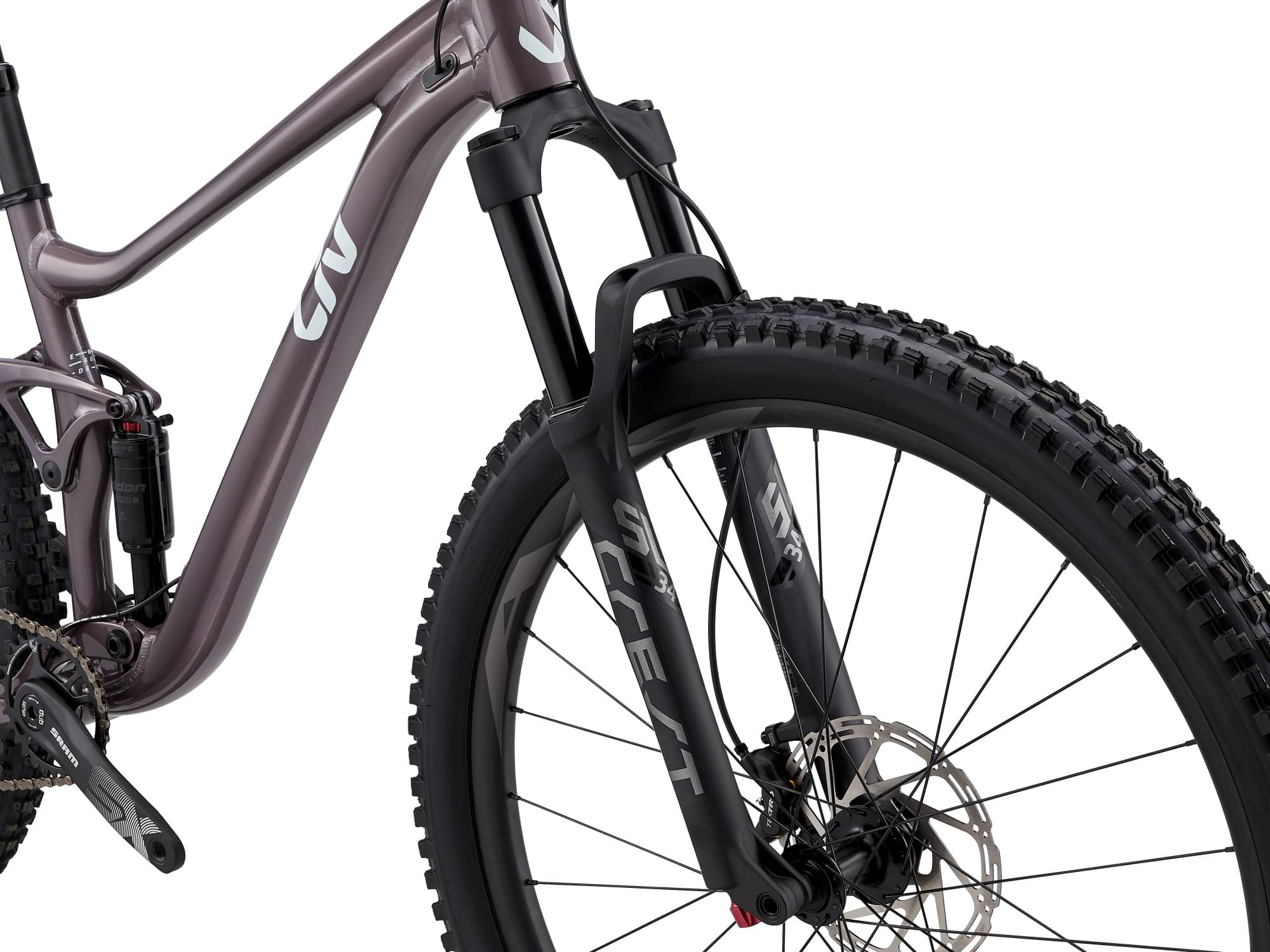

Fork
The Embolden 1 comes factory-installed with the Giant Crest 34 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Liv Embolden 1 bike has the Suntour Raidon R model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Liv Embolden 1 2024, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Liv Embolden 1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Liv Embolden 1 comes with a dropper post. Therefore, climbing or descending will be a breeze.
