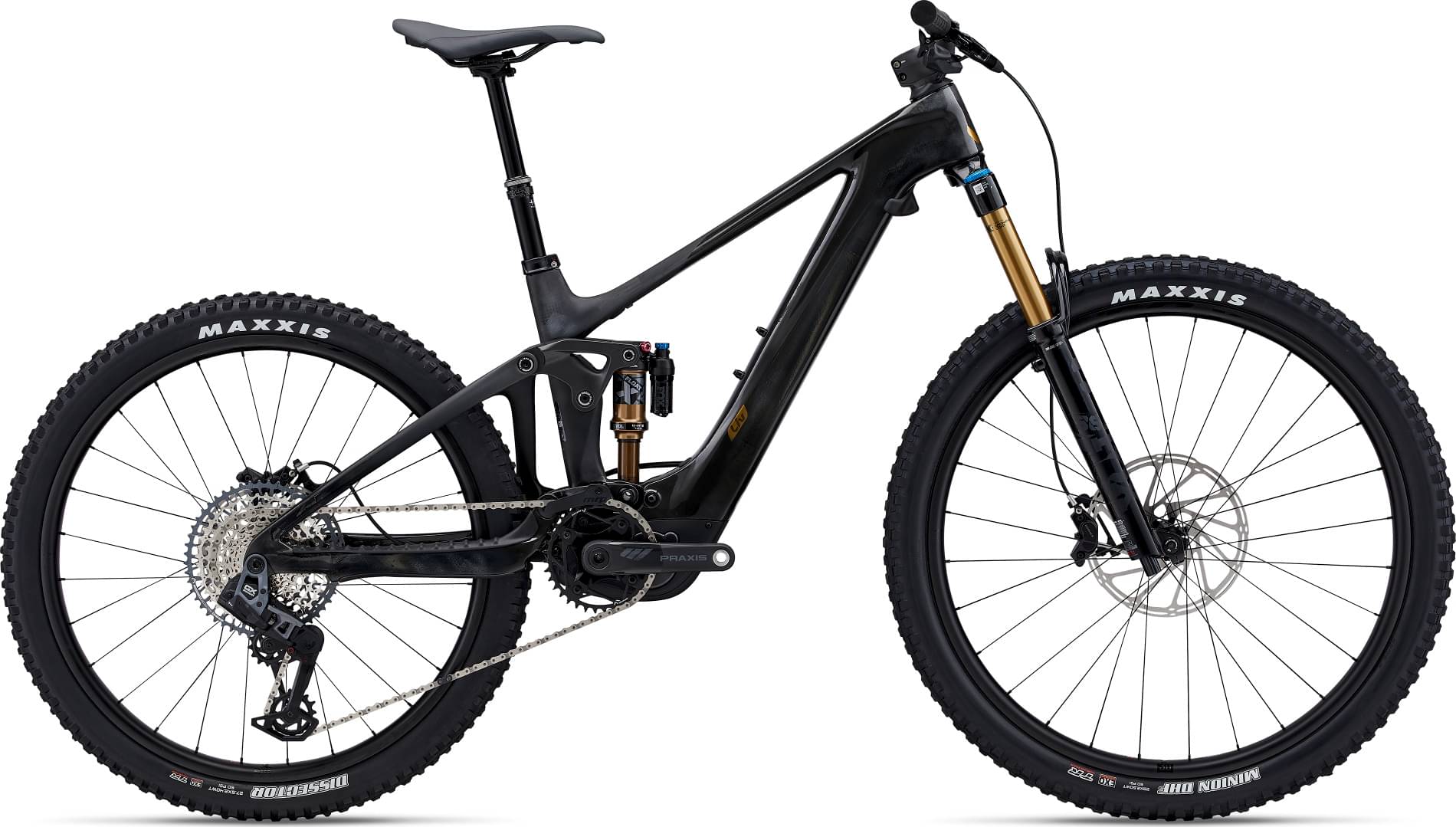

Liv Intrigue X Advanced, E+ Elite 1 2024
2024 E-bike
Estimate price |
10,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
152cm - 163cm
XS Low
152cm - 163cm
SM High
158cm - 169cm
SM Low
158cm - 169cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
LG High
170cm - 181cm
LG Low
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
Rear Shock
Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission, AXS
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
SRAM AXS new NGD controller, wireless electronic shifting
Cassette
SRAM GX Eagle Transmission, 10-52T, 12-speed
Crank
Praxis Performance Carbon e-crank arms (S/M:160, L/XL:165) SRAM Eagle Transmission E-MTB Chainring, Steel 36T
Bottom Bracket
n/a
Chain
SRAM GX Eagle Transmission Flattop Chain, Powerlock
Pedals
N/A
Wheels
Front Hub
E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
Rear Hub
E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
Rims
E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R]30mm inner width
Tires
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Brakes
Brakes
SRAM Code R, hydraulic disc, 220mm[F], 200mm[R]
Brake Levers
SRAM Code R
Cockpit
Stem
Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
Handlebar
Giant Contact SLR Trail, carbon, 760mm (XS-S), 800mm (M-L)
Grips
Liv Tactal Pro-E Single Lock-On Grips
Seat
Saddle
Liv Sylvia E+
Seatpost
Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm)
Motor & Battery
Motor
Giant SyncDrive Pro2 Mg, 85Nm, Magnasium Casing, powered by Yamaha, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.446 mm | 1.36 mm | 1.396 mm | 1.338 mm | 1.376 mm | 1.309 mm | 1.341 mm |
| Bottom Bracket Height | 354 mm | 344 mm | 354 mm | 344 mm | 354 mm | 344 mm | 354 mm | 344 mm |
| Front Center | 729 mm | 729 mm | 744 mm | 743 mm | 755 mm | 755 mm | 783 mm | 783 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm |
| Stack | 601 mm | 606 mm | 601 mm | 606 mm | 605 mm | 611 mm | 619 mm | 625 mm |
| Reach | 427 mm | 419 mm | 442 mm | 434 mm | 452 mm | 444 mm | 473 mm | 466 mm |
| Top Tube Length | 555 mm | 557 mm | 570 mm | 572 mm | 595 mm | 597 mm | 620 mm | 622 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° | 77.2 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 100 mm | 100 mm | 115 mm | 115 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1175 mm | 1174 mm | 1190 mm | 1188 mm | 1201 mm | 1200 mm | 1229 mm | 1228 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm |
| Standover Height | 730 mm | 722 mm | 735 mm | 726 mm | 726 mm | 717 mm | 723 mm | 711 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 152 cm | 158 cm | 158 cm | 164 cm | 164 cm | 170 cm | 170 cm |
| Rider Max Height | 163 cm | 163 cm | 169 cm | 169 cm | 175 cm | 175 cm | 181 cm | 181 cm |
Model Overview
Intrigue X Advanced, E+ Elite 1 belongs to the Liv E Intrigue model. There are 27 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Liv Intrigue X Advanced, E+ Elite 3 2024 is the most economical model, with a starting price of 5421$. Liv Intrigue X Advanced, E+ Elite 1 2024 on the other hand costs 10000$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Liv released this model in 2024, its price was 10000$. Comparing this to the average Trail e-bike price, we see that the price is 197.18% more expensive.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the Fox Float X Factory model, with a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on Intrigue X Advanced, E+ Elite 1 are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Intrigue X Advanced, E+ Elite 1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 8 sizes. They vary from 152 cm – 181 cm (4.99 ft – 5.94 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Liv Intrigue X Advanced, E+ Elite 1 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
