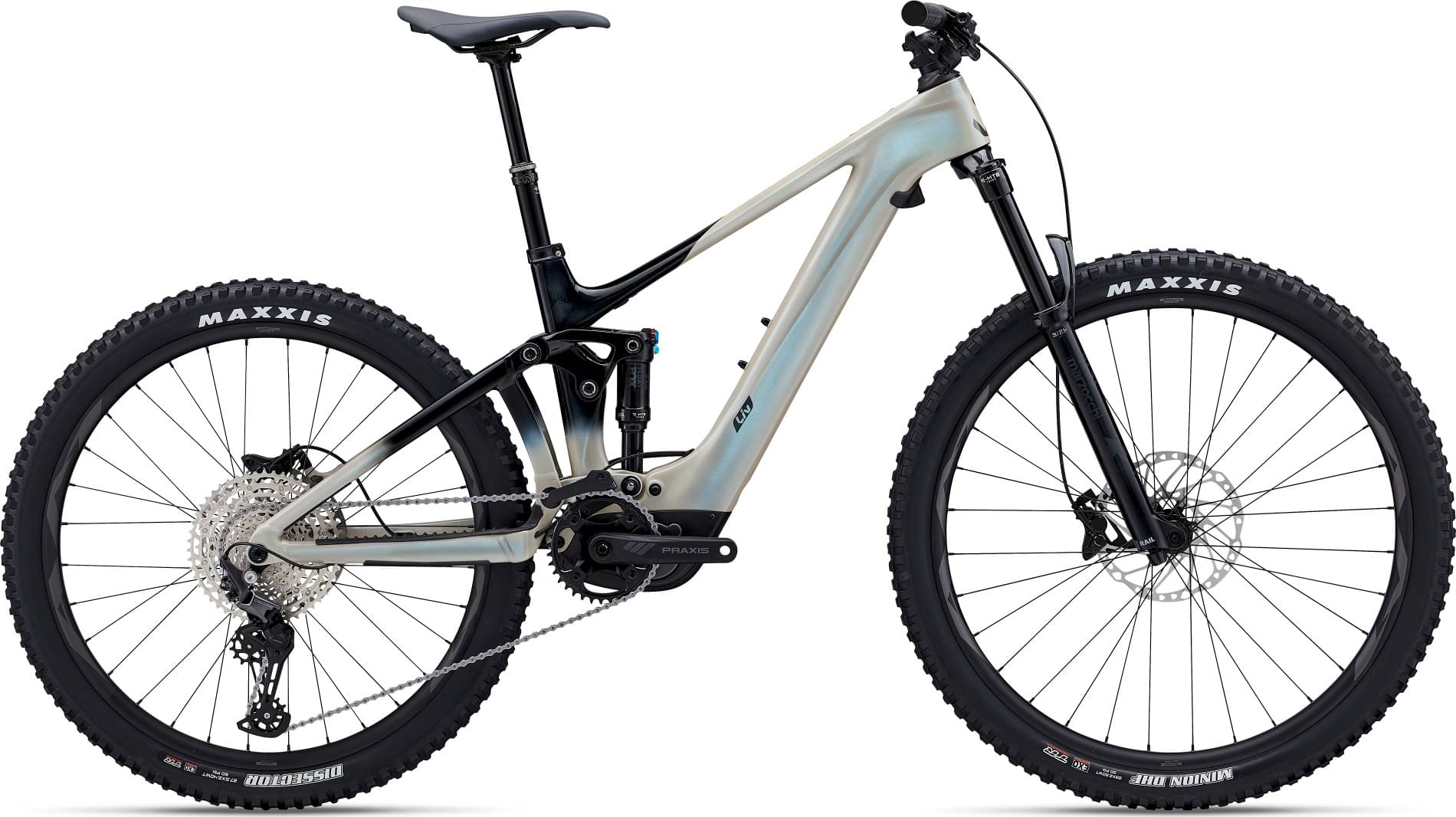

Liv Intrigue X Advanced, E+ Elite 3 2024
2024 E-bike
Estimate price |
5,432$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Marzocchi Bomber Z2
-
Groupset Deore, Praxis -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
152cm - 163cm
XS Low
152cm - 163cm
SM High
158cm - 169cm
SM Low
158cm - 169cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
LG High
170cm - 181cm
LG Low
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Rear Shock
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore 12-speed, Shadow+
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
Shimano Deore
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Crank
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, XS/S:160, M/L:165)
Bottom Bracket
n/a
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
N/A
Wheels
Front Hub
Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
Rear Hub
Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
Rims
AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
Spokes
Sapim E-Lite [R] Race [F], e-bike optimized
Tires
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Brakes
Brakes
Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore, I-spec EV
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L)
Grips
Liv Tactal Pro-E Single Lock-On Grips
Seat
Saddle
Liv Sylvia E+
Seatpost
Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm)
Motor & Battery
Motor
Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.446 mm | 1.36 mm | 1.396 mm | 1.338 mm | 1.376 mm | 1.309 mm | 1.341 mm |
| Bottom Bracket Height | 354 mm | 344 mm | 354 mm | 344 mm | 354 mm | 344 mm | 354 mm | 344 mm |
| Front Center | 729 mm | 729 mm | 744 mm | 743 mm | 755 mm | 755 mm | 783 mm | 783 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm |
| Stack | 601 mm | 606 mm | 601 mm | 606 mm | 605 mm | 611 mm | 619 mm | 625 mm |
| Reach | 427 mm | 419 mm | 442 mm | 434 mm | 452 mm | 444 mm | 473 mm | 466 mm |
| Top Tube Length | 555 mm | 557 mm | 570 mm | 572 mm | 595 mm | 597 mm | 620 mm | 622 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° | 77.2 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 100 mm | 100 mm | 115 mm | 115 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1175 mm | 1174 mm | 1190 mm | 1188 mm | 1201 mm | 1200 mm | 1229 mm | 1228 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm |
| Standover Height | 730 mm | 722 mm | 735 mm | 726 mm | 726 mm | 717 mm | 723 mm | 711 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 152 cm | 158 cm | 158 cm | 164 cm | 164 cm | 170 cm | 170 cm |
| Rider Max Height | 163 cm | 163 cm | 169 cm | 169 cm | 175 cm | 175 cm | 181 cm | 181 cm |
About this model
Intrigue X Advanced, E+ Elite 3 belongs to the Liv E Intrigue model. Liv released 27 e-bikes variations of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Liv Intrigue X Advanced, E+ Elite 3 2024 is the most affordable e-bike of this model and has a price of 5421$. On the other hand, Liv Intrigue X Advanced, E+ Elite 1 2024, is the most expensive and costs 10000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Liv released this model in 2024, its price was 5421$. Comparing the average cost of a Trail e-bike to this one, you will see that Intrigue X Advanced, E+ Elite 3 price is 61.1% more expensive.
Intrigue X Advanced, E+ Elite 3 components
Fork
The Marzocchi Bomber Z2 is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float Performance, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Intrigue X Advanced, E+ Elite 3 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Intrigue X Advanced, E+ Elite 3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 8 sizes. They vary from 152 cm – 181 cm (4.99 ft – 5.94 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Liv model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
