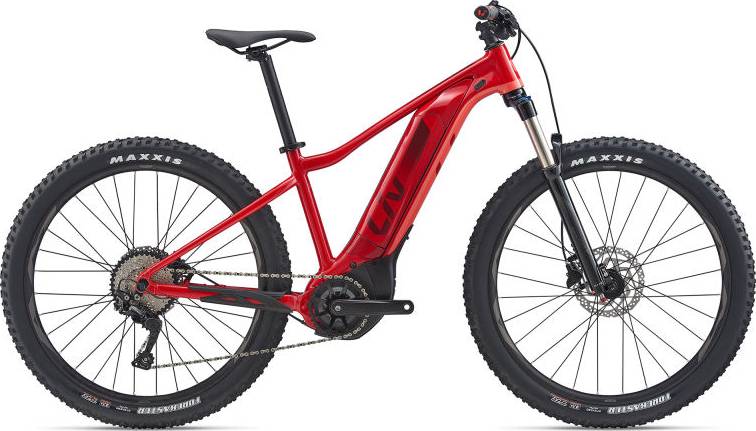

Liv Vall-E+ 2 Electric Bike 2020
2020 E-bike
Estimate price |
3,077$
Weight | 18.82 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminum, Overdrive 1½ - 1?" head tube, 141mm Boost QR, integrated KS18 kickstand mount
Suspension Fork
SR Suntour XCR 34 Boost Coil LO-R 27.5+ 120mm travel, Tapered 1½ - 1?" steerer, lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, 10-Speed, Shadow+
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano HG50-10, 11-42T, 10-Speed
Crank
Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring
Bottom Bracket
N/A
Chain
KMC e.10 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker Boost, [F] 15mm Thru-Axle [R] 148x12mm Thru-axle, e-bike optimized
Rear Hub
Giant eTracker Boost, [F] 15mm Thru-Axle [R] 148x12mm Thru-axle, e-bike optimized
Rims
Giant AM 27.5, Tubeless ready, 30mm inner width, e-bike optimized
Spokes
Stainless steel
Tires
Maxxis Forekaster 27.5x2.6, foldable, 60 TPI, EXO, Tubeless ready
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect TR Riser
Seat
Saddle
Liv Sport
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, 70Nm, 350% tuneable support with automatic smart support
Battery
Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Remote
Giant RideControl ONE, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.62 mm | 1.63 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 646 mm | 656 mm | 672 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 100.2 mm | 100.2 mm | 100.2 mm |
| Stack | 611 mm | 616 mm | 634 mm |
| Reach | 373 mm | 381 mm | 389 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 365 mm | 405 mm | 460 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 115 mm | 135 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1115 mm | 1125 mm | 1141 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Standover Height | 673 mm | 695 mm | 741 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
Vall-E+ 2 Electric Bike is part of the Liv E Vall Eplus model. There are 4 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Liv Vall-E+ 3 Electric Bike 2020 is the cheapest e-bike model and costs 2432$. Liv Vall-E+ 1 Pro Electric Bike 2020 is the most expensive one and costs 3648$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2020 and its price was 2796$. If we compare this with the average Trail e-bike cost we notice that the price is 20.35% lower.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Vall-E+ 2 Electric Bike has a weight of 18.82 kg (41.49 lbs). In other words, this model is 25.93% lighter than the average Trail e-bike.
Overview of components
Fork
The Vall-E+ 2 Electric Bike comes factory-installed with the SunTour XCR 34 fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Vall-E+ 2 Electric Bike e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Liv Vall-E+ 2 Electric Bike e-bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, you can easily find one that suits you.
