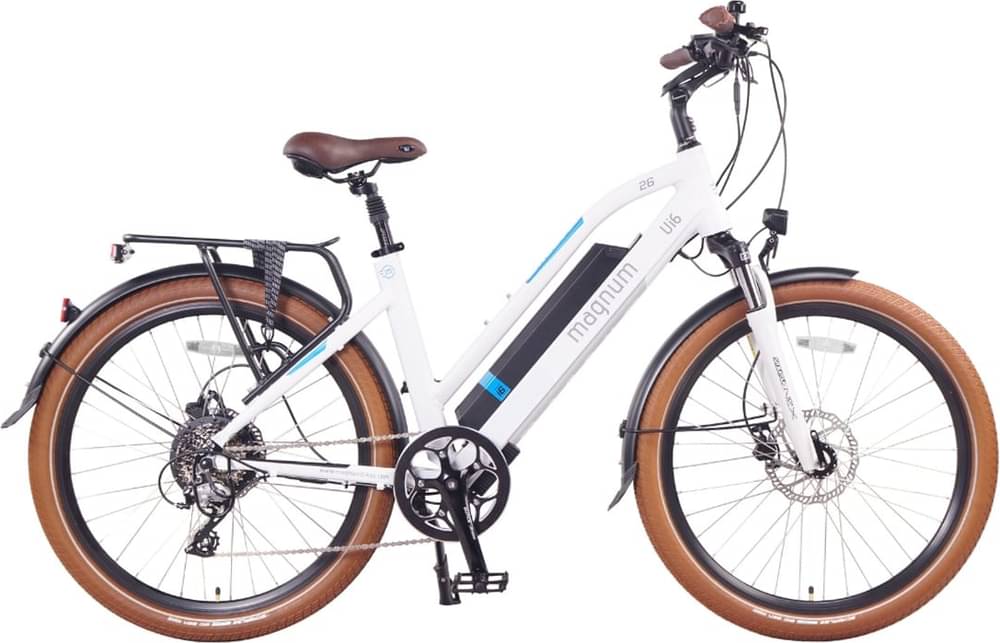

Magnum Ui6 2019
2019 E-bike
Estimate price |
1,699$
Weight | 27.26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor 500W 90Nm hub-drive -
Battery Weight: 9.2 lbs (4.17 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) -
Drivetrain 1 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
SR Suntour NEX Spring Suspension, 63mm Travel, Preload Adjust, 28mm Steel Stanchions, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano Triggers on Right (One-Way High, Three-Shift Low)
Cassette
7 Speed 1x7 Shimano Altus Derailleur, 14-28 Tooth Nickel Plated Cassette
Crank
Prowheel Ounce, Forged Alloy, 170mm Length, Square Taper Bottom Bracket, 48 Tooth Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, Machined Sidewalls, 24.5mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge, Silver with Adjustable Nipples
Tires
Schwalbe Balloon Big Ben, 26" x 2.15" (55-559)
Cockpit
Stem
Promax, Tool-Free Adjustable Angle, 70mm Base Height, 100mm Length, 25.4mm Clamp Diameter, One 15mm Spacer, One 5mm Spacer
Handlebar
Mid-Rise, Aluminum Alloy, 650mm Length
Grips
Ergonomic, Faux Leather, Stitched
Headset
Neco, Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Selle Royal Free Way Royalgel, Comfort Saddle
Seatpost
Promax Suspension (40mm Travel, Preload Adjustment Bolt in Base), Aluminum Alloy
Motor & Battery
Motor
Weight: 10.1 lbs (4.58 kg), Brand: Das-Kit, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 700 watts, Torque: 90 Newton meters
Battery
Weight: 9.2 lbs (4.17 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 18cm |
|---|---|
| Wheels | 26" |
| Rider Min Height | 120 cm |
Model Overview
Ui6 is part of the Magnum E Ui6 model. 3 e-bikes variations carry this model name so far. You can easily view all of the Magnum E Ui6 e-bikes models from 2019, here.
Model range prices
The most economical model, the Magnum Ui6+ 2019 has a starting price of 1699$. Magnum Ui6 2019 on the other hand is the most expensive at 1699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 1699$. In conclusion, this e-bike price is 51.21% smaller than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Ui6 has a weight of 27.26 kg (60.1 lbs). To sum up, it’s 8.17% heavier than the average weight of Commuter e-bikes.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Ui6 has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The wheels on Ui6 are the 26″ aluminum type. These wheels give you great handling over your e-bike. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
