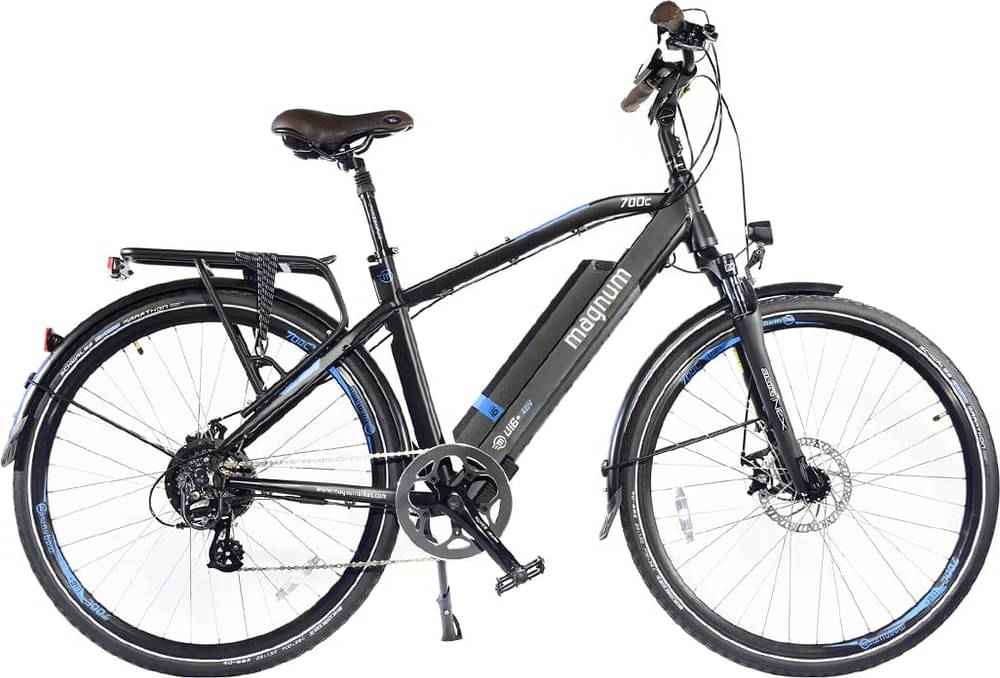

Magnum Ui6+ 2019
2019 E-bike
Estimate price |
1,699$
Weight | 26.71 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor 500W 90Nm hub-drive -
Battery Weight: 9.2 lbs (4.17 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) -
Drivetrain 1 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
SR Suntour NEX Spring Suspension, 63mm Travel, Preload Adjust, 28mm Steel Stanchions, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano Triggers on Right (One-Way High, Three-Shift Low)
Cassette
7 Speed 1x7 Shimano Altus Derailleur, 14-28 Tooth Nickel Plated Cassette
Crank
Prowheel Ounce, Forged Alloy, 170mm Length, Square Taper Bottom Bracket, 48 Tooth Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, Machined Sidewalls, 24.5mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge, Silver with Adjustable Nipples
Tires
Schwalbe Marathon, 28" x 1.5" (40-622) 700x38c
Cockpit
Stem
Promax, Tool-Free Adjustable Angle, 70mm Base Height, 100mm Length, 25.4mm Clamp Diameter, One 15mm Spacer, Two 10mm Spacers, One 5mm Spacer
Handlebar
Mid-Rise, Aluminum Alloy, 670mm Length
Grips
Ergonomic, Faux Leather, Stitched
Headset
Neco, Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Selle Royal Free Way Royalgel, Comfort Saddle
Seatpost
Promax Suspension (40mm Travel, Preload Adjustment Bolt in Base), Aluminum Alloy
Motor & Battery
Motor
Weight: 10.1 lbs (4.58 kg), Brand: Das-Kit, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 700 watts, Torque: 90 Newton meters
Battery
Weight: 9.2 lbs (4.17 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 19" |
|---|---|
| Wheels | 700 |
| Rider Min Height | 120 cm |
Model Overview
Ui6+ completes the Magnum E Ui6 model. There are 3 e-bikes that carry this model name. You can easily view all of the Magnum E Ui6 e-bikes models from 2019, here.
Model range prices
Magnum Ui6+ 2019 is the most economical model, with a starting price of 1699$. Magnum Ui6 2019 on the other hand costs 1699$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2019 and its price was 1699$. In conclusion, this e-bike price is 51.21% smaller than the price of the average Commuter e-bike.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Magnum Ui6+ it’s weighing 26.71 kg (58.89 lbs). At this weight, is a bit heavier than average. To sum up, it’s 5.99% heavier than the average weight of Commuter e-bikes.
Ui6+ components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
As for the wheels, Magnum Ui6+ 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ui6+ comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
