Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 50mm -
Fork SunTour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts
Suspension Fork
SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
Drivetrain
Rear Derailleur
Shimano Altus, 7-Speed
Front Derailleur
-
Shift Levers
Shimano Revo Twist 1x7-Speed
Cassette
Shimano HG-20 7-Speed, 12-32T
Crank
Forged Alloy, 30T, 152mm, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z50
Pedals
Kids Specific Nylon Pedal
Wheels
Front Hub
Formula, 32H
Rear Hub
Formula, 32H
Rims
Marin, Double Wall Alloy
Spokes
14g Stainless Steel
Tires
Vee Tire Crown Gem, 24x2.25”, Wire Bead
Brakes
Brakes
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Brake Levers
Kids Specific Short Reach Alloy Lever
Cockpit
Stem
Marin Alloy, 60mm
Handlebar
Marin Riser, 30mm Rise, 590mm Width
Grips
Marin Dual Density
Headset
FSA, Threaded
Seat
Saddle
Marin Kids MTB
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.51 mm |
| Bottom Bracket Height | 283 mm |
| Front Center | 548 mm |
| Rake | 40 mm |
| Stack | 508.75 mm |
| Reach | 337.92 mm |
| Top Tube Length | 491 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 321 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 406 mm |
| Wheelbase | 952 mm |
| Bottom Bracket Drop | 25 mm |
| Standover Height | 587 mm |
| Wheels | 24" |

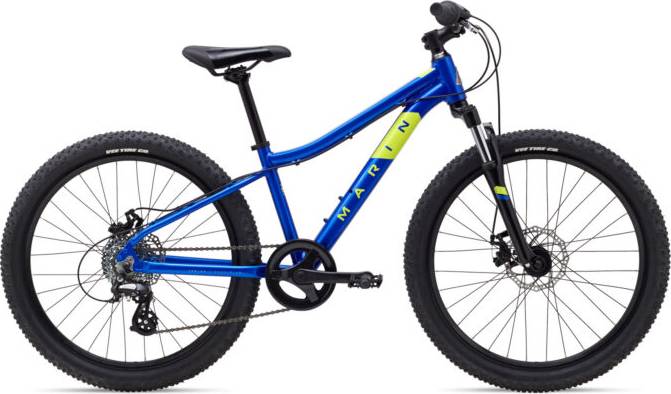

Model Overview
Bayview Trail 24” completes the Marin Bayview model. Marin launched 17 bikes of this model so far. Take a sneak peek at all Marin Bayview bikes models from 2020, by clicking here.
Model range prices
Marin Bayview Trail 24” 2020 is the cheapest bike model and costs 439$. Marin Bayview Trail 2020 is the most expensive one and costs 459$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Mountain bikes
Our math shows that the average cost of a dependable Mountain bike is 616$. However, even though the average price of a Mountain bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Marin Bayview Trail 24” price was 439$. Comparing the average cost of a Mountain bike to this one, you will see that Bayview Trail 24” price is 40.32% lower.
Bayview Trail 24” components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Bayview Trail 24” model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
