Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM HLO
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 159cm
SM
156cm - 165cm
MD
172cm - 181cm
MD
172cm - 181cm
LG
175cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Suspension Fork
SR Suntour XCM HLO DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
Drivetrain
Rear Derailleur
Shimano Altus, 8-Speed
Front Derailleur
Altus Double
Shift Levers
Shimano Altus 2x8
Cassette
SunRace 8-Speed, 11-34T
Crank
Alloy Crank, Steel Chainrings, 36/22T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z-8.3
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 32H
Rear Hub
Forged Alloy, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Tires
MTB, 27.5/29x2.25"
Brakes
Brake Levers
Tektro M275 Hydraulic Disc
Cockpit
Stem
Marin Alloy, 31.8mm Clamp, 45mm
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.36 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 311.5 mm | 311.5 mm | 311.5 mm |
| Front Center | 696 mm | 713 mm | 725 mm | 744 mm | 766 mm | 783 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 100 mm | 100 mm | 100 mm | 95 mm | 95 mm | 95 mm |
| Stack | 592.7 mm | 597.3 mm | 602 mm | 627.3 mm | 632 mm | 636.5 mm |
| Reach | 418 mm | 433 mm | 443 mm | 443 mm | 463 mm | 478 mm |
| Top Tube Length | 583 mm | 599 mm | 610.5 mm | 617.5 mm | 638.8 mm | 655 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 330 mm | 381 mm | 431 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1114 mm | 1131 mm | 1143 mm | 1175 mm | 1197 mm | 1214 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 637 mm | 657 mm | 703 mm | 712 mm | 742 mm | 772 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 156 cm | 172 cm | 172 cm | 175 cm | 181 cm |
| Rider Max Height | 159 cm | 165 cm | 181 cm | 181 cm | 184 cm | 190 cm |
About this model

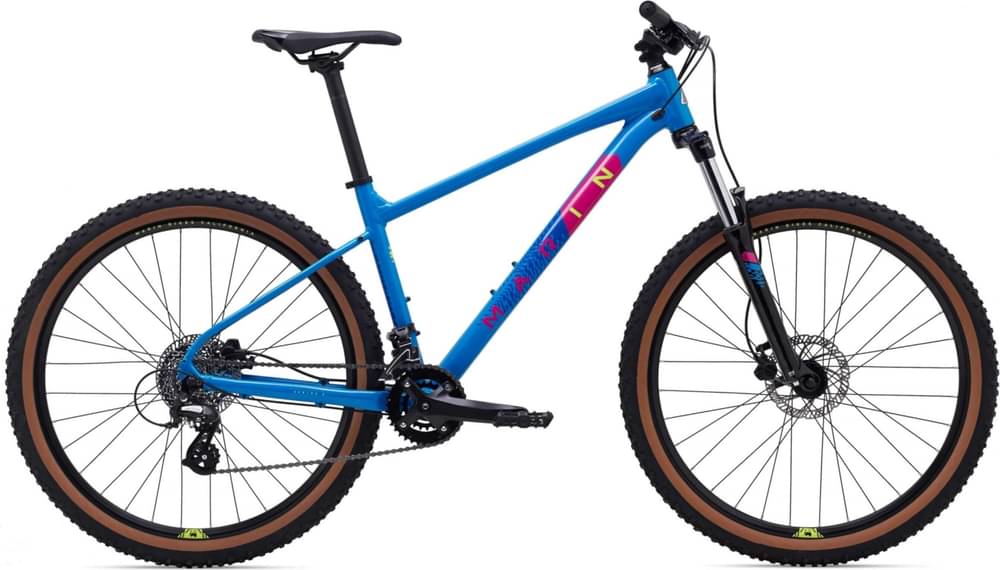

Bobcat Trail 3 is a Marin Bobcat model. There are 36 bikes that carry this model name. You can easily view all of the Marin Bobcat bikes models from 2022, here.
Model range prices
Marin Bobcat Trail 3 2022 is the cheapest bike model and costs 819$. Marin Bobcat Trail 5 2022 is the most expensive one and costs 1129$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Marin Bobcat Trail 3 price was 819$. If we compare this with the average Trail bike cost we notice that the price is 237.24% lower.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Bobcat Trail 3 components
Fork
Marin Bobcat Trail 3 2022 bike is equipped with the SunTour XCM HLO fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Bobcat Trail 3 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Marin Bobcat Trail 3 bike has 6 sizes, in the range of 147 cm – 190 cm (4.82 ft – 6.23 ft). In conclusion, finding one for you shouldn’t be a problem.
