Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
169cm - 180cm
MD
169cm - 180cm
LG
175cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Suspension Fork
SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5") and 46mm (29") Offsets
Drivetrain
Rear Derailleur
Shimano Deore 11-Speed w/Clutch
Front Derailleur
-
Shift Levers
Shimano Deore 11-Speed
Cassette
SunRace 11-Speed, 11-51T
Crank
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X11
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, Disc, 32H
Rear Hub
Forged Alloy, Disc, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Tires
WTB Trailboss Comp, 27.5/29x2.25”, Wire Bead
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano BL-MT201
Cockpit
Stem
Marin Alloy, 31.8mm Clamp, 45mm
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 311.5 mm | 311.5 mm | 311.5 mm |
| Front Center | 713 mm | 725 mm | 744 mm | 766 mm | 783 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 100 mm | 100 mm | 95 mm | 95 mm | 95 mm |
| Stack | 597.3 mm | 602 mm | 627.3 mm | 632 mm | 636.5 mm |
| Reach | 433 mm | 443 mm | 443 mm | 463 mm | 478 mm |
| Top Tube Length | 599 mm | 610.5 mm | 617.5 mm | 638.8 mm | 655 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1131 mm | 1143 mm | 1175 mm | 1197 mm | 1214 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 657 mm | 703 mm | 712 mm | 742 mm | 772 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 169 cm | 169 cm | 175 cm | 181 cm |
| Rider Max Height | 165 cm | 180 cm | 180 cm | 184 cm | 190 cm |

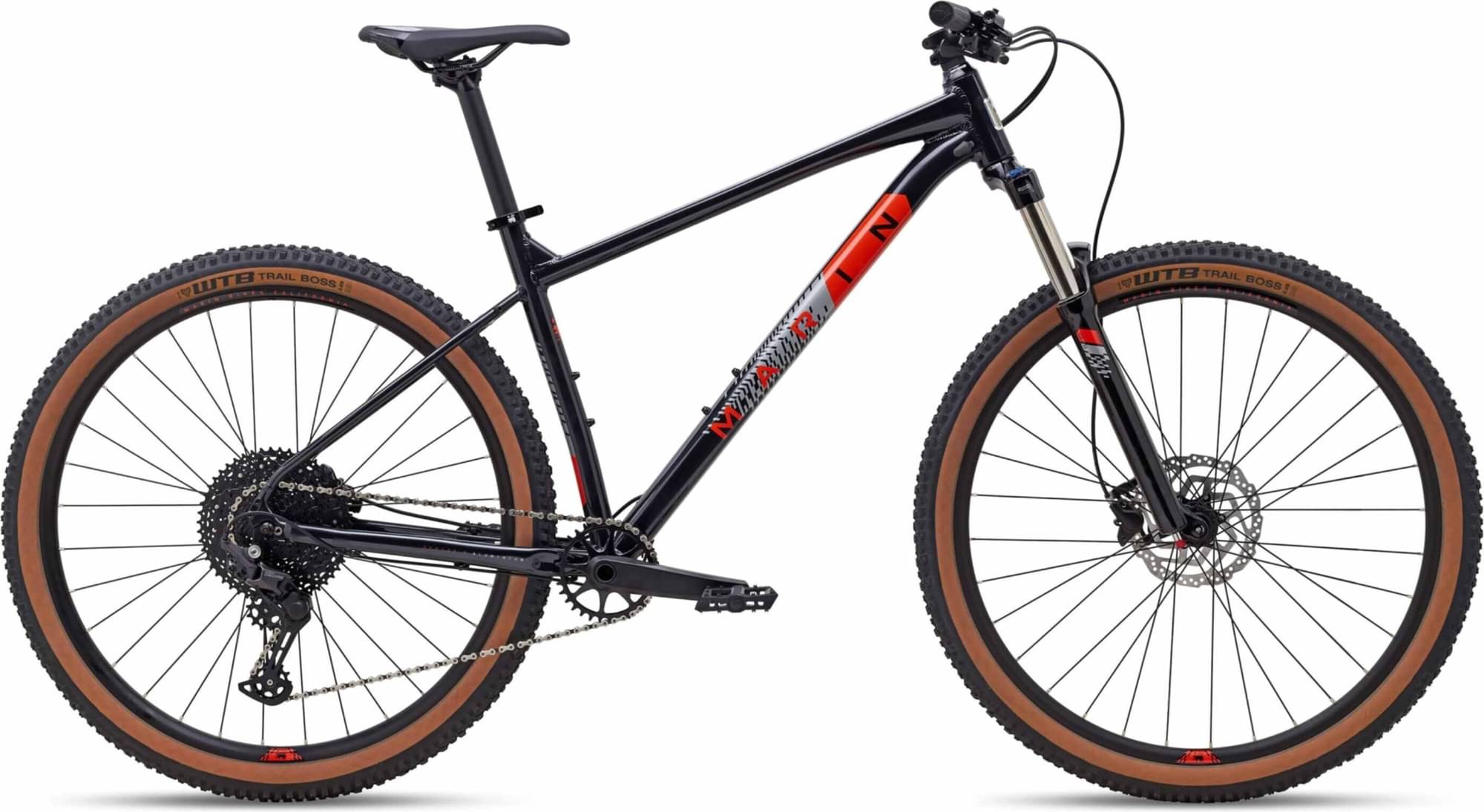

About this model
Bobcat Trail 5 is a Marin Bobcat model. Marin launched 36 bikes of this model so far. Take a sneak peek at all Marin Bobcat bikes models from 2022, by clicking here.
Model range prices
Marin Bobcat Trail 3 2022 is the most economical model, with a starting price of 819$. Marin Bobcat Trail 5 2022 on the other hand costs 1129$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Marin released this model in 2022, its price was 1129$. Doing a quick comparison, we notice that Bobcat Trail 5 price is 144.64% smaller than the average cost of a Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Bobcat Trail 5 components
Fork
Marin Bobcat Trail 5 2022 bike is equipped with the Suntour XCR fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Bobcat Trail 5 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Bobcat Trail 5 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 157 cm – 190 cm (5.15 ft – 6.23 ft). In conclusion, finding one for you shouldn’t be a problem.
