Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM HLO
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Suspension Fork
SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
Drivetrain
Rear Derailleur
Shimano Altus, 9-Speed, Shadow Design
Front Derailleur
Shimano Altus Double
Shift Levers
Shimano Altus 2x9
Cassette
SunRace 9-Speed, 11-36T
Crank
Shimano FC-MT101-2, 36/22T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Spokes
14g Black Stainless Steel
Tires
WTB Trailboss Comp, 27.5/29x2.25, Wire Bead
Brakes
Brakes
Tektro M275 Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro M275 Hydraulic Disc
Cockpit
Stem
Marin Alloy, 31.8 Bar Bore, 45mm
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.42 mm | 1.37 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 311.5 mm | 311.5 mm | 311.5 mm | 311.5 mm |
| Front Center | 713 mm | 725 mm | 744 mm | 766 mm | 783 mm | 800 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 597.3 mm | 602 mm | 627.3 mm | 632 mm | 636.5 mm | 641 mm |
| Reach | 433 mm | 443 mm | 443 mm | 463 mm | 478 mm | 493 mm |
| Top Tube Length | 599 mm | 610.5 mm | 617.5 mm | 638.8 mm | 655 mm | 671.3 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 431 mm | 482 mm | 520 mm | 559 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1131 mm | 1143 mm | 1175 mm | 1197 mm | 1214 mm | 1231 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 657 mm | 703 mm | 712 mm | 742 mm | 772 mm | 805 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

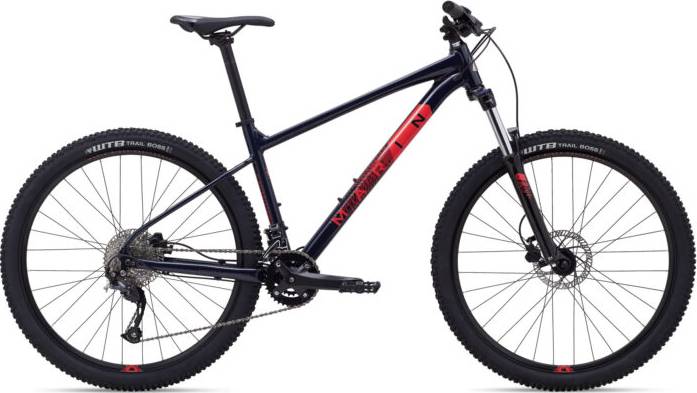

Bobcat Trail 4 is a Marin Bobcat model. Marin released 36 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Marin Bobcat Trail 3 2020 has a starting price of 599$. Marin Bobcat Trail 5 2020 on the other hand is the most expensive at 899$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Marin released this model in 2020, its price was 699$. In conclusion, this bike price is 295.14% lower than the price of the average Trail bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Bobcat Trail 4 components
Fork
The fork installed on this bike is the SunTour XCM HLO model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Bobcat Trail 4 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Bobcat Trail 4 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
