Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 188cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Suspension Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Drivetrain
Rear Derailleur
Shimano Deore, RDM6100, 12-Speed
Front Derailleur
-
Shift Levers
Shimano Deore, SLM6100, 12-Speed
Cassette
Shimano Deore, CSM6100, 12-Speed, 10-51T
Crank
Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket
Sealed Outboard Bearing
Chain
KMC X12
Pedals
Marin Oso OE Flat
Wheels
Front Hub
Forged Aluminum, 100x12mm, Disc, 32H
Rear Hub
Shimano Forged Aluminum, 142x12mm, Microspline, Disc, 32H
Rims
Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Tires
WTB Riddler, 700Cx45mm
Brakes
Brakes
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Brake Levers
Tektro Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin MiniRiser
Grips
Marin MTB
Headset
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seat
Saddle
Marin DSX
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.42 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 279.5 mm | 279.5 mm | 279.5 mm | 279.5 mm |
| Front Center | 612 mm | 648 mm | 673 mm | 698 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 540.4 mm | 568.5 mm | 596.6 mm | 624.7 mm |
| Reach | 376 mm | 401 mm | 416 mm | 431 mm |
| Top Tube Length | 532.1 mm | 565.2 mm | 588.2 mm | 611.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 520 mm | 558 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 150 mm | 180 mm | 210 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1020 mm | 1056 mm | 1081 mm | 1106 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 654 mm | 696 mm | 726 mm | 754 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 185 cm |
| Rider Max Height | 169 cm | 179 cm | 188 cm | 193 cm |
About this model

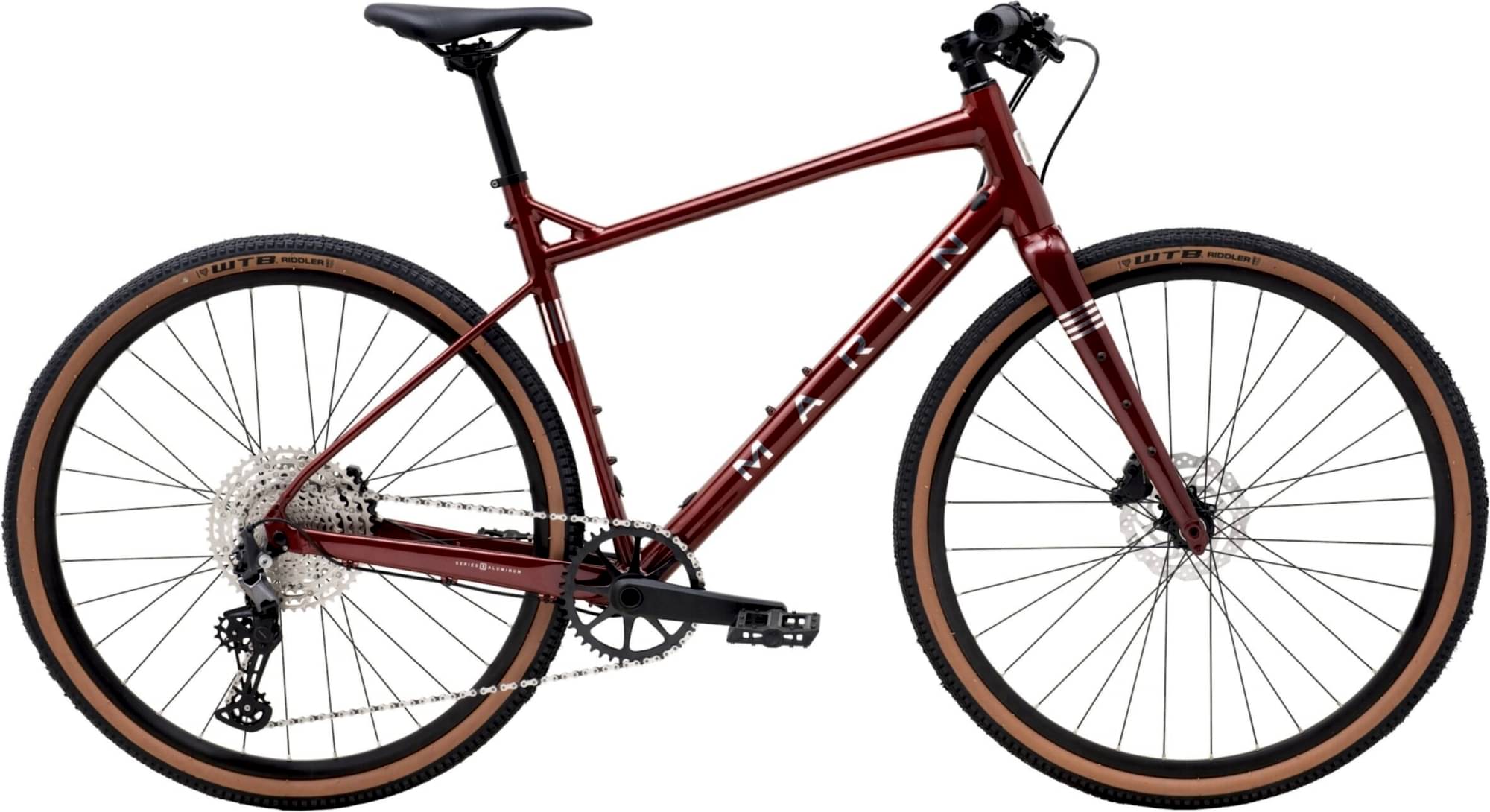

DSX 2 is part of the Marin Dsx model. There are 15 bikes that carry this model name. You can easily view all of the Marin Dsx bikes models from 2024, here.
Model range prices
Marin DSX 2024 is the most economical model, with a starting price of 899$. Marin DSX 3 2024 on the other hand costs 1899$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1289$. Comparing the average cost of a Gravel bike to this one, you will see that DSX 2 price is 91% lower.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on DSX 2 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DSX 2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
DSX 2 comes in 4 sizes, that range from 157 cm – 193 cm (5.15 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
