Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, Shimano -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Suspension Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Drivetrain
Rear Derailleur
Shimano Sora 9-Speed
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora 2x9-Speed
Cassette
SunRace 9-Speed, 11-32T
Crank
Shimano R345 Octalink Compact, 50/34T
Bottom Bracket
Shimano Octalink V2 Cartridge
Chain
KMC X9
Pedals
Marin Oso OEM Nylon Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible
Tires
Vee Tire Co. Zilent, 700x35
Brakes
Brakes
Mechanical Disc
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Butted Alloy, Compact 12º Flared Drop
Grips
Marin Perforated Tape
Headset
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seat
Saddle
Marin Beyond Road Concept
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.54 mm | 1.56 mm | 1.56 mm | 1.55 mm | 1.6 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 588 mm | 594 mm | 604 mm | 620 mm | 640 mm | 650 |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 64 mm | 63 mm | 64 mm | 65 mm | 64 mm |
| Stack | 544 mm | 560 mm | 574 mm | 593 mm | 612 mm | 633 mm |
| Reach | 359 mm | 364 mm | 369 mm | 379 mm | 394 mm | 396 mm |
| Top Tube Length | 512 mm | 527 mm | 542 mm | 557 mm | 577 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1000 mm | 1006 mm | 1016 mm | 1032 mm | 1052 mm | 1062 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Standover Height | 706 mm | 724 mm | 747 mm | 767 mm | 786 mm | 806 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

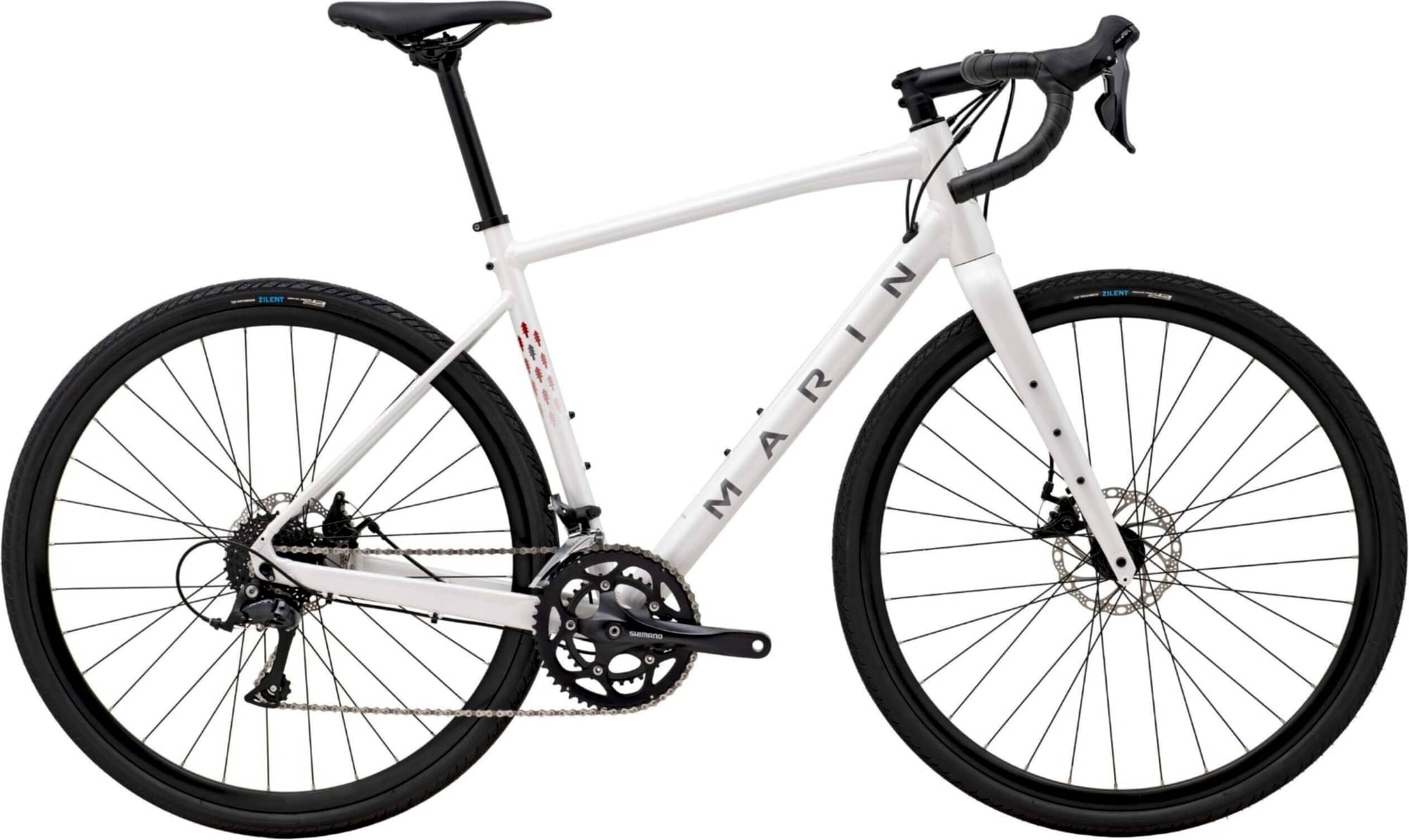

Gestalt 1 is a Marin Gestalt model. 42 bikes variations carry this model name so far. You can easily view all of the Marin Gestalt bikes models from 2024, here.
Model range prices
The most economical model, the Marin Gestalt 2024 has a starting price of 999$. Marin Gestalt 2 2024 on the other hand is the most expensive at 1599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Marin Gestalt 1 price was 1299$. Comparing the average cost of a Gravel bike to this one, you will see that Gestalt 1 price is 89.53% smaller.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Gestalt 1 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Gestalt 1 2024 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Gestalt 1 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
