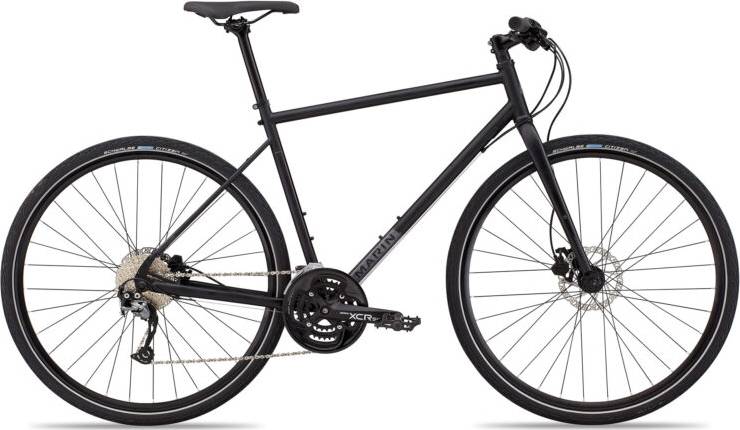

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Alivio, Altus -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 167cm
MD
167cm - 175cm
LG
175cm - 182cm
XL
182cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 Butted CrMo, 29” Wheels, Integrated Headset, Disc Brake, Fender and Rack Mounts
Suspension Fork
CrMo, Fender and Rack Eyelets, Disc Brake
Drivetrain
Rear Derailleur
Shimano Alivio Shadow 9-Speed
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus 3x9-Speed
Cassette
Shimano HG300 9-Speed, 12-36T
Crank
SR Suntour XCR6, 48/36/26T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Pedals
Commuter Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum, Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Speedster, 700x40, Puncture Protection, Reflective Sidewall, Wire Bead
Brakes
Brakes
Shimano BR-M201 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Alloy Flat Top Riser
Grips
Marin Custom
Headset
FSA No.8D, Sealed Cartridge Bearings
Seat
Saddle
Marin Fitness
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.37 mm | 1.35 mm | 1.37 mm | 1.42 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 617 mm | 634 mm | 650 | 654 mm | 658 mm |
| Rake | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 67 mm | 65 mm | 67 mm | 66 mm |
| Stack | 565 mm | 572 mm | 581 mm | 591 mm | 610 mm |
| Reach | 385 mm | 418 mm | 430 mm | 432 mm | 429 mm |
| Top Tube Length | 548 mm | 588 mm | 603 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 521 mm | 559 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 123 mm | 123 mm | 133 mm | 143 mm | 163 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1050 mm | 1068 mm | 1084 mm | 1088 mm | 1092 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 661 mm | 703 mm | 746 mm | 777 mm | 809 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 175 cm | 182 cm | cm |
| Rider Max Height | 167 cm | 175 cm | 182 cm | 188 cm | cm |
Model Overview
Muirwoods is part of the Marin Muirwoods model. There are 13 bikes that carry this model name. You can easily view all of the Marin Muirwoods bikes models from 2020, here.
Model range prices
Marin Muirwoods 2020 is the most affordable bike of this model and has a price of 749$. On the other hand, Marin Muirwoods RC 2020, is the most expensive and costs 999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
Our math shows that the average cost of a dependable Commuter bike is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 749$. Doing a quick comparison, we notice that Muirwoods price is 1.74% smaller than the average cost of a Commuter bike.
Overview of components
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Muirwoods model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
