Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 156cm
SM
153cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
XL
184cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Commute, 6061 Aluminum, 700C Wheels, Disc Brake, Fender and Rack Mounts
Suspension Fork
Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
Drivetrain
Shift Levers
Shimano Nexus Twist Shifter 3-Speed
Cassette
Shimano Nexus Cog, 19T
Crank
Forged Alloy, 42T, 140mm, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z410RB w/ Anti-Corrosion Coating
Pedals
Commute Platform
Wheels
Front Hub
Forged Aluminum Alloy, 32H
Rear Hub
Shimano Nexus 3D 3-Speed Internally Geared Hub, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Baldy, 700x32, Puncture Protection, Reflective Sidewall, Wire Bead
Brakes
Brakes
Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin Alloy Flat
Grips
Dual Density Ergonomic
Headset
FSA No.8B
Seat
Saddle
Marin Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 591 mm | 606 mm | 621 mm | 636 mm | 656 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 555.89 mm | 574.97 mm | 594.04 mm | 613.11 mm | 641.73 mm |
| Reach | 382.74 mm | 392.09 mm | 401.44 mm | 409.94 mm | 421.19 mm |
| Top Tube Length | 548 mm | 563 mm | 578 mm | 598 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm | 225 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1015 mm | 1030 mm | 1046 mm | 1060 mm | 1081 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 657 mm | 703 mm | 748 mm | 781 mm | 817 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 153 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 156 cm | 167 cm | 177 cm | 187 cm | 190 cm |
About this model

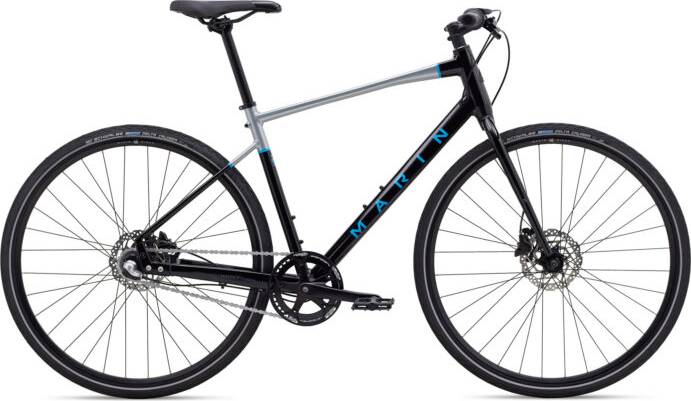

Presidio 1 is a Marin Presidio model. There are 18 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Marin Presidio 1 2020 is the cheapest bike model and costs 679$. Marin Presidio 4 DLX 2020 is the most expensive one and costs 2349$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Marin Presidio 1 price was 679$. Comparing this to the average Commuter bike price, we see that the price is 12.22% smaller.
Presidio 1 components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The wheels on Presidio 1 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Presidio 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 149 cm – 190 cm (4.89 ft – 6.23 ft). In conclusion, it won’t take much to find one that’s right for you.
