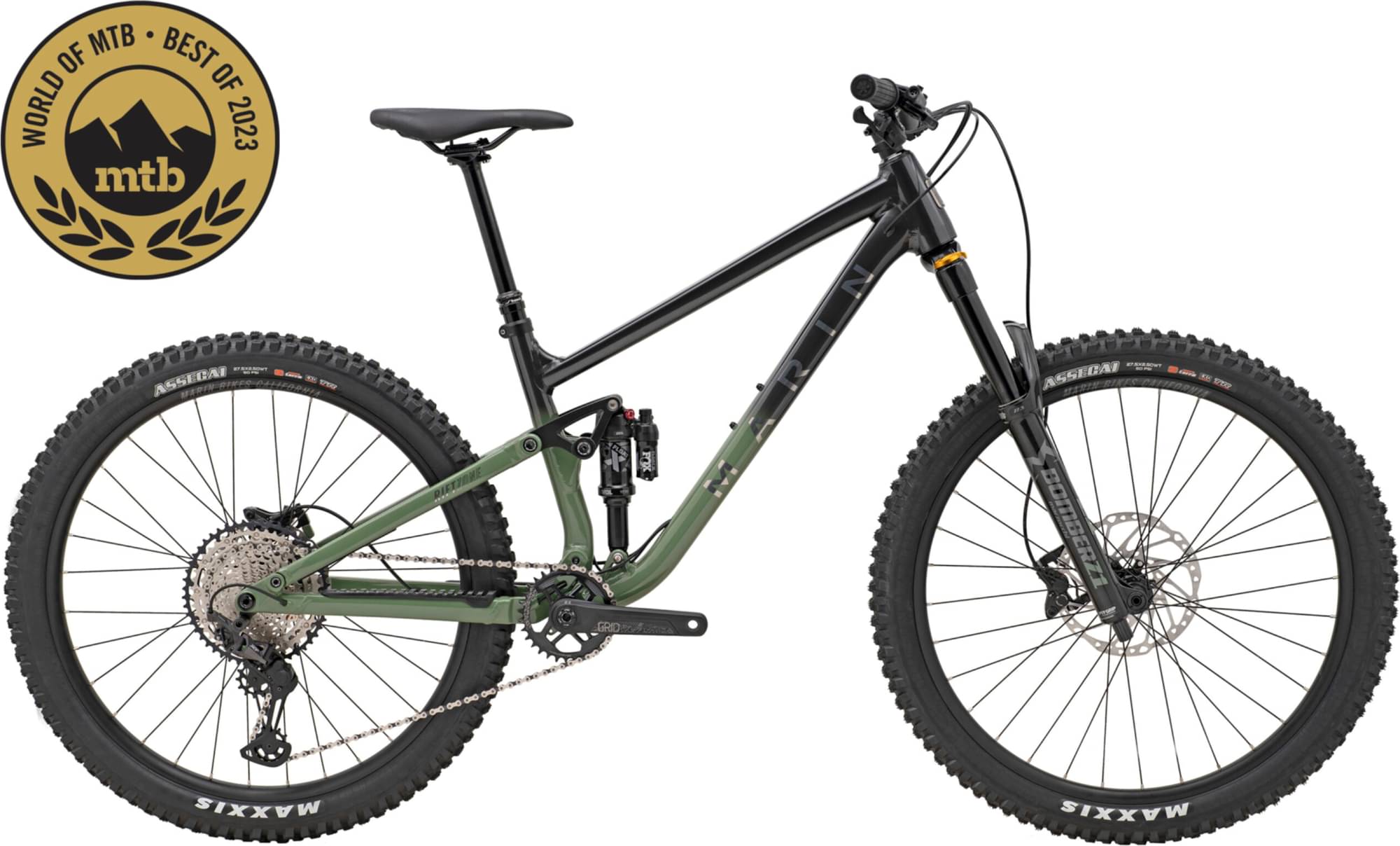

Marin Rift Zone 27.5″ XR 2022
2022 Mountain
Estimate price |
3,543$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
Marzocchi Bomber Z1 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 37mm Offset
Drivetrain
Rear Derailleur
Shimano XT, 12-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano SLX, 12-Speed, SL-7100R
Cassette
SunRace, 12-Speed, 11-51T, ED Black
Crank
FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Bottom Bracket
MegaExo 73mm BSA
Chain
KMC X-12 Silver and Black
Pedals
-
Wheels
Front Hub
Forged Alloy, 110x15mm, Disc, 32H
Rear Hub
Forged Alloy, 148x12mm, Disc, 32H, HG Freehub Body
Rims
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Tires
Maxxis Assegai, 27.5x2.5", MAXX TERRA, EXO, Tubeless Compatible
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano MT4100
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock On
Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.29 mm | 1.23 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 736 mm | 758 mm | 780 mm | 812 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 607.7 mm | 612.2 mm | 616.8 mm | 621.3 mm |
| Reach | 437 mm | 457 mm | 477 mm | 507 mm |
| Top Tube Length | 575.7 mm | 596.7 mm | 617.8 mm | 648.8 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1171 mm | 1193 mm | 1215 mm | 1248 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 684 mm | 694 mm | 689 mm | 694 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rift Zone 27.5″ XR belongs to the Marin Rift model. Marin released 72 bikes variations of this model so far. Take a sneak peek at all Marin Rift bikes models from 2022, by clicking here.
Model range prices
Marin Rift Zone 29 1 2022 is the cheapest bike model and costs 1899$. Marin Rift Zone 29 Carbon XR 2022 is the most expensive one and costs 4859$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Marin released this model in 2022, its price was 3184$. In conclusion, this bike price is 15.28% higher than the price of the average Trail bike.
Rift Zone 27.5″ XR components
Fork
Marin Rift Zone 27.5″ XR 2022 bike is equipped with the Marzocchi Bomber Z1 fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Rift Zone 27.5″ XR are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rift Zone 27.5″ XR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Rift Zone 27.5″ XR. Therefore, climbing or descending will be a breeze.
