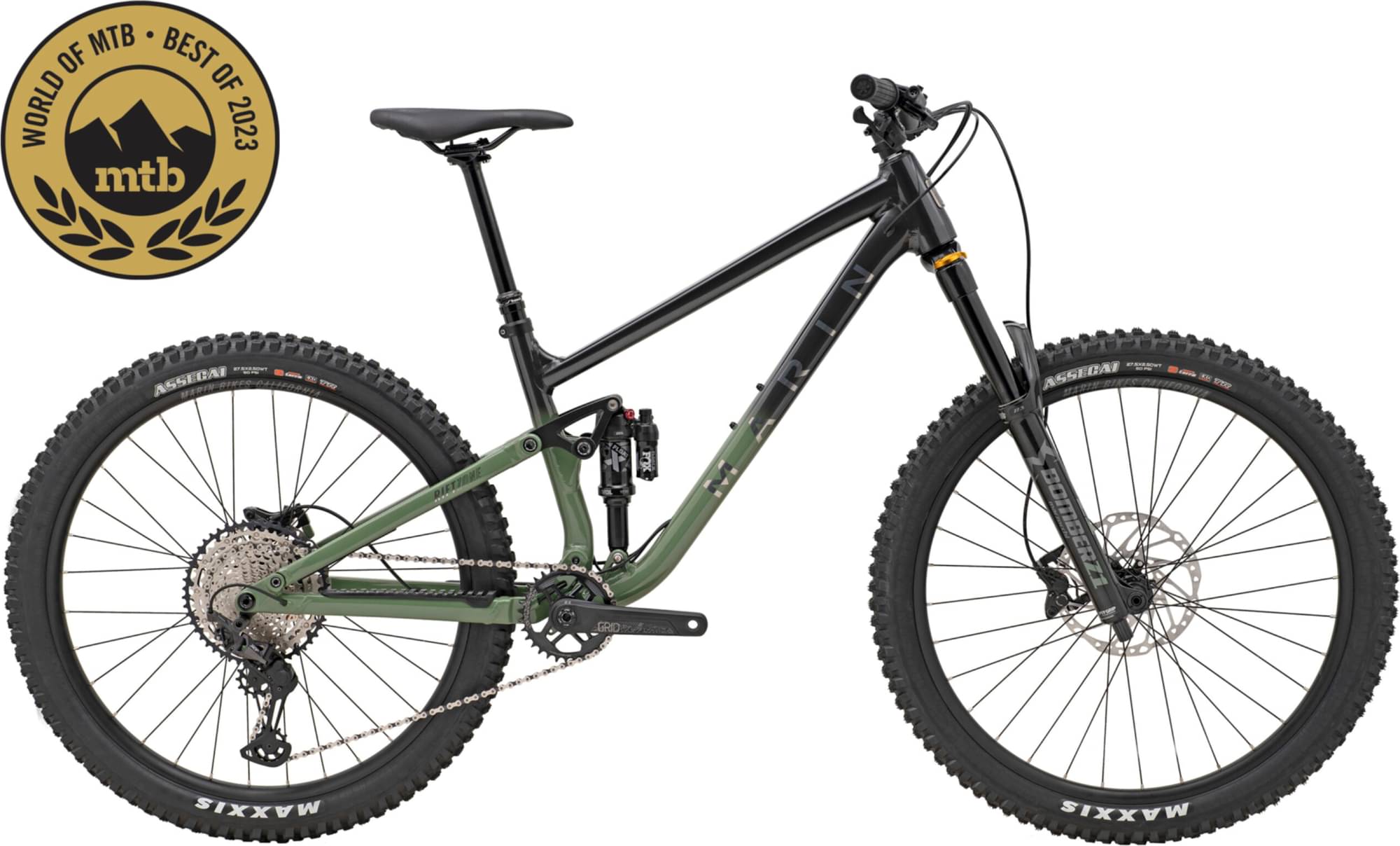

Marin Rift Zone 27.5″ XR 2023
2023 Mountain
Estimate price |
3,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
Marzocchi Bomber Z1 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 37mm Offset
Drivetrain
Rear Derailleur
Shimano XT, 12-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano SLX, 12-Speed, SL-7100R
Cassette
SunRace, 12-Speed, 11-51T, ED Black
Crank
FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Bottom Bracket
MegaExo 73mm BSA
Chain
KMC X-12 Silver and Black
Pedals
-
Wheels
Front Hub
Forged Alloy, 110x15mm, Disc, 32H
Rear Hub
Forged Alloy, 148x12mm, Disc, 32H, HG Freehub Body
Rims
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Tires
Maxxis Assegai, 27.5x2.5", MAXX TERRA, EXO, Tubeless Compatible
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano MT4100
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock On
Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.29 mm | 1.23 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 736 mm | 758 mm | 780 mm | 812 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 607.7 mm | 612.2 mm | 616.8 mm | 621.3 mm |
| Reach | 437 mm | 457 mm | 477 mm | 507 mm |
| Top Tube Length | 575.7 mm | 596.7 mm | 617.8 mm | 648.8 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1171 mm | 1193 mm | 1215 mm | 1248 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 684 mm | 694 mm | 689 mm | 694 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 184 cm |
| Rider Max Height | 172 cm | 179 cm | 187 cm | 193 cm |
About this model
Rift Zone 27.5″ XR is part of the Marin Rift model. There are 72 bikes that carry this model name. Take a sneak peek at all Marin Rift bikes models from 2023, by clicking here.
Model range prices
Marin Rift Zone Jr 26″ 2023 is the most economical model, with a starting price of 1699$. Marin Rift Zone 29″ Carbon XR 2023 on the other hand costs 4859$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 3499$. If we compare this with the average Trail bike cost we notice that the price is 26.68% more expensive.
Rift Zone 27.5″ XR components
Fork
The Marzocchi Bomber Z1 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Rift Zone 27.5″ XR bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Rift Zone 27.5″ XR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 162 cm – 193 cm (5.31 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
