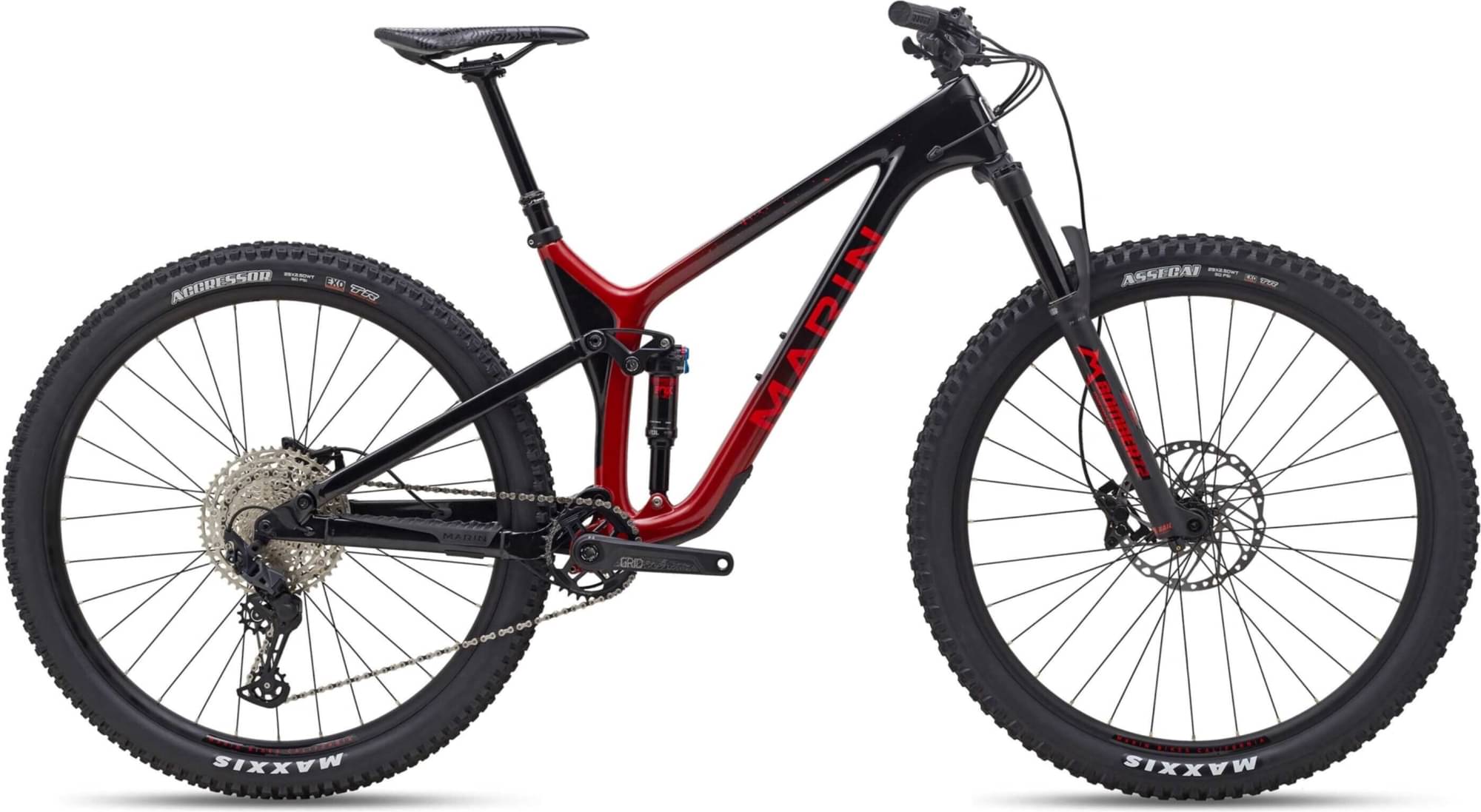

Marin Rift Zone 29 Carbon 1 2022
2022 Mountain
Estimate price |
3,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Marzocchi Bomber Z2
-
Groupset SLX, FSA -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Drivetrain
Rear Derailleur
Shimano SLX, 12-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano SLX, 12-Speed, SL-7100R
Cassette
SunRace, 12-Speed, 11-51T, ED Black
Crank
New FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Bottom Bracket
Mego EXO 73mm BSA
Chain
KMC X-12 Silver and Black
Pedals
-
Wheels
Front Hub
Forged Alloy, 110x15mm, Disc, 32H
Rear Hub
Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body
Rims
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Tires
Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano MT401 Hydraulic Lever
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Single Clamp Locking
Headset
FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.27 mm | 1.19 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 736 mm | 763 mm | 790 mm | 829 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 122 mm |
| Stack | 609.6 mm | 614.15 mm | 618.7 mm | 623.25 mm |
| Reach | 437 mm | 462 mm | 487 mm | 522 mm |
| Top Tube Length | 587.24 mm | 613.36 mm | 639.51 mm | 675.65 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1165 mm | 1193 mm | 1220 mm | 1259 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 650 | 657 mm | 666 mm | 669 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 187 cm | 193 cm |
Model Overview
Rift Zone 29 Carbon 1 is part of the Marin Rift model. 72 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Marin Rift Zone 29 1 2022 is the most economical model, with a starting price of 1899$. Marin Rift Zone 29 Carbon XR 2022 on the other hand costs 4859$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 3799$. Comparing this to the average Trail bike price, we see that the price is 37.55% more expensive.
Rift Zone 29 Carbon 1 components
Fork
The fork installed on this bike is the Marzocchi Bomber Z2 model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Rift Zone 29 Carbon 1 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rift Zone 29 Carbon 1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Rift Zone 29 Carbon 1 comes in 4 sizes, that range from 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Marin Rift Zone 29 Carbon 1 comes with a dropper post. Therefore, climbing or descending will be a breeze.
