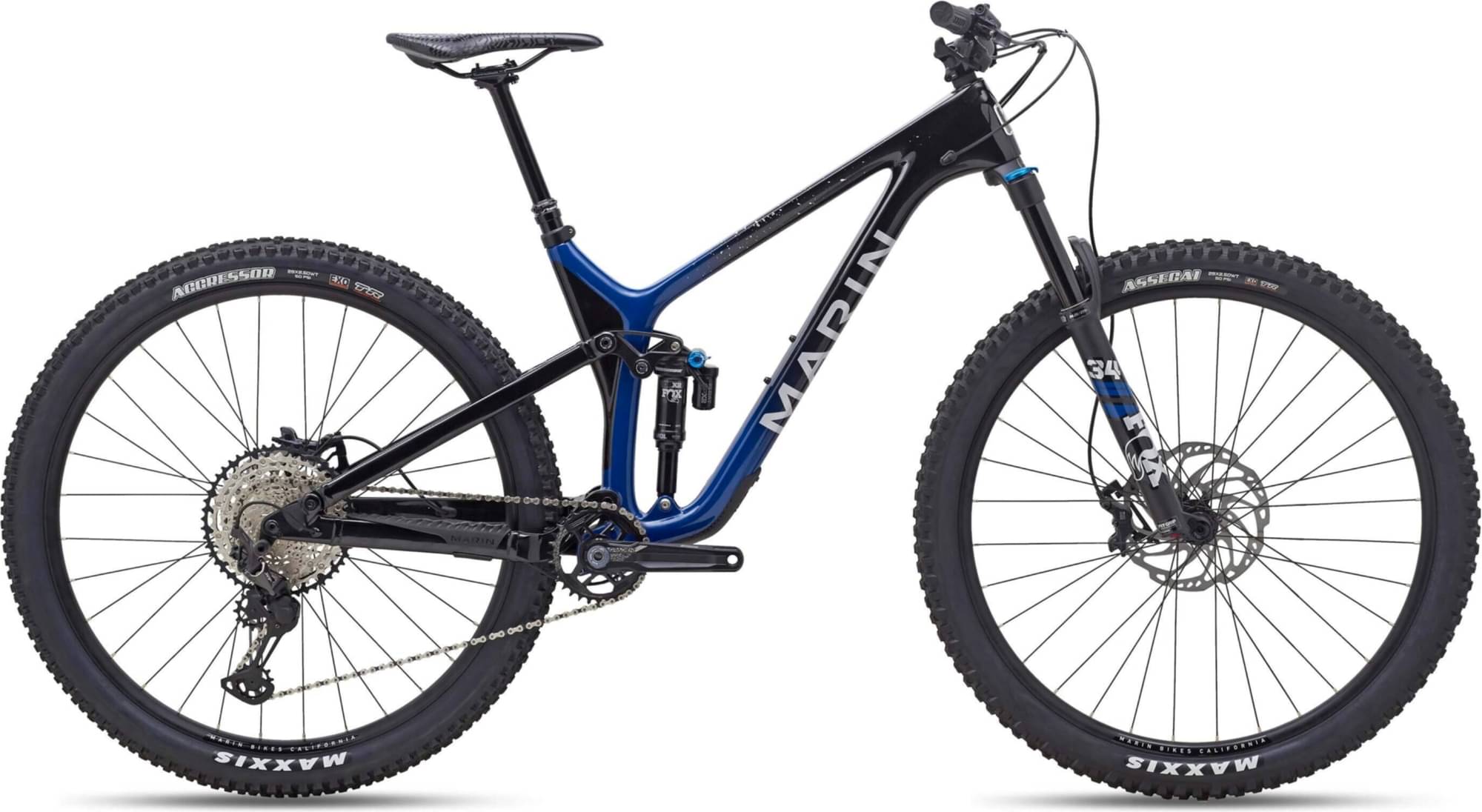

Marin Rift Zone 29 Carbon 2 2022
2022 Mountain
Estimate price |
4,379$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
Fox Performance 34 Float, 130mm Travel, 3-Position Micro Adjust Compression Adjustment, Rebound Adjustment, 110x15mm Kabolt Axle, 44mm Offset
Drivetrain
Rear Derailleur
Shimano XT, 12-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano SLX 12-Speed, I-Spec EV
Cassette
Shimano SLX M7100, 12-Speed, 10-51T
Crank
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Bottom Bracket
MEGAEVO BB, 73mm BSA Threaded
Chain
KMC X-12 Silver and Black
Pedals
-
Wheels
Front Hub
Shimano, 110x15mm, Disc, 32H
Rear Hub
Shimano, Microspline 148x12mm, Disc, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible
Tires
Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano SLX Hydraulic, I-Spec EV
Cockpit
Stem
Marin CNC Stem, 35mm Length, 35mm Bar Bore
Handlebar
Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back
Grips
Marin Single Clamp Locking
Headset
FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Trail Speed Concept Pro
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.27 mm | 1.19 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 736 mm | 763 mm | 790 mm | 829 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 122 mm |
| Stack | 609.6 mm | 614.15 mm | 618.7 mm | 623.25 mm |
| Reach | 437 mm | 462 mm | 487 mm | 522 mm |
| Top Tube Length | 587.24 mm | 613.36 mm | 639.51 mm | 675.65 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1165 mm | 1193 mm | 1220 mm | 1259 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 650 | 657 mm | 666 mm | 669 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 187 cm | 193 cm |
Model Overview
Rift Zone 29 Carbon 2 belongs to the Marin Rift model. There are 72 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Marin Rift Zone 29 1 2022 is the cheapest bike model and costs 1899$. Marin Rift Zone 29 Carbon XR 2022 is the most expensive one and costs 4859$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Marin Rift Zone 29 Carbon 2 price was 4379$. Comparing this to the average Trail bike price, we see that the price is 58.54% higher.
Overview of components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Rift Zone 29 Carbon 2 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Rift Zone 29 Carbon 2 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Rift Zone 29 Carbon 2. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
