Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike
-
Groupset Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-EN806, Internal 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Suspension Fork
RockShock Pike Base 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
Rear Shock
RockShox Deluxe Select+, Compreson and Rebound Adjustment, 210x50, 25xM8 Lower and Upper Mount
Drivetrain
Rear Derailleur
Shimano Deore, Direct Attachment, 11-Speed, SGS
Shift Levers
Shimano Deore, 11-Speed
Cassette
SunRace 11-Speed, 11-51T
Crank
Aluminum, 160mm Length, 38t Chainring
Chain
KMC X-10E, Silver
Pedals
Marin MTB Plastic
Wheels
Front Hub
Shimano MT-410B, 110x15mm, Centerlock Disc, 32H
Rear Hub
Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body
Rims
Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
Brakes
Brakes
TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor
Brake Levers
TRP Slate Evo
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock On
Headset
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin eMTB Saddle
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Motor & Battery
Motor
Shimano Steps EP6 Drive Unit, 250W, 85Nm
Battery
Shimano BT-EN806, Internal 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 348.5 mm | 348.5 mm | 348.5 mm | 348.5 mm |
| Front Center | 760 mm | 784 mm | 809 mm | 843 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 128 mm | 127 mm | 128 mm | 128 mm |
| Stack | 613.98 mm | 621.04 mm | 632.1 mm | 641.16 mm |
| Reach | 452 mm | 472 mm | 492 mm | 522 mm |
| Top Tube Length | 592.13 mm | 614.22 mm | 636.32 mm | 668.41 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 435 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1205 mm | 1229 mm | 1253 mm | 1287 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 700 | 703 mm | 716 mm | 726 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 187 cm | 193 cm |

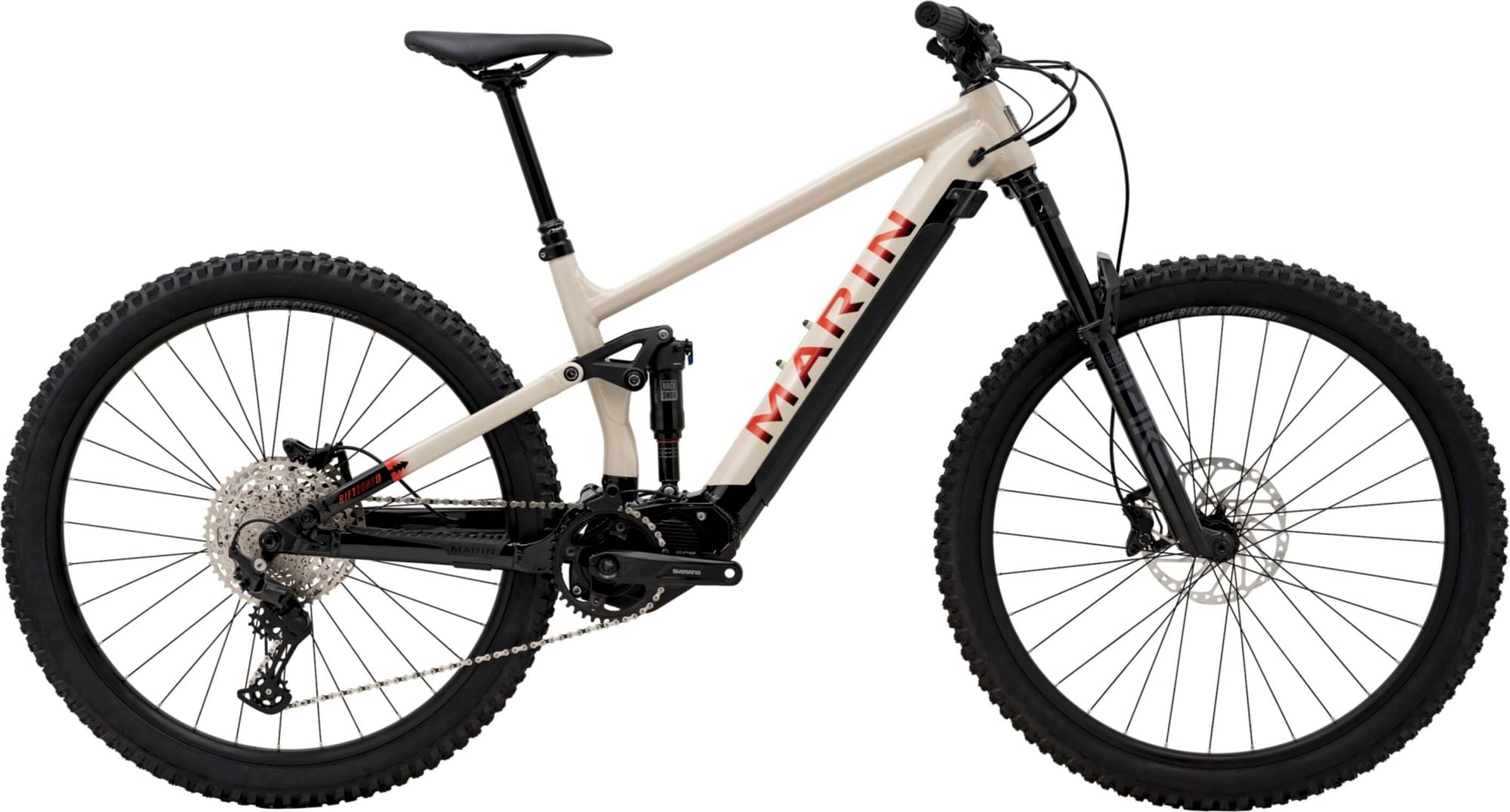

About this model
Rift Zone E1 belongs to the Marin E Rift model. 6 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Marin Rift Zone E 2023 has a starting price of 4499$. Marin Rift Zone E2 2023 on the other hand is the most expensive at 6299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Marin released this model in 2023, its price was 4999$. Doing a quick comparison, we notice that Rift Zone E1 price is 48.56% more expensive than the average cost of a Trail e-bike.
Overview of components
Fork
Marin Rift Zone E1 2023 e-bike is equipped with the RockShox Pike fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select+ rear shock model, which has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Rift Zone E1 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Rift Zone E1 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Marin model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
