Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
124cm - 142cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 24” Wheels, Disc Specific, 135mm Dropouts
Suspension Fork
RockShox Judy Silver TK, 100mm Travel, Solo Air, 110x15mm Maxle Stealth
Drivetrain
Rear Derailleur
MicroSHIFT Advent 9-Speed
Front Derailleur
-
Shift Levers
MicroSHIFT Advent 9-Speed
Cassette
MicroSHIFT 9-Speed, 11-46T
Crank
Forged Alloy, Narrow Wide 30T, 152mm
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Pedals
Kids Specific Nylon Pedal
Wheels
Front Hub
Forged Aluminum, 32H, Disc Specific
Rear Hub
Forged Aluminum, 32H, Disc Specific
Rims
Marin, Double Wall Alloy, 27mm Internal
Tires
Vee Tire Crown Gem, 24”x2.6”, Wire Bead
Brakes
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin Alloy, 35mm
Handlebar
Marin Riser, 31.8 clamp, 30mm Rise, 590mm Width
Grips
Marin MTB
Headset
FSA No. 57E
Seat
Saddle
Marin Kids MTB
Seatpost
Marin Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.56 mm |
| Bottom Bracket Height | 290 mm |
| Front Center | 661 mm |
| Rake | 42 mm |
| Stack | 546.5 mm |
| Reach | 351 mm |
| Top Tube Length | 495.8 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 321 mm |
| Head Tube Angle | 65 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 375 mm |
| Wheelbase | 1035 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 582 mm |
| Wheels | 24" |
| Rider Min Height | 124 cm |
| Rider Max Height | 142 cm |
Model Overview

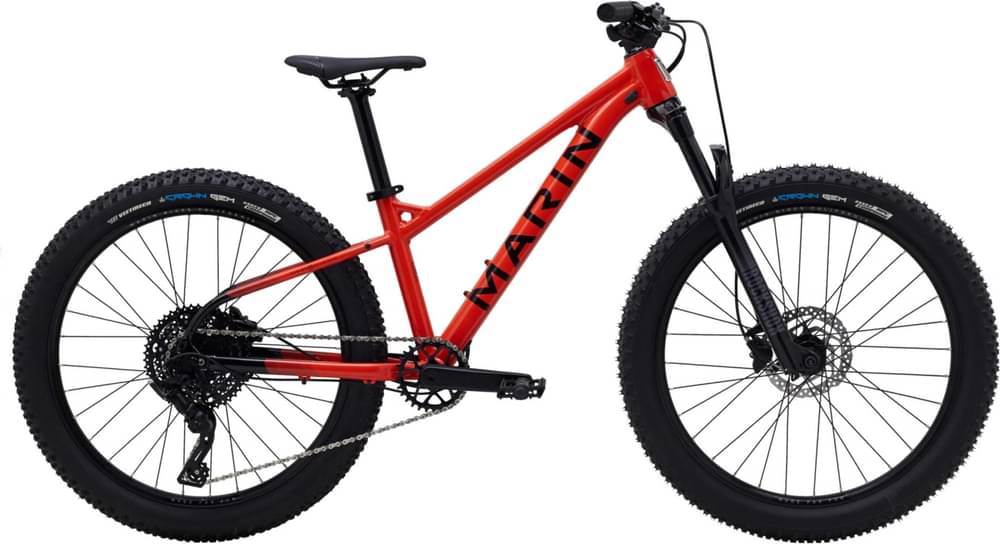

San Quentin 24 completes the Marin San Quentin model. Marin launched 47 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Marin San Quentin 20 2022 has a starting price of 749$. Marin San Quentin 3 2022 on the other hand is the most expensive at 2399$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Mountain bikes average price
According to our math, the average price for a trustworthy Mountain bike is 616$. However, this doesn’t mean that if you spend less money on a Mountain bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 1199$. Comparing the average cost of a Mountain bike to this one, you will see that San Quentin 24 price is 94.64% higher.
San Quentin 24 components
Fork
The San Quentin 24 comes factory-installed with the RockShox Judy Silver TK fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Marin San Quentin 24 2022, has a 24″ aluminum model. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Marin San Quentin 24 2022 is available in one size only. In short, make sure you double-check if it fits you.
