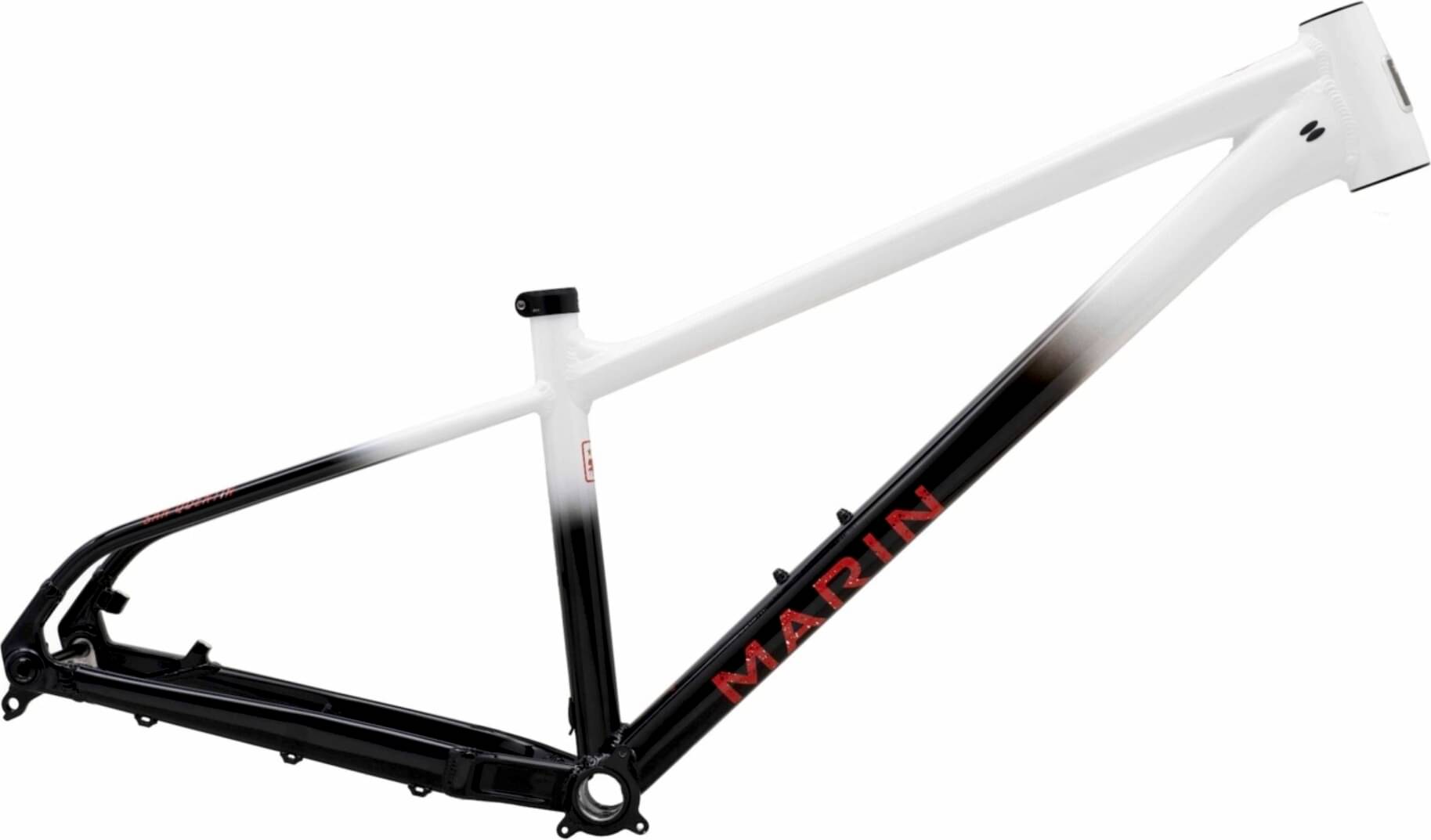

Marin San Quentin 27.5″ 3 Frame Kit 2022
2022 Mountain
Estimate price |
521$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 27.5"
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
164cm - 174cm
LG
171cm - 182cm
XL
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, External Brake, 12x148mm Thru-Axle, 73mm Threaded BB
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.39 mm | 1.35 mm | 1.27 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 753 mm | 783 mm | 808 mm | 840 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 613 mm | 617.5 mm | 626.5 mm | 631 mm |
| Reach | 417 mm | 445 mm | 465 mm | 495 mm |
| Top Tube Length | 559.7 mm | 588.7 mm | 610.8 mm | 641.8 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 310 mm | 340 mm | 375 mm | 414 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1168 mm | 1198 mm | 1223 mm | 1255 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 622 mm | 651 mm | 659 mm | 676 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 164 cm | 171 cm | 179 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 188 cm |
About this model
San Quentin 27.5″ 3 Frame Kit is part of the Marin San Quentin model. Marin released 47 frames variations of this model so far. You can easily view all of the Marin San Quentin frames models from 2022, here.
Model range prices
Marin San Quentin 27.5″ 3 Frame Kit 2022 is the cheapest frame model and costs 527$. Marin San Quentin 3 Frame Kit 2022 is the most expensive one and costs 549$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry frames average price
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Marin San Quentin 27.5″ 3 Frame Kit price was 527$. Comparing the average cost of a Crosscountry frame to this one, you will see that San Quentin 27.5″ 3 Frame Kit price is 220.49% smaller.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Sizes
Marin San Quentin 27.5″ 3 Frame Kit frame has 4 sizes, in the range of 157 cm – 188 cm (5.15 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
